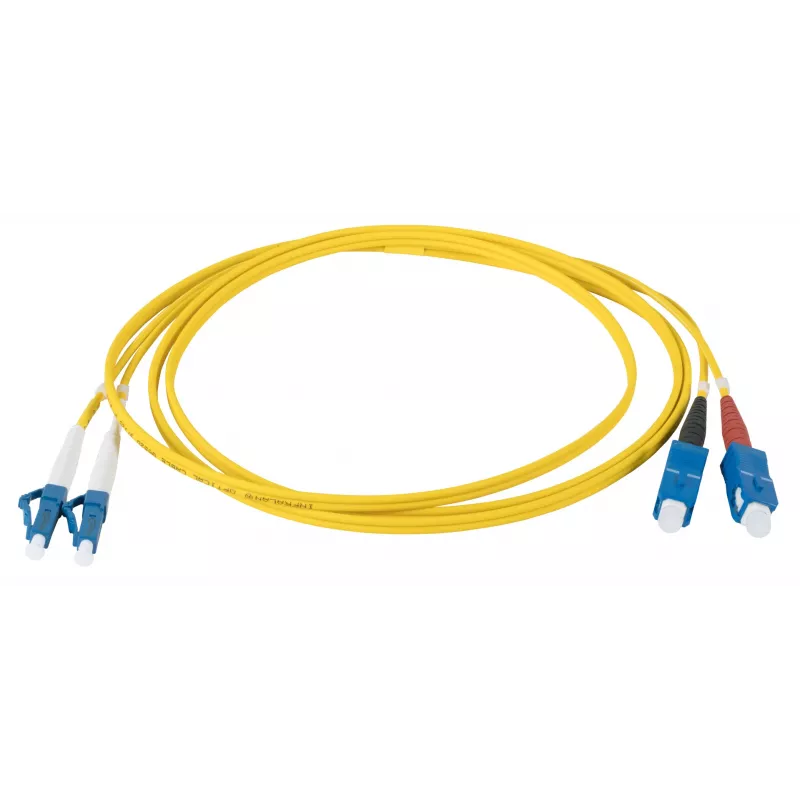

EFB Elektronik IPL-DR-LCUSCU-2-0300 Cavo patch in fibra ottica OS2 singlemode duplex, LC/UPC su SC/UPC, 3 m, LSZH, giallo

The EFB Elektronik IPL-DR-LCUSCU-2-0300 is a high-quality OS2 single-mode duplex fiber optic patch cable designed for reliable and high-speed data transmission in indoor networking environments. With a length of 3 meters and LC/UPC to SC/UPC connectors, this cable ensures low insertion loss and high return loss, making it ideal for demanding applications.

Advantages

This patch cable offers exceptional performance with insertion loss ≤ 0.3 dB and return loss ≥ 50 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety by reducing toxic fumes in case of fire. The duplex zipcord construction allows for easy handling and installation.

Suitable for

• Data center and server room connections
• Telecommunications and broadband networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) and storage area networks (SAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Type: OS2 (G.657.A1 / G.652.D)
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Length: 3 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (max): ≤ 0.3 dB
• Return Loss (min): ≥ 50 dB
• Operating Temperature: -20°C to 70°C
• Application Environment: Indoor
• Cable Construction: Duplex Zipcord
• Polish Type: UPC (Ultra Physical Contact)

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Pair with appropriate patch panels and transceivers for best results.
