MPO-PLUS (M) a LC cavo fanout OM3 12 fibre tipo B LSZH acqua 0,4 m MPOM12LCOM3-0,4

This MPO fanout cable delivers 12 OM3 multimode fibers with a maximum insertion loss of less than 0.35 dB on the MPO connector, ensuring reliable high-density connectivity.

Overview

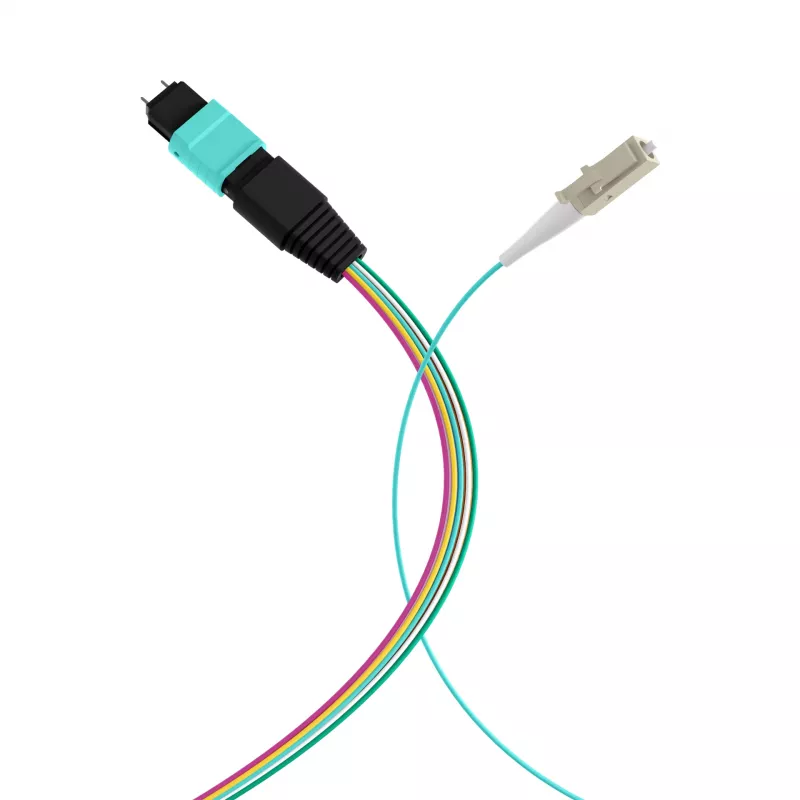

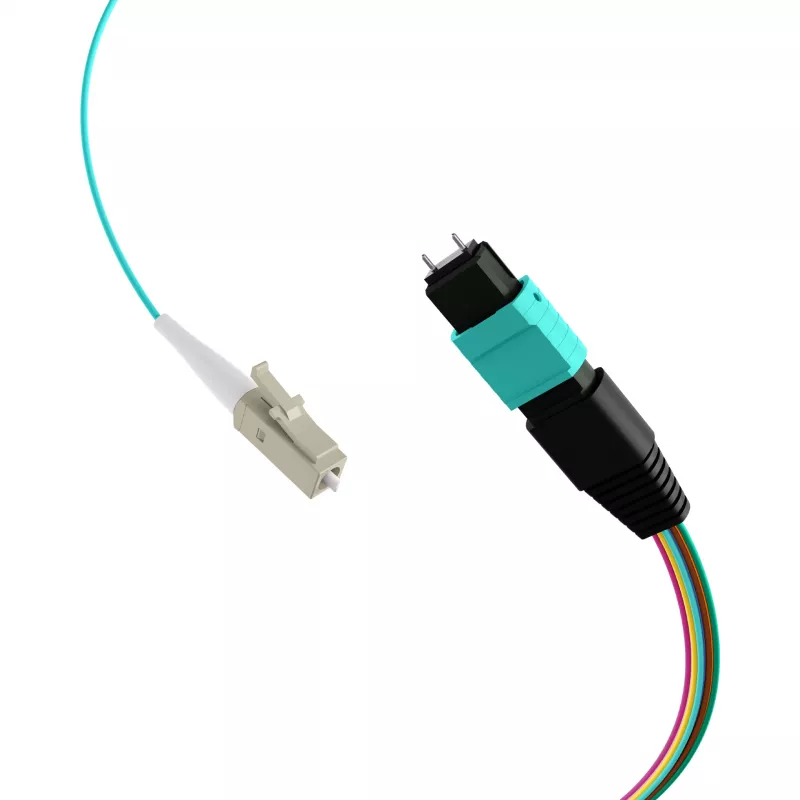

The EFB Elektronik MPOM12LCOM3-0,4 is a 0.4-meter MPO to LC fanout cable. It features an MPO-PLUS male connector on one end and six LC duplex connectors on the other, breaking out 12 fibers. The cable uses OM3 multimode fiber with a 50/125 µm core/cladding diameter and has a Type B polarity. The jacket is LSZH (Low Smoke Zero Halogen) in aqua, making it suitable for data centers, SANs, LANs, and other high-density cabling environments.

What stands out

• MPO-PLUS male connector with low insertion loss (< 0.35 dB)

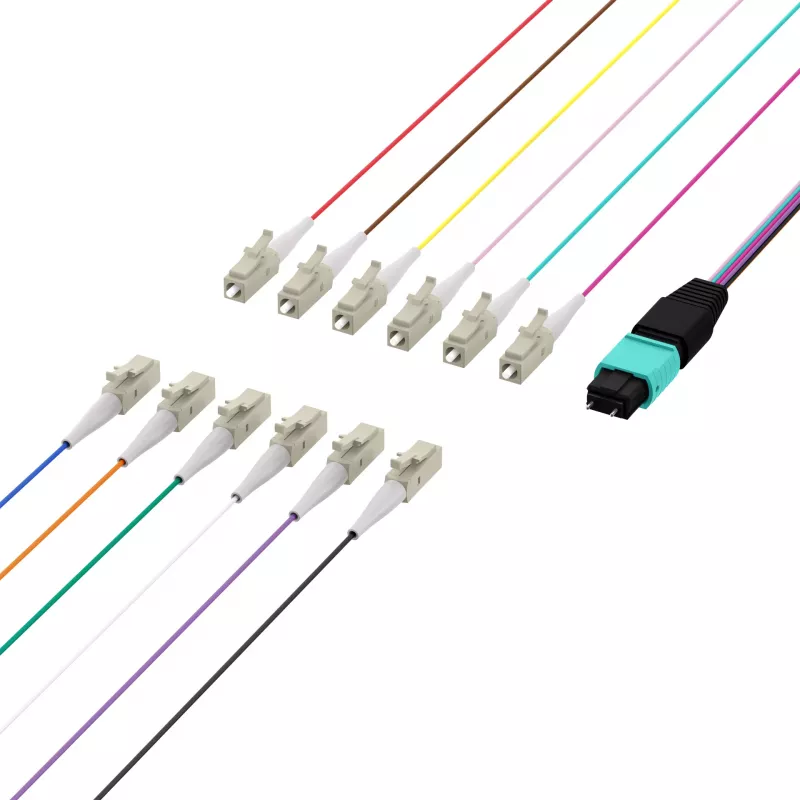

• 12 OM3 fibers broken out to 6 LC duplex connectors
• LSZH aqua jacket for safety in enclosed spaces
• Type B polarity for standard network configurations
• Short 0.4 m length ideal for patching within racks

Technical details

• Fiber type: OM3 multimode, 50/125 µm
• Connector A: MPO-PLUS male
• Connector B: LC duplex (6x)
• Polarity: Type B
• Jacket material: LSZH
• Jacket colour: Aqua
• Insertion loss (MPO): < 0.35 dB
• Insertion loss (LC): < 0.25 dB
• Return loss: > 20 dB
• Operating wavelengths: 850 nm / 1300 nm
• Attenuation at 850 nm: 3.5 dB/km
• Attenuation at 1300 nm: 1.5 dB/km
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Our verdict

With its low insertion loss and LSZH jacket, this fanout cable is a solid choice for high-density fiber patching in data centers and enterprise networks.
