EFB Elektronik MPOF08LCOM4-10 cavo trunk MPO-PLUS (F) su LC, OM4, 8 fibre, tipo B, LSZH, viola erica, 10 m

With a maximum bandwidth of 4700 MHz·km at 850 nm, this OM4 multimode trunk cable supports high-speed 40G/100G Ethernet links up to 10 meters.

Overview

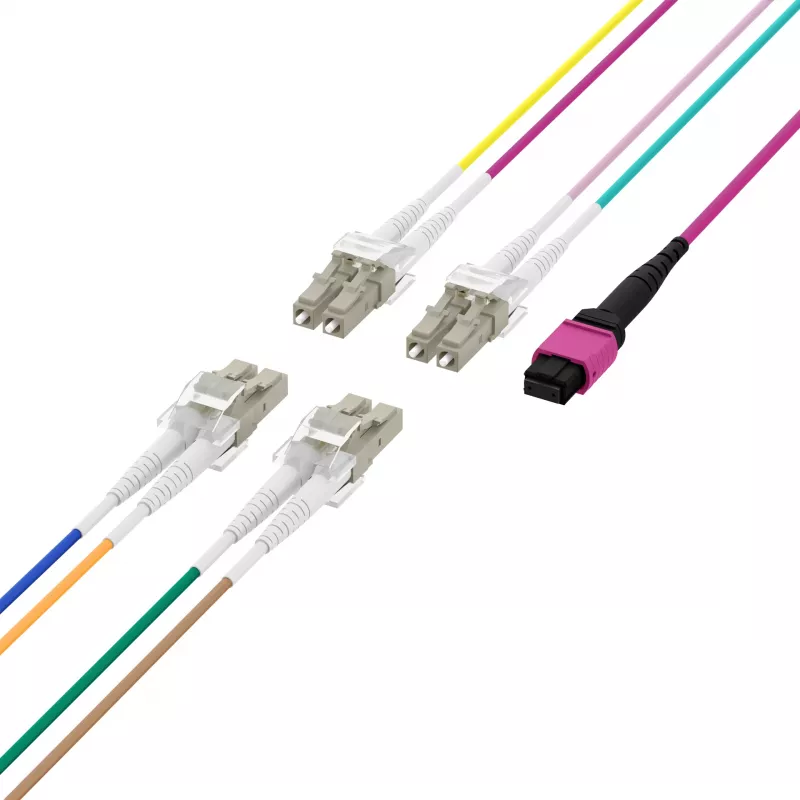

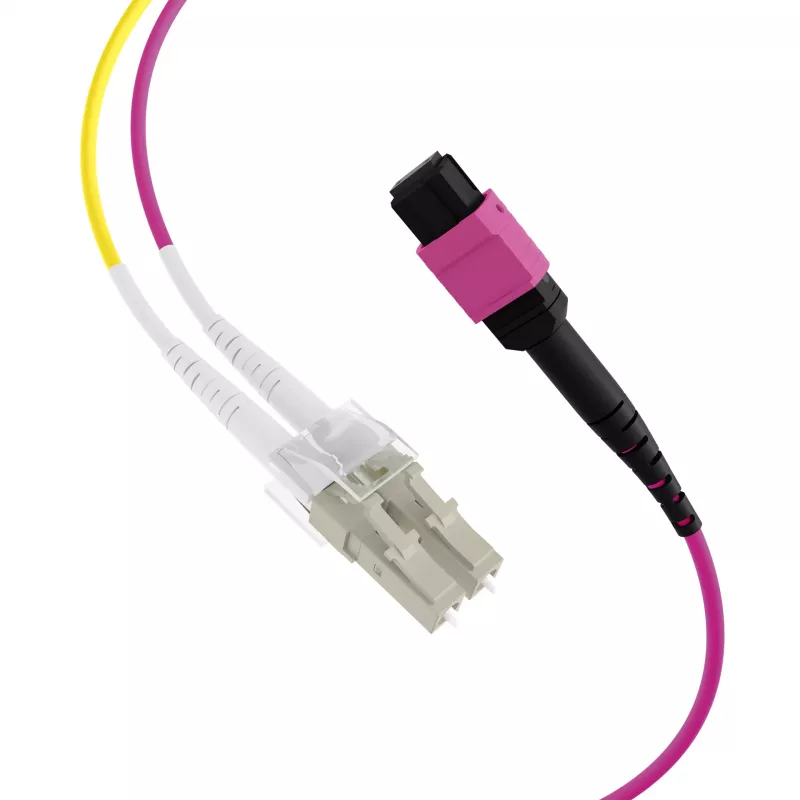

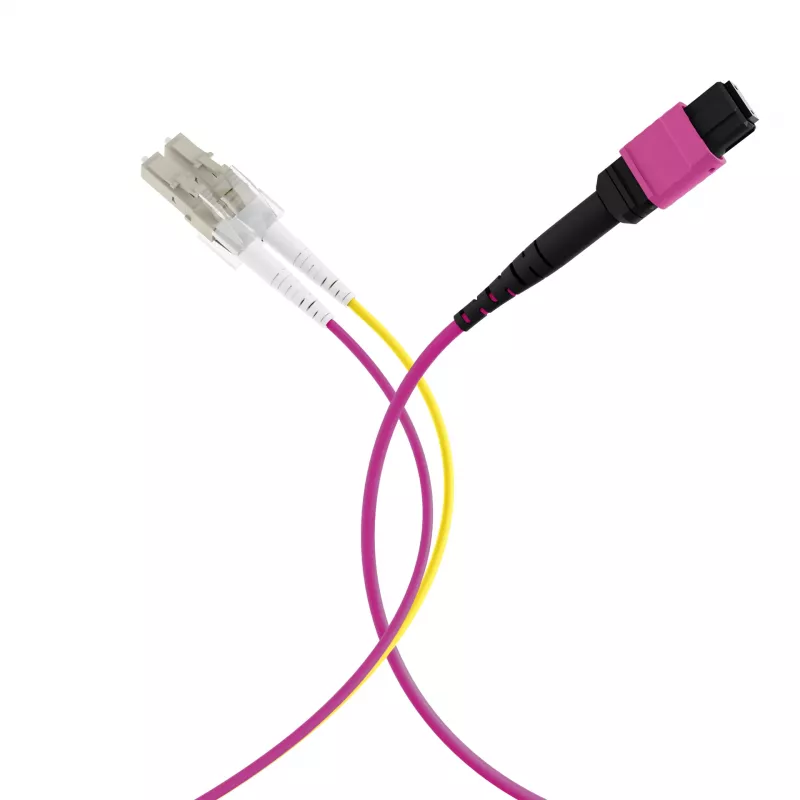

The EFB Elektronik MPOF08LCOM4-10 is a factory-terminated fiber optic trunk cable featuring an MPO-PLUS female connector on one end and four LC duplex connectors on the other. It contains 8 OM4 multimode fibers in a Type B polarity arrangement, ideal for structured cabling in data centers and SAN environments.

What stands out

• OM4 grade supports 40G/100G Ethernet applications
• Low insertion loss: ≤ 0.35 dB (MPO), ≤ 0.25 dB (LC)
• LSZH jacket in erika-violet for safety and easy identification
• Type B polarity for simple cross-over connectivity

Technical details

• Fiber type: Multimode OM4, 50/125 µm
• Fiber count: 8
• Connector A: MPO-PLUS female
• Connector B: 4x LC duplex
• Polarity: Type B
• Length: 10 m
• Jacket material: LSZH
• Jacket color: Erika-violet
• Operating temperature: -10°C to +60°C
• Return loss: ≥ 20 dB

Our verdict

A reliable, high-performance trunk cable for modern data center deployments, combining OM4 bandwidth with low insertion loss and a safe LSZH jacket.
