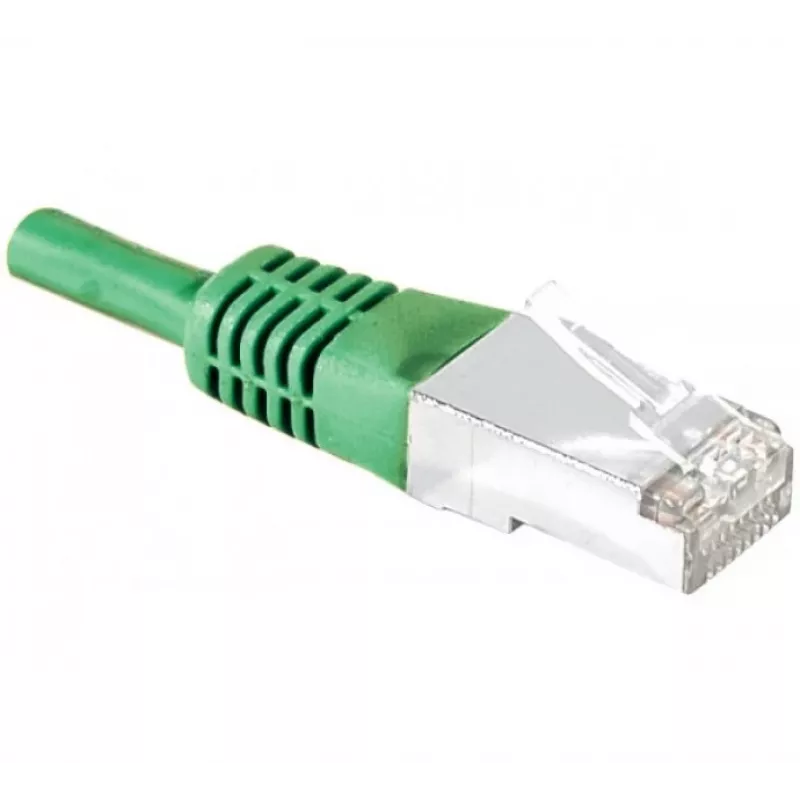

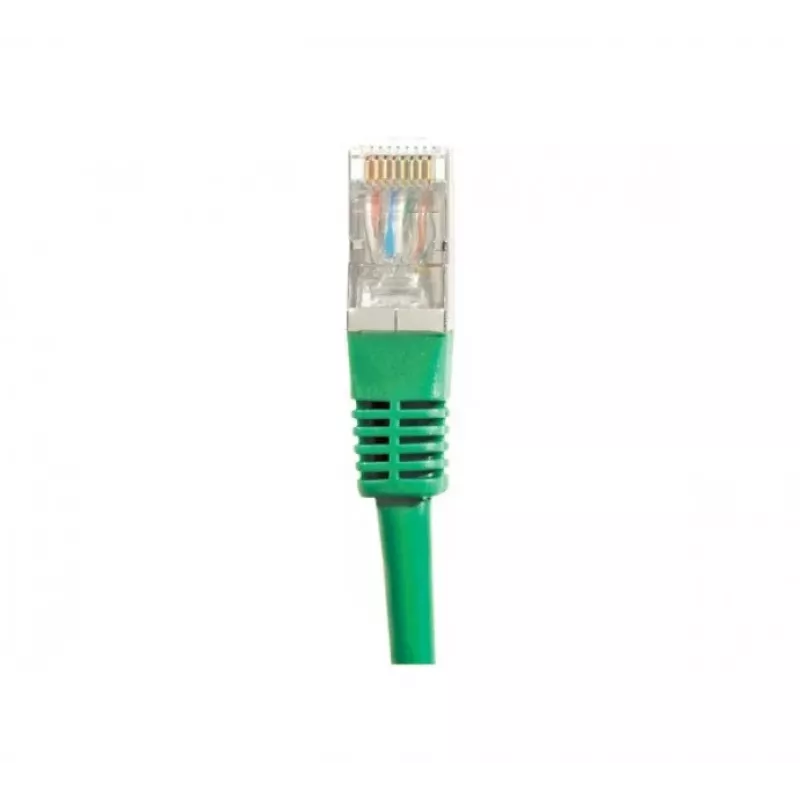

EXERTIS CONNECT Cavo patch Cat.6 S/FTP, PiMF, verde, 0,3 m, Slim Boot 856821

Cat.6 S/FTP patch cable with PiMF shielding and a slim boot, delivering reliable Gigabit Ethernet connectivity in a compact 0.3 m length. The green LSZH jacket and gold-plated RJ45 connectors ensure durable, high-performance links in dense installations.

Advantages

PiMF (Pairs in Metal Foil) plus overall braid shielding provides excellent protection against alien crosstalk and EMI. The slim boot design allows easy insertion in high-density patch panels and switches. LSZH jacket reduces toxic smoke and corrosive gases in case of fire, making it suitable for public buildings.

Suitable for

• Gigabit Ethernet connections in data centers and server rooms
• High-density patch panels and wall outlets
• Home and office networks requiring reliable shielded cabling

Key specifications

• Cable standard: Cat.6
• Shielding: S/FTP (PiMF)
• Length: 0.3 m
• Colour: Green
• Connector type: RJ45 (8P8C)
• Connector plating: Gold-plated (50µ)
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1 Gbps
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, 4PPoE compatible
• Halogen free: Yes
• Flame retardant: Yes

Recommendations

Ideal for short, high-density patching where space is limited and performance is critical.
