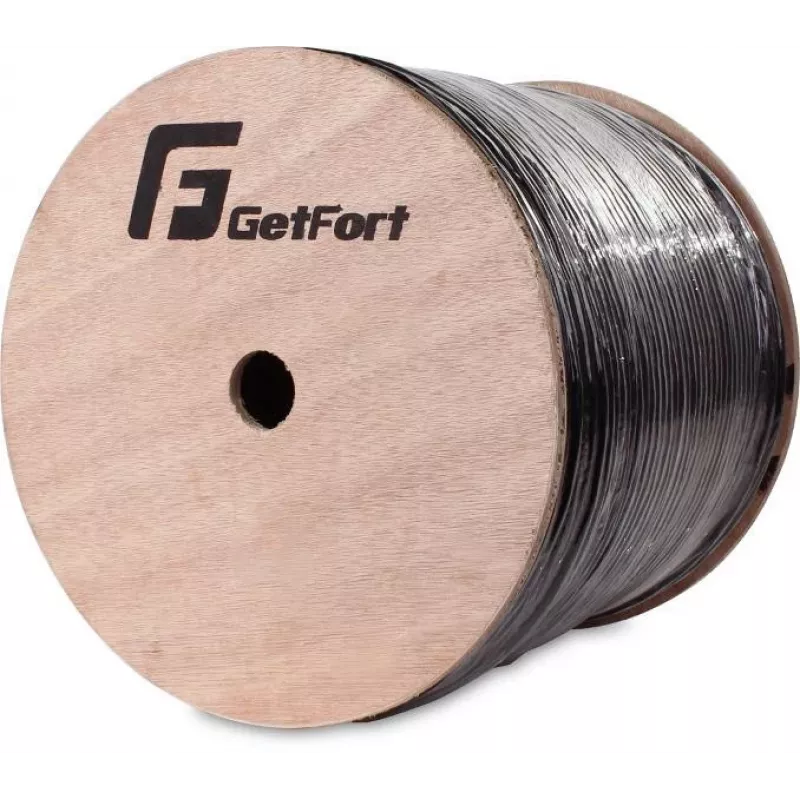

GETFORT GF-UNI-12J cavo in fibra ottica universale 12 fibre LSOH 1 m

With a bend-insensitive G.657.A1 single-mode core and a rugged LSOH jacket, this 12-fiber cable delivers reliable high-speed data transmission in tight spaces and harsh environments. At just 1 meter, it’s perfect for patching, splicing, or short indoor/outdoor runs where performance cannot be compromised.

Overview

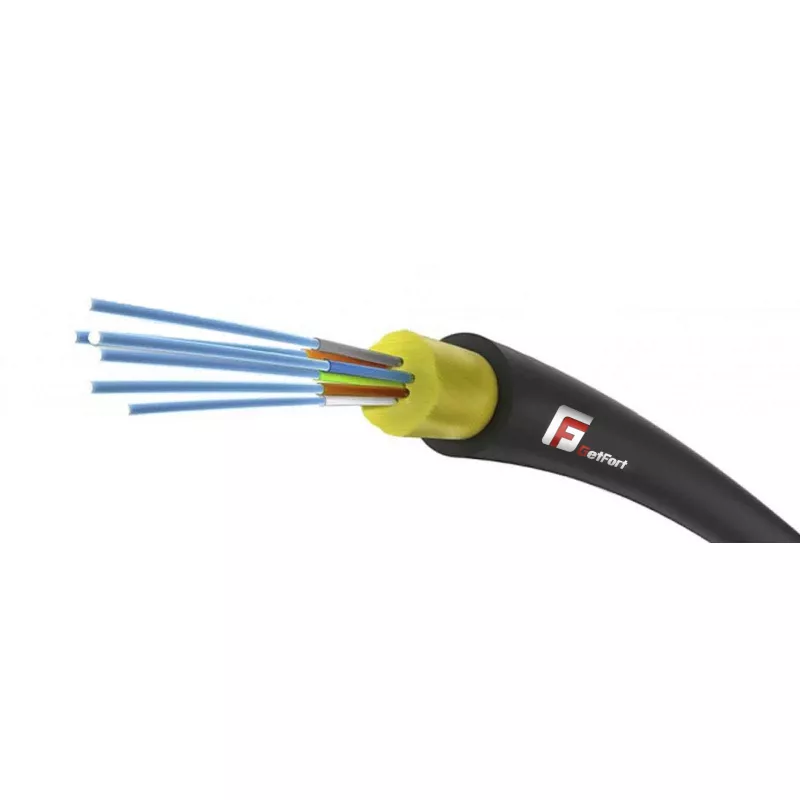

The GETFORT GF-UNI-12J is a universal fiber optic cable featuring 12 single-mode fibers compliant with ITU-T G.657.A1. The low-smoke zero-halogen (LSOH) jacket ensures safety in fire-sensitive areas, while the loose tube construction provides excellent mechanical protection. With an outer diameter of 8.0 mm, it balances flexibility and durability, making it suitable for both indoor and outdoor applications.

What stands out

• Bend-insensitive G.657.A1 fibers minimize signal loss even when bent around corners or in tight cable trays.
• LSOH jacket emits low smoke and no toxic halogens, ideal for public buildings, data centers, and industrial environments.
• Dry water-blocking technology prevents moisture ingress without messy gels, simplifying installation and maintenance.
• High tensile strength (1500 N) and crush resistance (1000 N/100mm) ensure reliability during installation and operation.
• Wide operating temperature range from -30°C to +70°C supports deployment in diverse climates.

Technical details

• Cable type: Universal fiber optic cable, loose tube
• Fiber count: 12
• Fiber type: Single-mode (OS2), ITU-T G.657.A1
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Outer diameter: 8.0 mm
• Length: 1 meter
• Attenuation: ≤0.35 dB/km @ 1310 nm, ≤0.22 dB/km @ 1550 nm
• Minimum bend radius: 160 mm (installation), 80 mm (operation)
• Tensile strength: 1500 N (installation)
• Crush resistance: 1000 N/100mm
• Operating temperature: -30°C to +70°C
• Installation temperature: -5°C to +50°C
• Storage temperature: -40°C to +70°C
• UV resistant: Yes
• Water blocking: Yes (dry)

Our verdict

The GF-UNI-12J is a robust, high-performance fiber optic cable that excels in demanding installations. Its bend-insensitive design and LSOH jacket make it a safe and reliable choice for both indoor and outdoor use, while the dry water-blocking and high mechanical strength ensure long-term durability. Whether for patching or short runs, this cable delivers consistent, low-attenuation performance.
