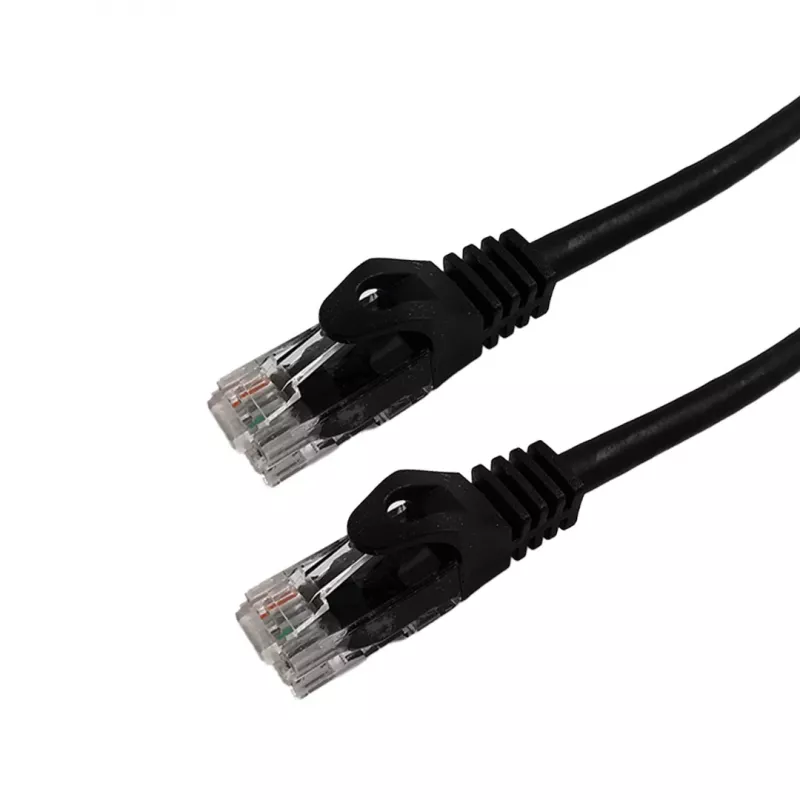

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 5,00m nero

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 5.00m Black is a high-performance Ethernet cable designed for reliable 10 Gigabit network connections. Constructed with pure copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers, office networks, and home setups. The LSZH jacket provides enhanced safety in case of fire, reducing toxic smoke and halogen emissions.

Advantages

This cable offers superior signal integrity and data transfer rates up to 10 Gbps, supporting bandwidths up to 500 MHz. The S/FTP shielding (overall braid and foil per pair) protects against electromagnetic interference, ensuring stable connections. The LSZH jacket makes it suitable for public and enclosed spaces where safety is paramount. Gold-plated RJ45 connectors (50µm) provide corrosion resistance and reliable contact.

Suitable for

• Data centers requiring high-speed, reliable cabling
• Office networks with high bandwidth demands
• Home networks for gaming, streaming, and large file transfers
• Any environment where safety and low smoke emission are critical

Key specifications

• Category: CAT6A
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Pure Copper (CU), 26 AWG stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Length: 5.0 meters
• Color: Black
• Connectors: RJ45 Male to RJ45 Male with gold-plated contacts
• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Number of Pairs: 4 twisted pairs
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is backward compatible with CAT6, CAT5e, and CAT5 networks.
