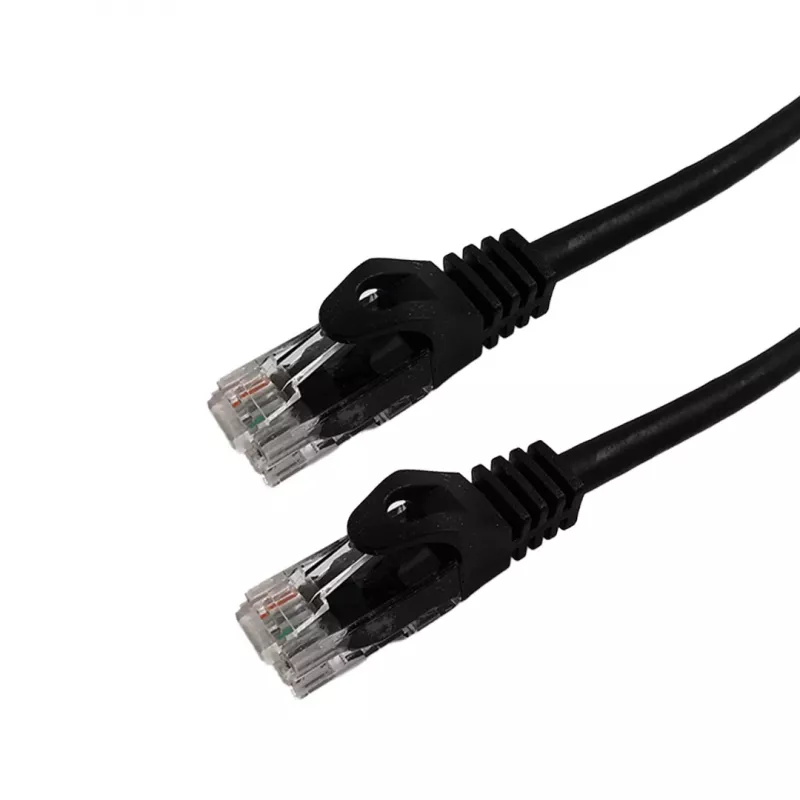

Grafenthal Cavo patch Ethernet CAT6A U/UTP LSZH 0,5m nero

The Grafenthal CAT6A U/UTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections in data centers, offices, and LAN environments. With a length of 0.5 meters and a sleek black jacket, this cable ensures fast data transfer and minimal signal interference.

Advantages

This patch cable offers superior performance with 500 MHz bandwidth and supports data transfer rates up to 10 Gbps. The U/UTP (unshielded twisted pair) design reduces crosstalk, while the 100% copper conductors ensure excellent conductivity. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by emitting low smoke and no toxic halogen in case of fire.

Suitable for

• Connecting network devices such as computers, switches, routers, and patch panels
• Data center cabling infrastructure
• Office and home network setups requiring high-speed data transfer

Key specifications

• Cable Type: Ethernet Patch Cable
• Cable Category: CAT6A (Category 6a)
• Shielding Type: U/UTP (Unshielded/Unshielded Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 0.5 meters
• Cable Color: Black
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG (Stranded)
• Number of Pairs: 4 Twisted Pairs
• Connector Plating: Gold-plated contacts
• Compliance: RoHS, CE
• Application: Local Area Network (LAN), Data Center, Office
• Operating Temperature: -20°C to 60°C
• Fire Safety Standard: IEC 60332-1 (LSZH)
• Compatibility: Backward compatible with Cat6, Cat5e, Cat5

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid physical damage and maintain signal integrity.
