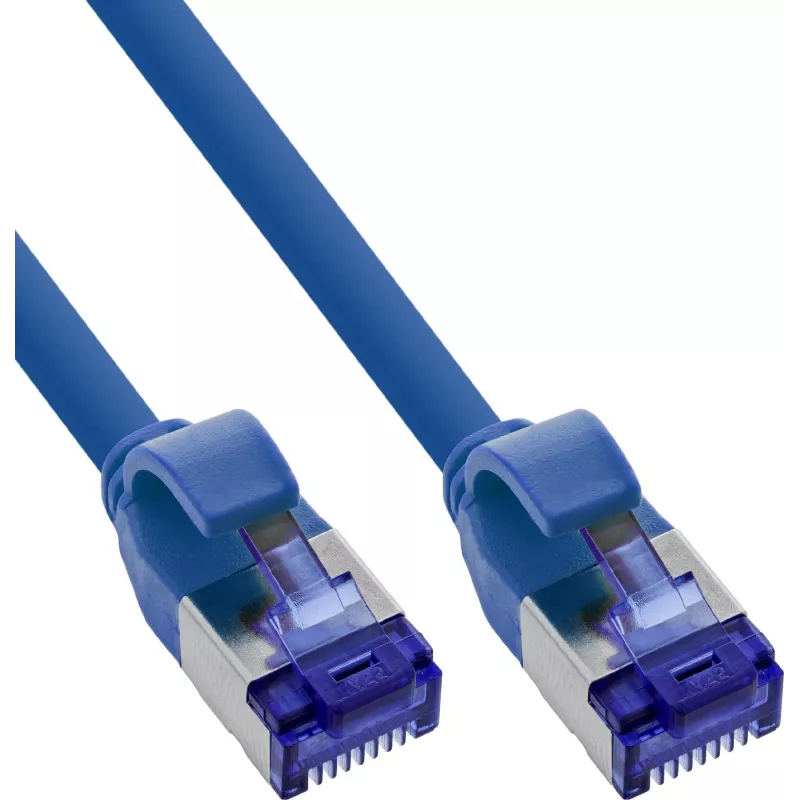

INLINE B-74902B confezione da 90 pz. cavo patch Slim Cat.6A S/FTP LSZH, 2 m, blu

Experience 10 Gigabit Ethernet performance with a slim, halogen-free design in this 90-pack of blue 2m Cat.6A S/FTP patch cables. Each cable is engineered for high-density environments where space and safety are critical.

Overview

The INLINE B-74902B bulk pack includes 90 slim Cat.6A patch cables, each 2 meters long, in a professional blue colour. The S/FTP shielding (braided overall shield plus foil around each twisted pair) provides superior protection against electromagnetic interference (EMI) and crosstalk, ensuring reliable 10GBASE-T transmission up to 500 MHz. The LSZH (Low Smoke Zero Halogen) jacket makes these cables suitable for public buildings, data centres, and any area with strict fire safety regulations. The slim design (approximately 3.8–4.5 mm diameter) reduces cable bulk, improves airflow in racks, and simplifies cable management in high-density patching fields.

What stands out

• 10 Gigabit Ethernet support with 500 MHz bandwidth for demanding network applications
• S/FTP shielding with PiMF (pairs in metal foil) and overall braid for maximum EMI immunity
• LSZH jacket: low smoke emission and zero halogen, meeting IEC 60332-1, IEC 61034, and IEC 60754
• Slim cable diameter (approx. 3.8–4.5 mm) saves space and improves airflow in racks
• Gold-plated RJ45 connectors (50µm) with molded snagless boots for durability and easy insertion
• Bulk pack of 90 cables – ideal for large installations, data centres, and IT infrastructure projects

Technical details

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (Screened Foiled Twisted Pair), PiMF, braided overall shield
• Length: 2 m per cable
• Colour: Blue
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Conductor: Copper, AWG 28/7 stranded
• Connector: RJ45 (8P8C), gold-plated 50µm, molded snagless boot
• Wiring: TIA/EIA 568B
• Data rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Cable diameter: approx. 3.8–4.5 mm (slim)
• Flammability: IEC 60332-1, IEC 61034, IEC 60754
• Certifications: RoHS, REACH
• Pack quantity: 90 cables

Our verdict

For high-density network installations requiring top-tier performance and safety, this 90-pack of slim Cat.6A S/FTP LSZH cables delivers exceptional value. The combination of 10Gbps speed, robust shielding, and halogen-free construction makes it a reliable choice for modern data centres and enterprise environments.
