Kaiser Elektro 1092-90 Scatola di collegamento apparecchi bianco IPX2 240 mm 87 mm 142 mm

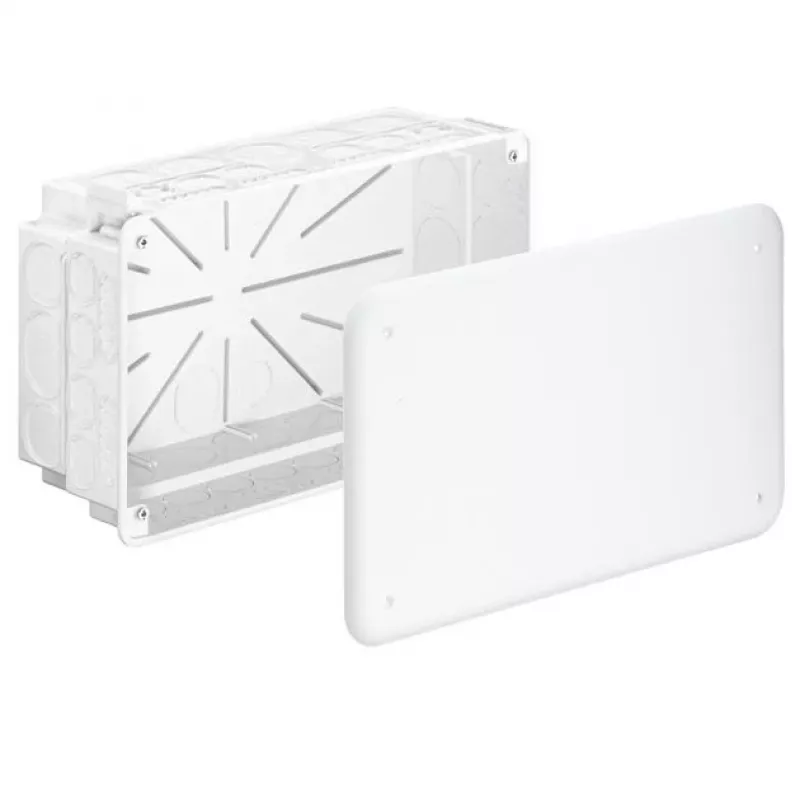

The Kaiser Elektro 1092-90 Device Connection Box is a high-quality cavity wall / flush-mounted junction box designed for secure electrical device connections. Manufactured from durable polypropylene (PP), this box offers excellent halogen-free and flame-retardant properties, ensuring safety and reliability in various installations.

Advantages

This connection box features a snap-on lid for easy access and secure closure. With 8 pre-punched cable entries compatible with M20/M25 conduits, it provides flexibility for cable routing. The IPX2 protection rating safeguards against dripping water, making it suitable for indoor use. Its compact dimensions (240 x 87 x 142 mm) allow for installation in confined spaces.

Suitable for

• Electrical device connections in cavity walls
• Flush-mounted installations in residential and commercial buildings
• Use with M20/M25 conduit systems

Key specifications

• Product Type: Device Connection Box
• Mounting Type: Cavity Wall / Flush-mounted
• Material: Polypropylene (PP)
• Color: White
• IP Protection Class: IPX2
• External Dimensions: 240 mm (L) x 87 mm (W) x 142 mm (H)
• Cable Entries: 8 (pre-punched)
• Conduit Compatibility: M20 / M25
• Halogen-free: Yes
• Flame Retardant: Yes
• Rated Insulation Voltage: 400 V
• Temperature Range: -5 °C to +60 °C
• Standard Compliance: DIN EN 60670-1, DIN EN 60670-22

Recommendations

For optimal installation, use appropriate conduit fittings and ensure the box is securely mounted. Always follow local electrical codes and standards.
