KONTAK-SIMON Simon 54 Modulo interruttore per tapparella, nero opaco, pulsante, blocco elettrico, morsetti a molla, 10A

Control your roller blinds with precision using the KONTAK-SIMON Simon 54 shutter switch module. Rated at 10A and 250V AC, this flush-mounted unit delivers reliable, safe operation for residential and commercial installations.

Overview

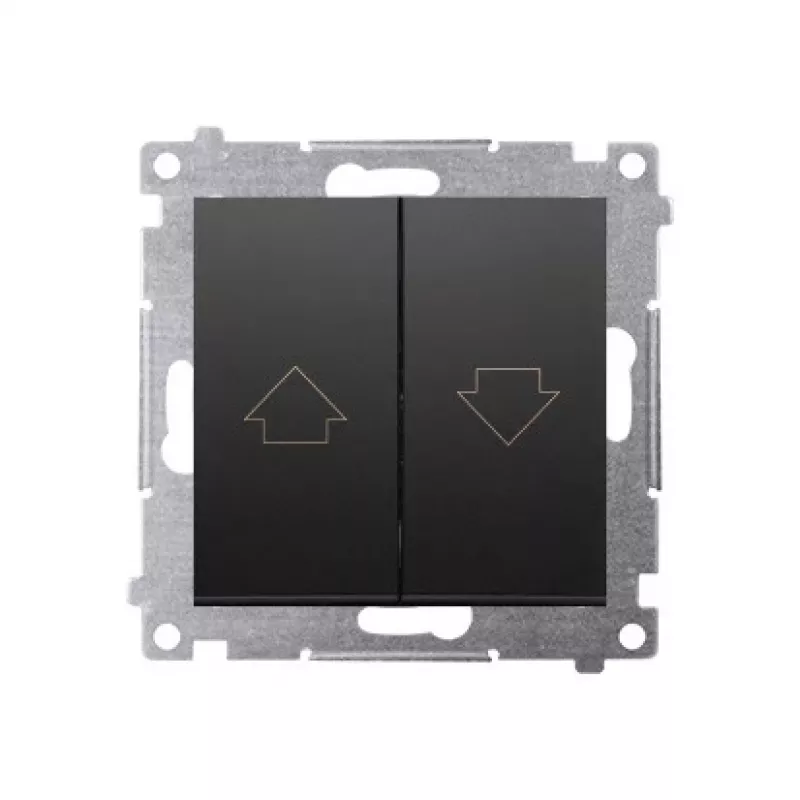

The Simon 54 series is renowned for its refined aesthetics and robust build. This module features an elegant black matt finish that seamlessly integrates with Simon 54 frames. The push-button mechanism offers momentary control for up/down movement, while the built-in electrical interlock prevents simultaneous activation of both coils, protecting your motorised blinds from damage.

What stands out

• Electrical interlock ensures safe, conflict-free switching
• Spring terminals allow quick, tool-less wiring — simply insert and lock
• Embossed up/down arrows provide clear visual guidance
• Compact 1-module design fits standard flush-mount boxes

Technical details

• Operating voltage: 250V AC
• Rated current: 10A
• Connection: 3 spring terminals (L, Up, Down)
• IP rating: IP20
• Operating temperature: -5°C to +35°C
• Material: Thermoplastic
• Certification: CE

Our verdict

For installer and homeowner alike, this Simon 54 shutter module delivers the perfect balance of safety, simplicity, and style. The electrical interlock and spring terminals make it a dependable choice for any modern blind-control system.
