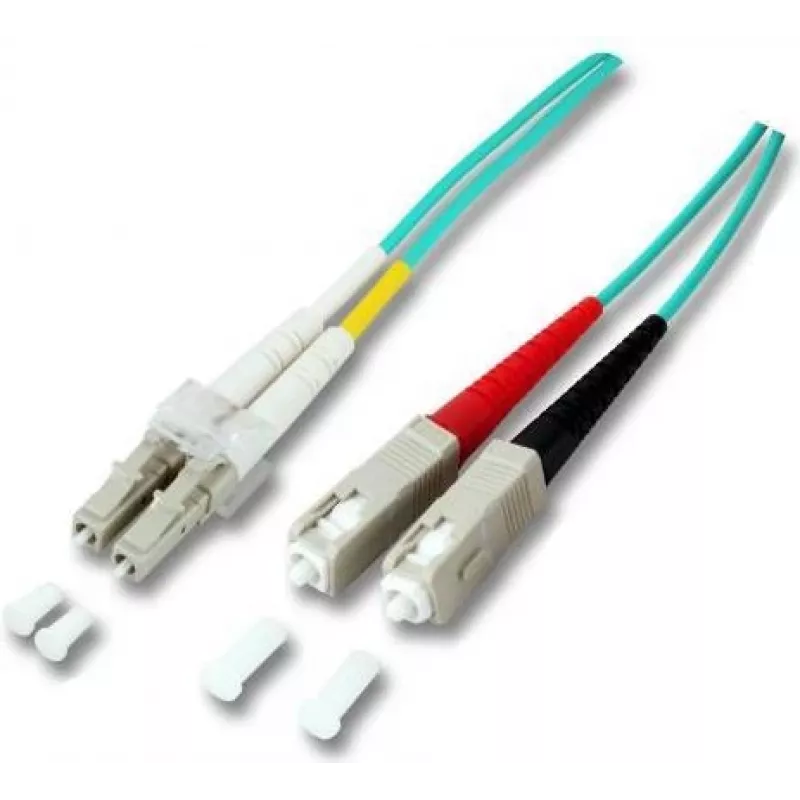

Lightwin LDP-50 LC-SC 20.0 OM3 Cavo patch in fibra ottica 20 m blu

The Lightwin LDP-50 LC-SC 20.0 OM3 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 20 meters and OM3 multimode fiber, it supports 10 Gbps up to 300 meters and is optimized for 40/100 Gbps applications up to 100 meters. The cable features LC to SC duplex connectors with PC polish, ensuring low insertion loss and high return loss. Its blue LSZH jacket provides durability and safety, making it ideal for data centers, SANs, and LANs.

Advantages

This cable offers exceptional bandwidth and speed, supporting next-generation network standards. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety. The duplex zipcord construction allows easy routing and installation. With VCSEL optimization, it ensures efficient performance in high-speed networks.

Suitable for

• Data centers requiring high-density cabling
• Storage Area Networks (SANs)
• Local Area Networks (LANs) with 10GbE, 40GbE, or 100GbE
• Telecommunications and enterprise networks

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode (OM3)
• Core/Cladding: 50/125 µm
• Connectors: LC Duplex to SC Duplex
• Connector Polish: PC
• Length: 20 m
• Jacket Material: LSZH
• Jacket Color: Blue
• Data Rate: Up to 10 Gbps (300m), 40/100 Gbps (100m)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, pair this cable with compatible OM3 transceivers and ensure proper handling to maintain low insertion loss. Ideal for structured cabling systems requiring high bandwidth and reliability.
