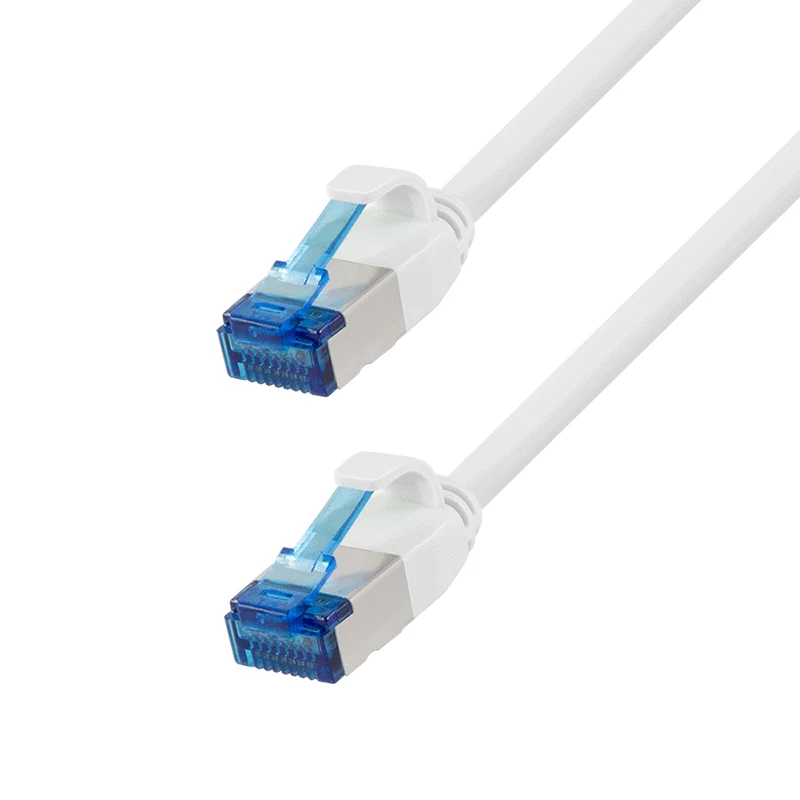

LogiLink cavo patch Cat.6A Slim S/FTP LSZH, bianco, 5 m, SlimLine

High-performance Cat.6A patch cable with slim design, ideal for dense network installations. Supports 10 Gigabit Ethernet with reliable S/FTP shielding and LSZH jacket.

Advantages

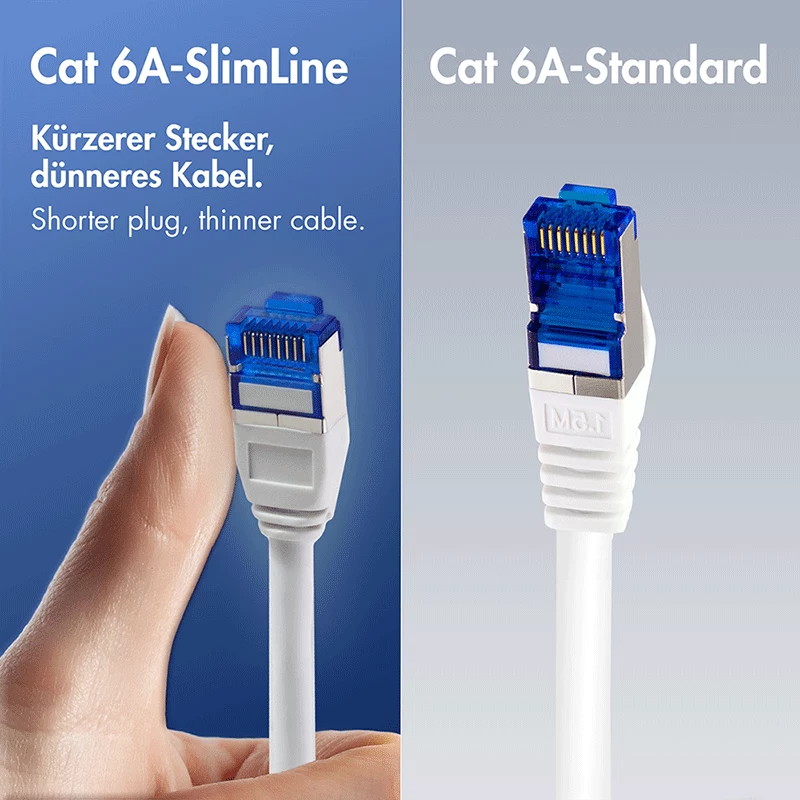

Ultra-slim 3.8mm outer diameter saves space in racks and cable ducts. Gold-plated contacts ensure corrosion resistance and low contact resistance. LSZH jacket emits low smoke and zero halogen in case of fire.

Suitable for

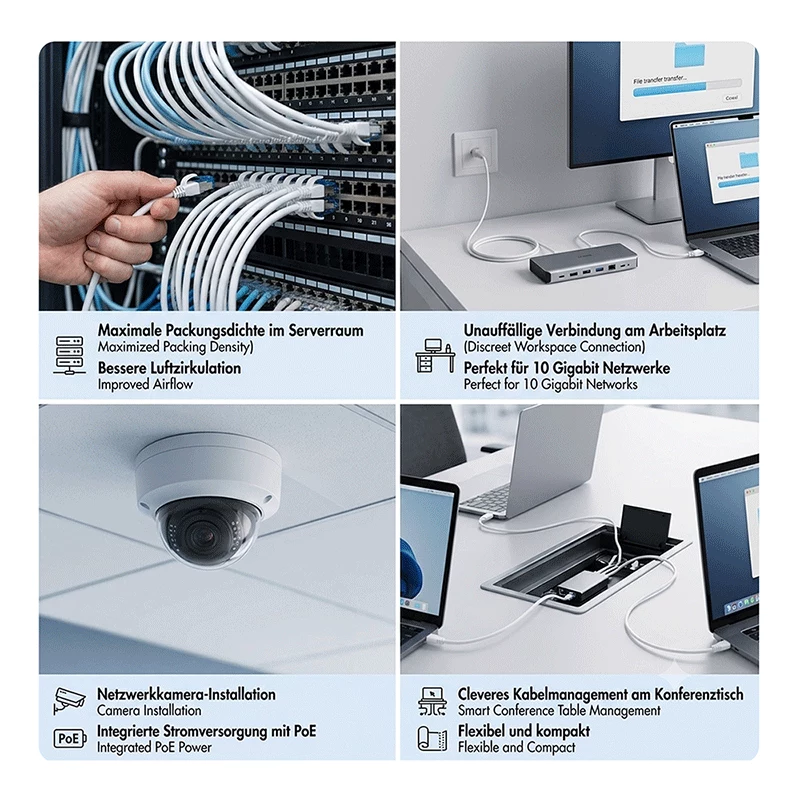

• Data centers and server rooms
• Office network installations
• 10GBASE-T Ethernet applications
• High-density patch panels

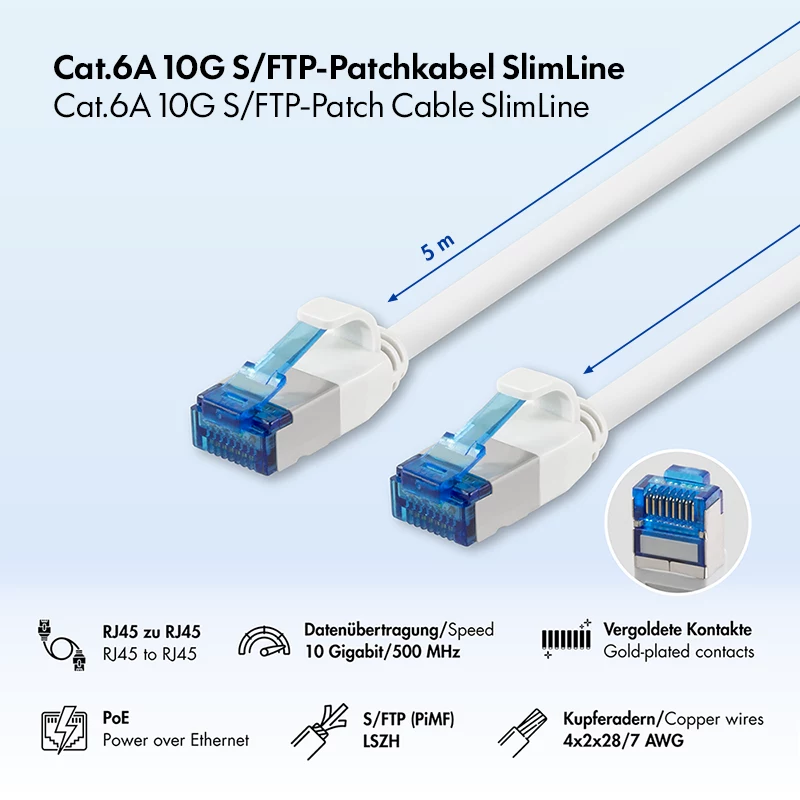

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF + overall braid)
• Length: 5.0 m
• Colour: White
• Connectors: RJ45 male to RJ45 male, gold-plated
• Conductor: 30 AWG stranded copper
• Bandwidth: up to 500 MHz
• Data rate: 10 Gbps
• Jacket: LSZH
• Outer diameter: approx. 3.8 mm
• Wiring: TIA/EIA 568B
• Operating temperature: -20°C to +60°C

Recommendations

For optimal performance, pair with Cat.6A shielded patch panels and equipment. Avoid sharp bends; minimum bend radius is 4x cable diameter.
