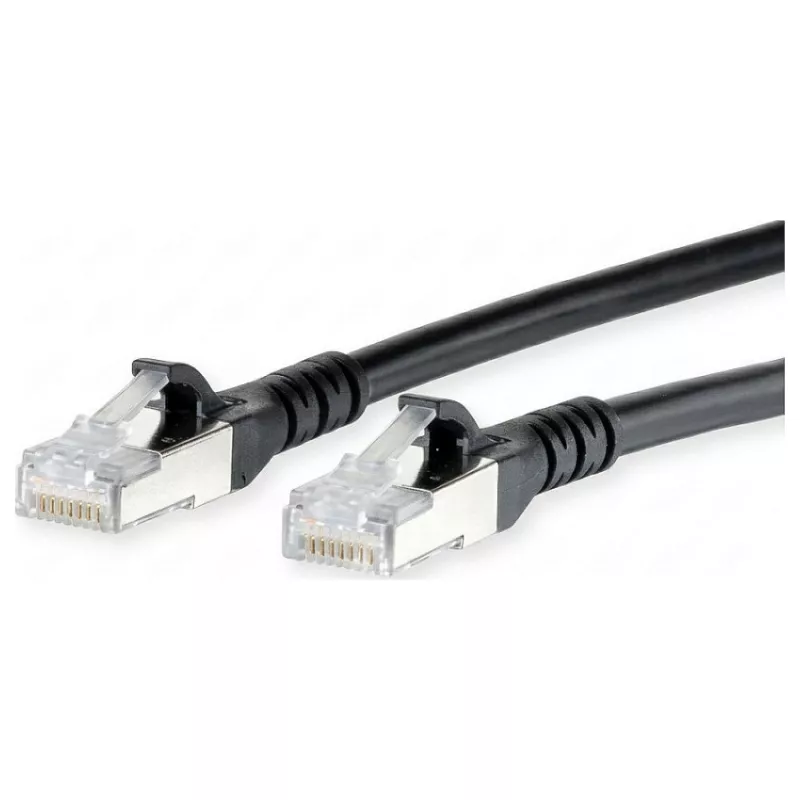

METZ CONNECT cavo patch Cat.6A S/FTP AWG26 LSZH nero 60m

The METZ CONNECT Patch Cable Cat.6A is a high-performance network cable designed for demanding data center and enterprise LAN environments. With a length of 60 meters, it supports 10 Gigabit Ethernet (10GBASE-T) over the full distance, ensuring reliable high-speed connectivity. The cable features S/FTP shielding (pairs in metal foil) to minimize electromagnetic interference, and a LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces.

Advantages

This patch cable offers exceptional signal integrity and crosstalk protection thanks to its S/FTP construction and gold-plated RJ45 connectors. The AWG26 stranded copper conductors provide flexibility while maintaining performance. It is fully compliant with TIA/EIA-568B wiring standard and supports PoE, PoE+, and PoE++ for powering devices like IP cameras and wireless access points.

Suitable for

• Data centers and server rooms
• Enterprise local area networks (LAN)
• 10GBASE-T Ethernet networks
• High-bandwidth applications requiring 500 MHz bandwidth
• Installations requiring low smoke and halogen-free materials

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Augmented Category 6)
• Length: 60 meters
• Color: Black
• Conductor Gauge: AWG 26
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Connector Type: RJ45 Male to RJ45 Male
• Shielding Type: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Conductor Material: Copper
• Cable Construction: Stranded
• Wiring Standard: TIA/EIA-568B
• PoE Support: Yes (PoE, PoE+, PoE++)
• Number of Pairs: 4
• Connector Plating: Gold-plated
• Compliance: RoHS, REACH

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat.6A patch panels and switches. Ensure proper cable management to maintain bend radius and avoid signal degradation.
