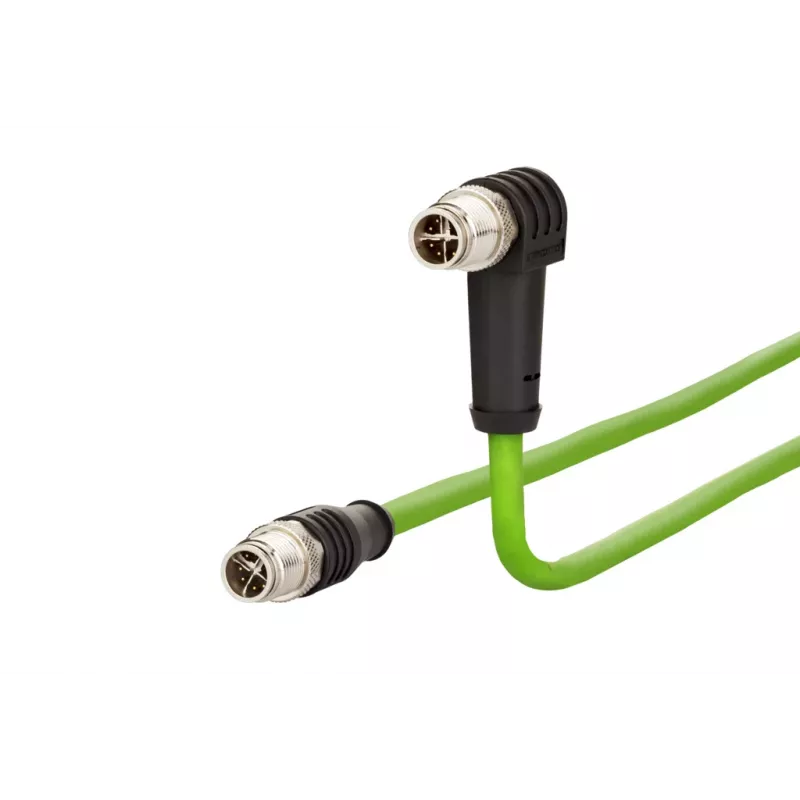

METZ CONNECT cavo patch M12 codifica X 1 m Cat.6A S/FTP PUR verde 142M2X1A010

The METZ CONNECT 142M2X1A010 is a high-performance M12 X-coded patch cable designed for industrial Ethernet applications. With a length of 1 meter and Cat.6A certification, it supports data rates up to 10 Gigabit Ethernet, making it ideal for PROFINET and EtherCAT networks. The cable features S/FTP shielding (PiMF) for excellent electromagnetic compatibility and a robust PUR jacket in green (RAL 6018) for durability in harsh environments.

Advantages

This cable offers reliable, high-speed data transmission in industrial settings. Its M12 X-coded connectors ensure secure mating with IP67 protection, while the PUR jacket provides resistance to oil, UV, and mechanical stress. The stranded copper conductors (AWG 26/7) offer flexibility for tight installations.

Suitable for

• Industrial Ethernet networks (PROFINET, EtherCAT)
• Automation and control systems
• Machine-to-machine communication
• Harsh environments requiring IP67 and oil resistance

Key specifications

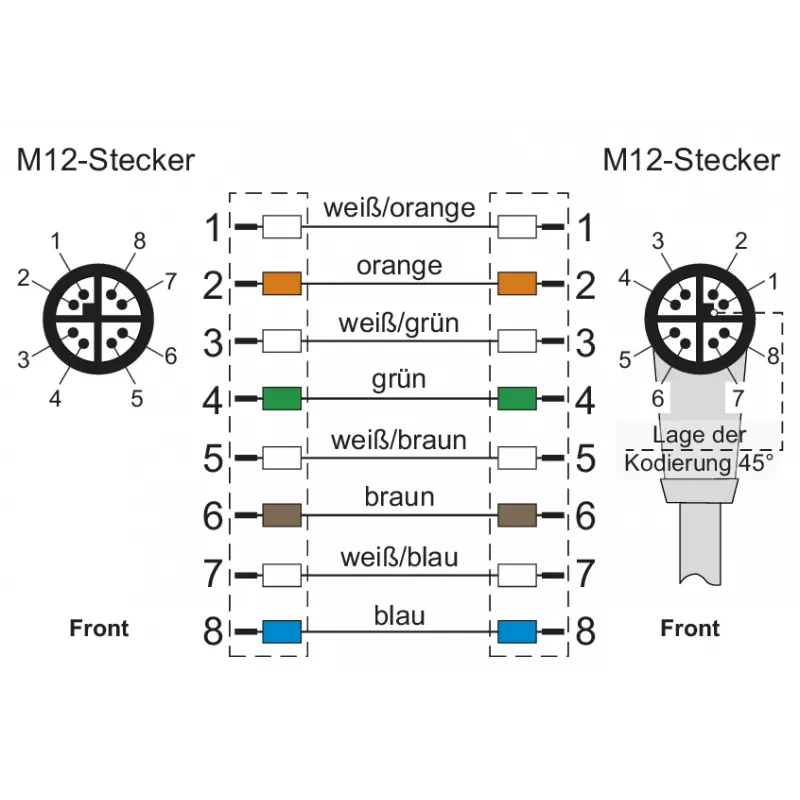

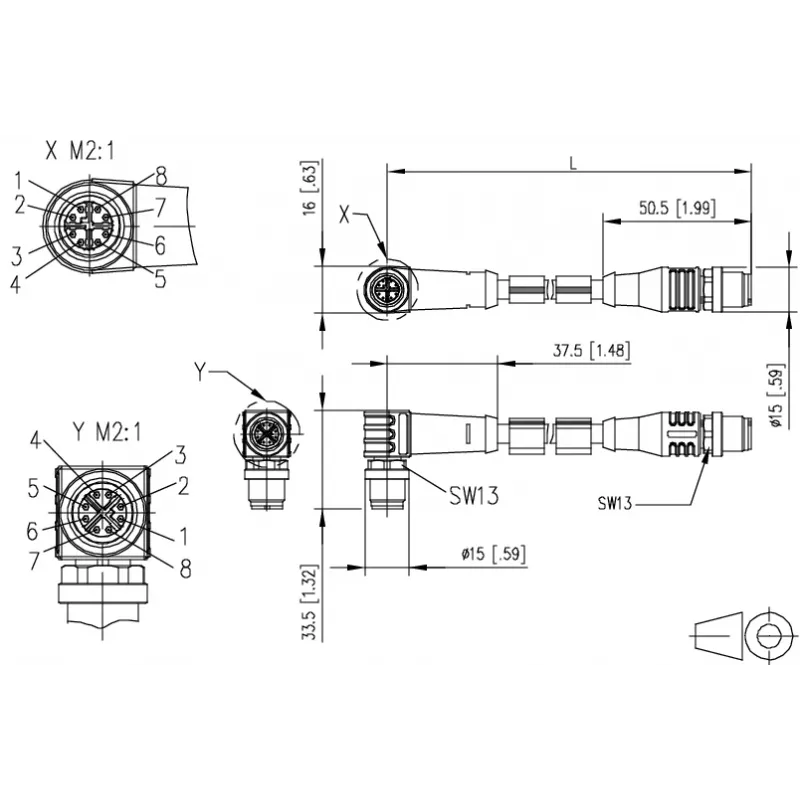

• Connector: M12 plug, X-coded (both ends)
• Number of poles: 8
• Cable length: 1.0 m
• Transmission category: Cat.6A
• Data rate: Up to 10 Gbps

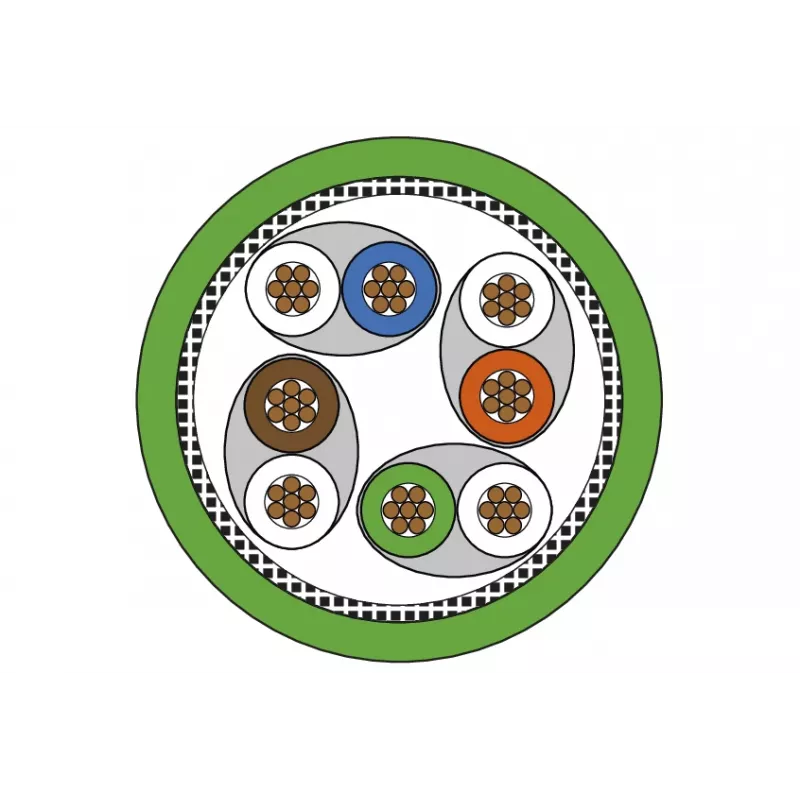

• Shielding: S/FTP (PiMF)
• Jacket material: PUR
• Jacket color: Green (RAL 6018)
• Conductor: Stranded copper, AWG 26/7
• Outer diameter: approx. 6.5 mm
• IP rating (mated): IP67
• Operating temperature: -30 °C to +80 °C
• Halogen-free: Yes
• Oil resistance: Yes (EN 60811-404)
• UV resistance: Yes

Recommendations

For optimal performance in industrial environments, pair this cable with compatible M12 X-coded connectors and ensure proper mating to maintain IP67 protection. Suitable for use in cable trays, conduits, and direct burial applications where oil and UV resistance are required.
