Modulo ricetrasmettitore in fibra ottica BlueOptics FN-TRAN-QSFP28-DR-BO 100000 Mbit/s QSFP28

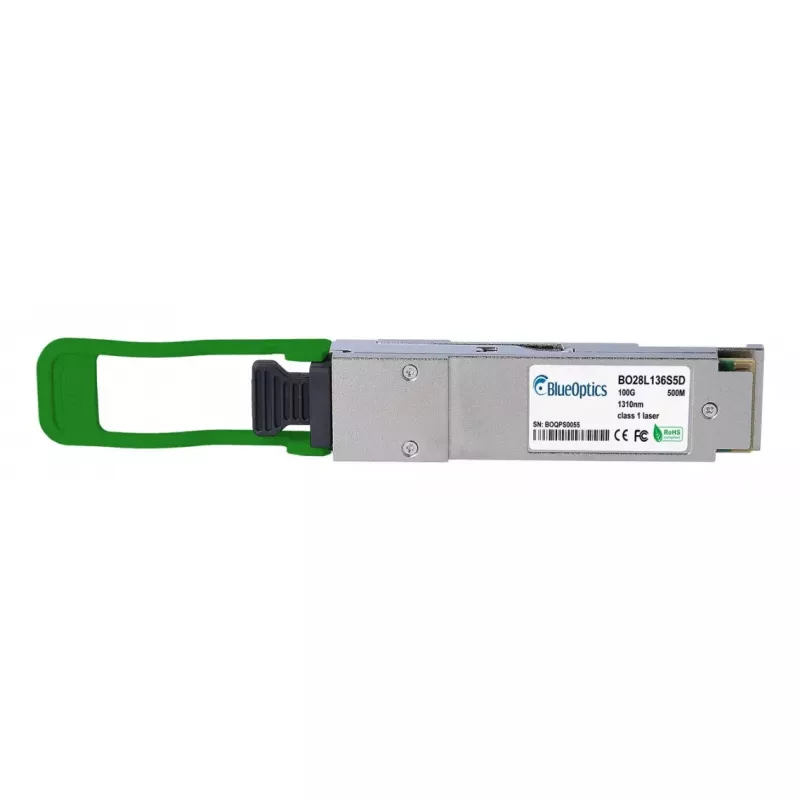

The BlueOptics FN-TRAN-QSFP28-DR-BO is a fiber optic transceiver module for 100000 Mbit/s links that uses a QSFP28 interface and a compact silver housing. Designed for high-density network environments, the module supports 100GBASE-DR transmission over LC duplex connections with CWDM optics for transmitting and receiving optical signals. With a lightweight construction and robust design, it is intended for integration into compatible network equipment that accepts QSFP28 form-factor transceivers.

Advantages

The module delivers a standardized QSFP28 form factor for easy hot-plug installation and high port density. CWDM-enabled transmitter and receiver functions allow reliable 100G optical transmission over appropriate fiber types. Its low weight and compact dimensions reduce mechanical stress on equipment bays while the long MTBF supports extended operating periods. Compatibility with common network platforms ensures straightforward replacement or upgrade of existing 100G links.

Suitable for

Key specifications

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network device following the vendor’s hot-plug instructions. Connect LC duplex fiber cables to the module’s LC ports, ensuring correct polarity and that the fiber type and link budget match the intended 100GBASE-DR application. Verify link status and module recognition through the host device’s management interface and monitoring tools. For safe handling, avoid touching the optical interfaces and replace protective caps only when ready to mate connectors.

Recommendations

Use singlemode or multimode fiber as specified by the link design and ensure CWDM channel planning when deploying multiple wavelengths. Confirm compatibility with the host device’s firmware and optics support list before installation, and perform a light-level or BER test after deployment to validate link performance.
