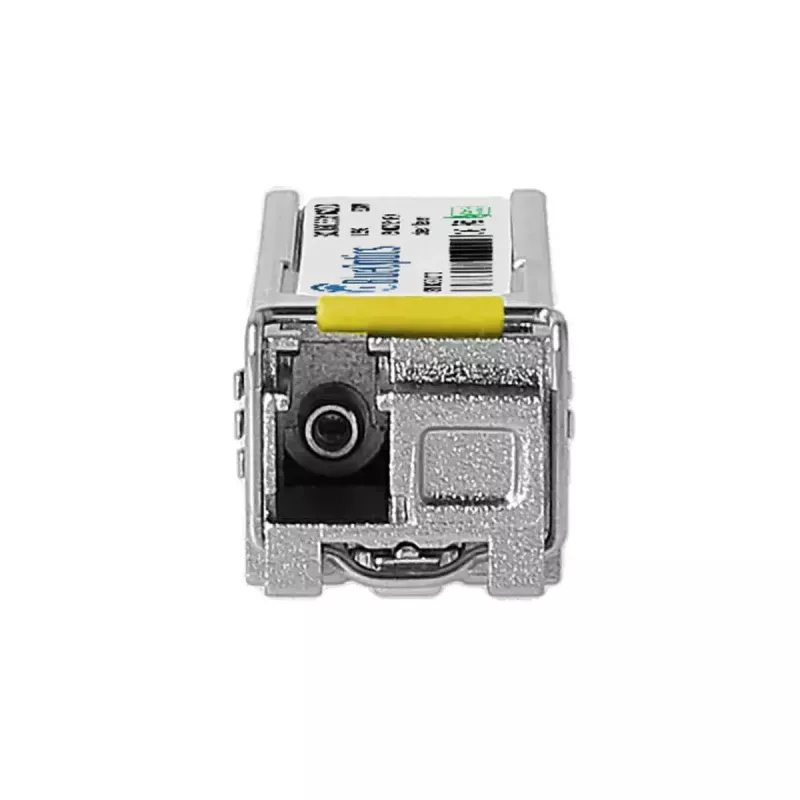

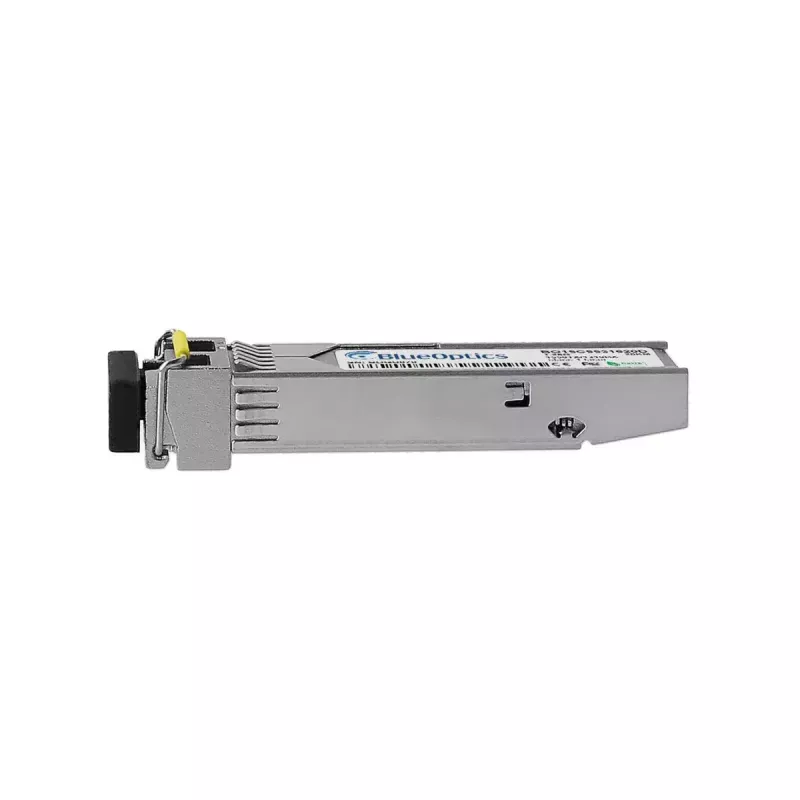

Modulo ricetrasmettitore in fibra ottica BlueOptics SFP-1GT14R13BX10-I-BO LC alluminio

The BlueOptics SFP-1GT14R13BX10-I-BO LC Aluminium is a single-mode fiber optic transceiver module with an SFP interface and LC simplex connector. It implements the 1000BASE-BX-D profile with a 1310 nm transmitter and a 1550 nm receiver, enabling bidirectional optical transmission over a single fiber. Constructed in an aluminium housing and weighing approximately 20 g, the module follows MSA form-factor guidelines and is suitable for integration into compatible networking hardware that supports standard SFP transceivers.

Advantages

This transceiver supports up to 1.25 Gbps line rates and is designed for single-mode fiber links to distances up to 20 km, providing a balance of reach and compact form factor. The aluminium housing offers mechanical robustness and thermal stability while keeping the module lightweight. Built and tested for interoperability with major networking platforms, it includes support for digital diagnostics monitoring (DDM/DOM) so that supply voltage, laser bias current, transmit power, received power and temperature can be read remotely when the host supports it.

Suitable for

Key specifications

How to use

Ensure the host device supports 1000BASE-BX-D SFP transceivers and DDM if monitoring is required. Power down or follow hot-swap guidance for your equipment, insert the SFP module into an empty SFP slot until it seats securely, then connect an LC single-mode patch cable with correct polarity to the module. Configure the network interface on the host device as required for Gigabit Ethernet operation and verify link status. If DDM is available, check diagnostic values through the host management interface to confirm proper operation.

Recommendations

For optimal performance, use single-mode fiber of appropriate grade and low-loss LC patch cords, verify transceiver compatibility with the specific hardware vendor and firmware version, and ensure cleanliness of optical connectors before mating. If remote monitoring is needed, confirm that the host platform exposes DDM information.
