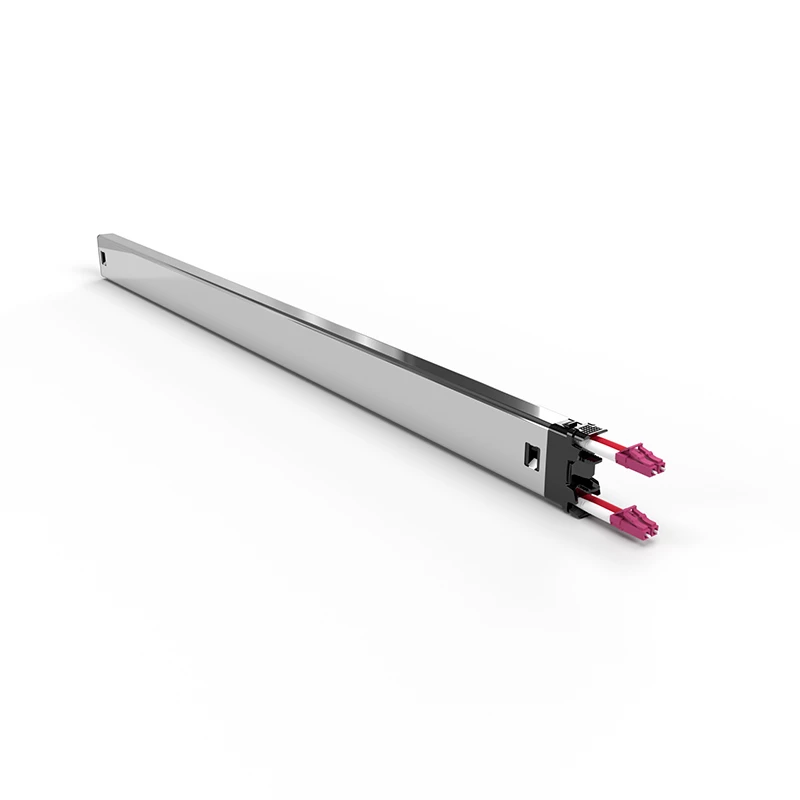

PATCHBOX C60MMAOM411X1E cavo InfiniBand/fibra ottica 1,8 m LC OFC viola

PATCHBOX® Plus+ is an integrated cabling solution designed to reduce cable clutter and speed up installation and maintenance in network cabinets. The unit accommodates up to 30 RU and includes extractable OM4 fibre optic cables with LC connectors and a fixed length of 1.8 m, using ISO/IEC-tested Corning® fibres. A steel frame supports up to 24 PATCHBOX® cassettes and the system includes a PATCHBOX® Patchcatch for 0RU cable management. Each cassette has its own labelling option and a cable stopper allows precise adjustment of the pulled length.

Advantages

The system provides ready-to-use, extractable fibre optic cables at the correct length, reducing installation time and ongoing maintenance effort. It enables faster patching and typical changes—installation and initial patching of 24 cables is on average eight times faster than conventional methods, while moves, adds and changes or switch replacement can be up to ten times faster. PATCHBOX® increases packing density in the cabinet and simplifies cassette replacement, resulting in improved space utilization and a clearer layout.

Suitable for

• Data centers and server rooms
• Enterprise network cabinets
• Telecommunications racks requiring high-density optical patching
• Environments where fast maintenance and frequent moves/adds/changes are needed

Key specifications

• Product: PATCHBOX® Plus+ with PATCHBOX® C60MMAOM411X1E fibre optic cable
• Brand: Patchbox
• Manufacturer part number (MPN): C60MMAOM411X1E
• Cable type: OM4 multimode fibre
• Connector type: LC to LC (duplex)
• Cable length: 1.8 m (extractable)
• Core diameter: 50 µm
• Frame capacity: up to 24 PATCHBOX® cassettes; suitable for up to 30 RU
• Complies with ISO/IEC testing; uses Corning® fibres

How to use

Install the steel frame in the network cabinet and insert the PATCHBOX® cassettes into the frame. Pull out the required length of the extractable OM4 LC duplex cable for each connection and set the cable stopper to secure the desired length. Label each cassette with its dedicated labelling option. Use the included PATCHBOX® Patchcatch for 0RU cable management to route and secure cables. For cassette replacement, remove the cassette from the frame and insert a new one—no major rewiring is required.

Recommendations

For optimal performance, use in rack environments where high-density patching and fast maintenance are priorities. Maintain clear labelling for each cassette, adhere to ISO/IEC guidelines for fibre handling, and avoid exceeding the recommended bending radius for OM4 fibres during routing and extraction.
