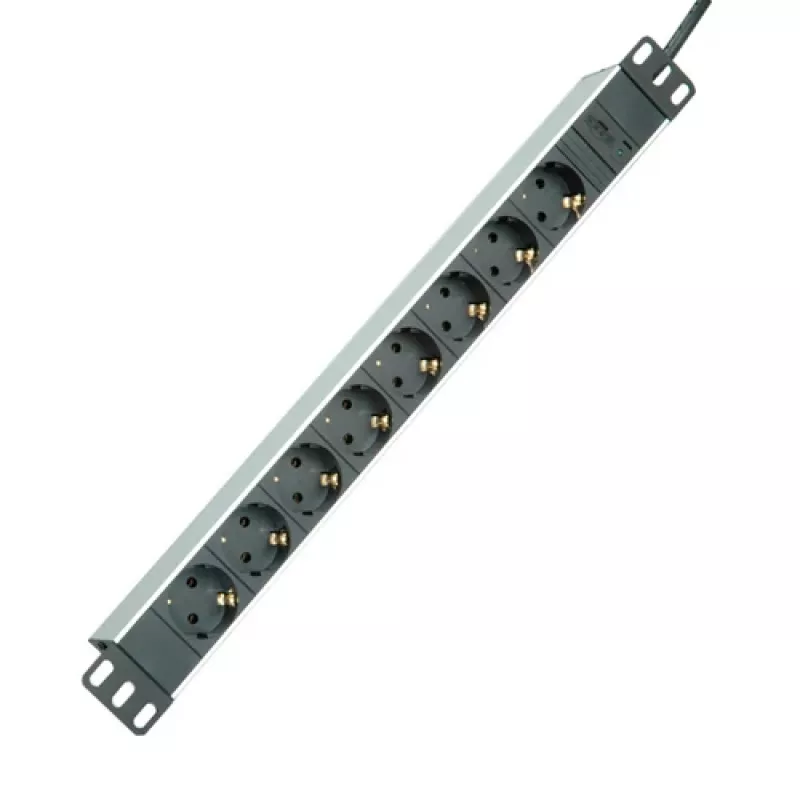

Prolunga elettrica ROLINE 19.07.1622 2 m 8 prese AC per interni alluminio

Power Extension ROLINE 19.07.1622 is a 19" (1U) mountable power strip designed for installation in 19" cabinets and racks. The unit features an anodized aluminium profile in light grey (RAL 7035), a 2.0 m H05VV-F 3G 1.0 mm² black supply cable and eight AC outlets arranged at a 45° angle. It is rated for a maximum current of 10 A and a maximum power of 2300 W and has been VDE/GS tested. The product width is 440 mm with compact overall dimensions suitable for indoor use.

Advantages

The aluminium profile provides mechanical stability and a low-profile design for installation in cramped rack spaces. The 45° angled outlet arrangement improves accessibility to plugs in confined cabinet environments. A 2.0 m cable offers flexibility for placement relative to the mains inlet, and VDE/GS testing confirms conformity with relevant safety standards for electrical devices.

Suitable for

• Powering network and server equipment in 19" racks and cabinets
• Distributing mains power to office electronics in server rooms
• Use in home lab or AV racks where space is limited

Key specifications

• Model: ROLINE 19.07.1622
• Mounting: 19" (1U) with installation angle
• Number of outlets: 8 AC sockets
• Outlet arrangement: 45°
• Cable: 2.0 m H05VV-F 3G 1.0 mm², black
• Max. current/power: 10 A / 2300 W
• Safety: VDE / GS tested
• Material/color: Anodized aluminium, light gray (RAL 7035)
• Width: 440 mm
• Intended use: Indoor

How to use

Install the unit in a 19" cabinet using the supplied installation angle and secure it at the 1U position. Connect the power strip to the mains using the attached 2.0 m H05VV-F cable and plug in equipment to the eight AC outlets. Ensure the total connected load does not exceed 10 A / 2300 W. Position cables to avoid strain on the inlet and maintain clearance for ventilation inside the cabinet.

Recommendations

Do not exceed the rated current of 10 A; distribute high-power devices across separate circuits if necessary. Use indoors only and avoid exposure to moisture. For installations in professional environments, follow local electrical codes and, if required, have a qualified electrician perform fixed wiring or rack mounting.
