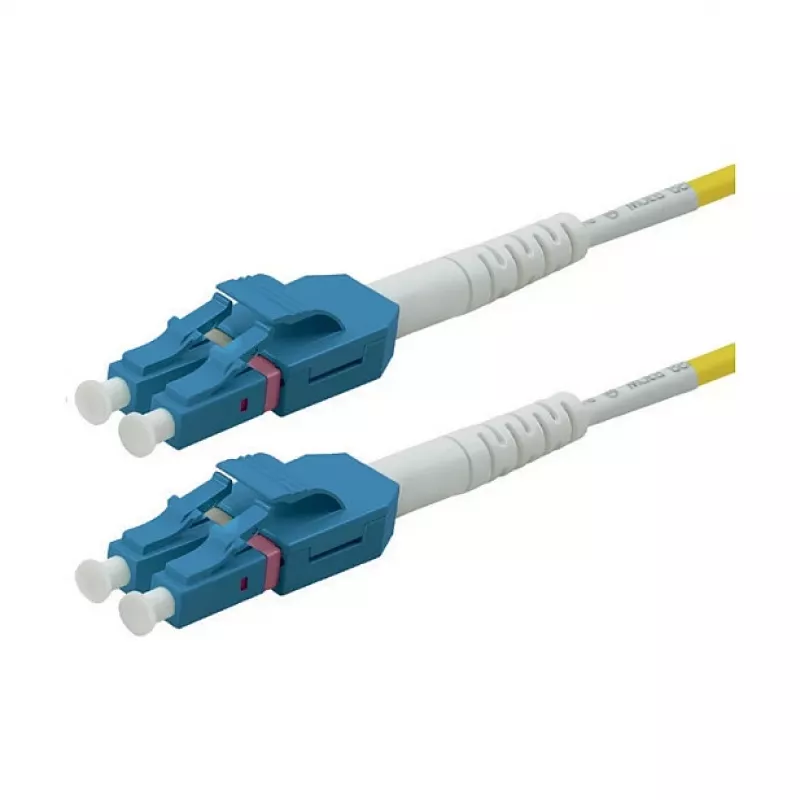

ROLINE cavo fibra ottica UNIBOOT singlemode 9/125µm OS2 LC duplex 1m giallo

The ROLINE fibre optic cable UNIBOOT single mode 9/125µm OS2 LC duplex 1m is a high-performance patch cable designed for reliable data transmission in demanding network environments. Featuring a uniboot design with duplex LC connectors, this cable simplifies polarity management and reduces cable clutter. The OS2 single-mode fiber supports long-distance communication up to 10 km and beyond, making it ideal for data centers, LANs, SANs, and FTTx applications.

Advantages

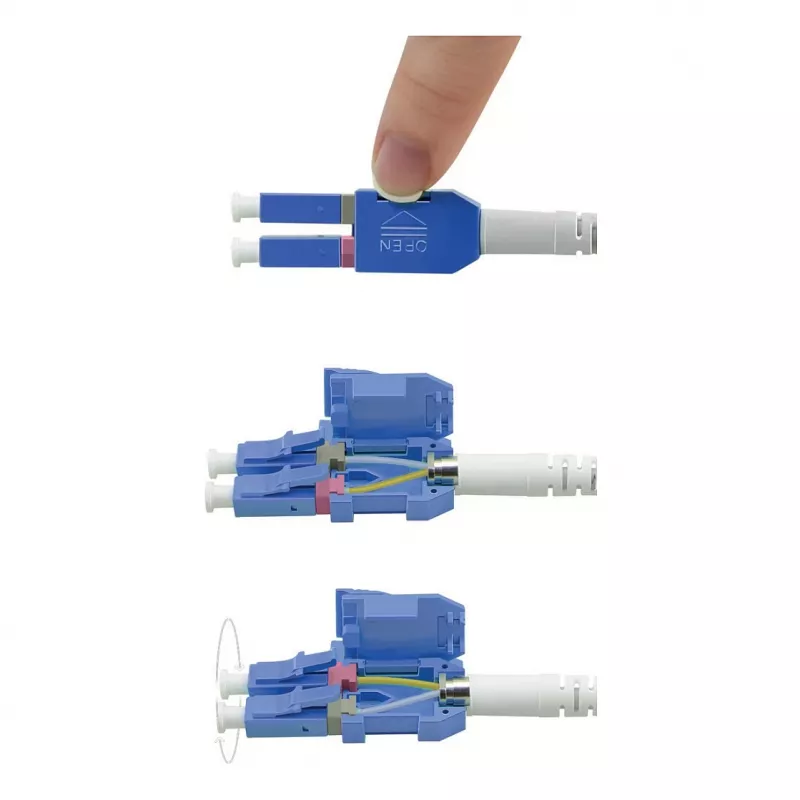

Uniboot design allows for easy polarity reversal without additional adapters. LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces. Low insertion loss and high return loss guarantee signal integrity. Durable ceramic ferrules provide stable connections.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Storage area networks (SAN)
• FTTx deployments
• Telecommunications

Key specifications

• Cable type: Fibre Optic Patch Cable
• Fiber type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connectors: LC Duplex to LC Duplex, Uniboot
• Length: 1 m
• Jacket material: LSZH
• Jacket color: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Wavelength: 1310 nm, 1550 nm
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 30 mm
• Polarity: A-B (Crossed)
• Ferrule material: Ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OS2-rated transceivers and ensure proper cable management to maintain bend radius. Suitable for both indoor and protected outdoor installations.
