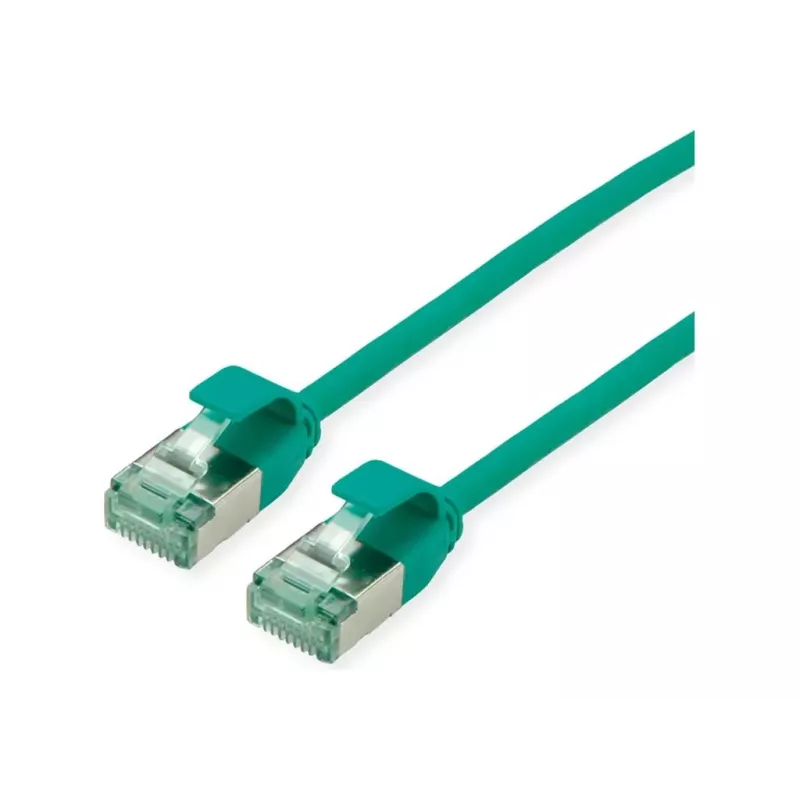

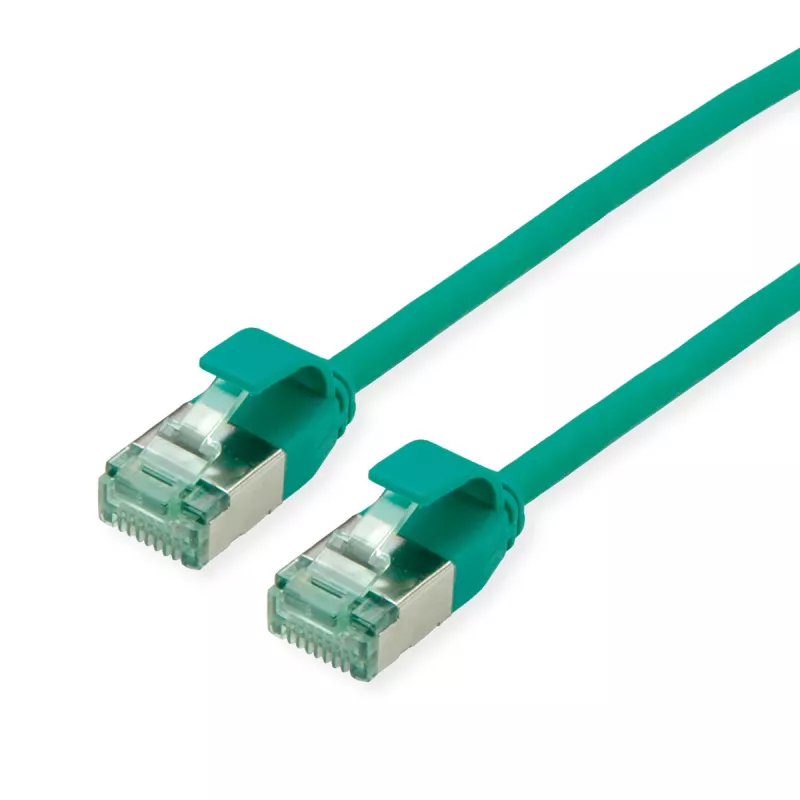

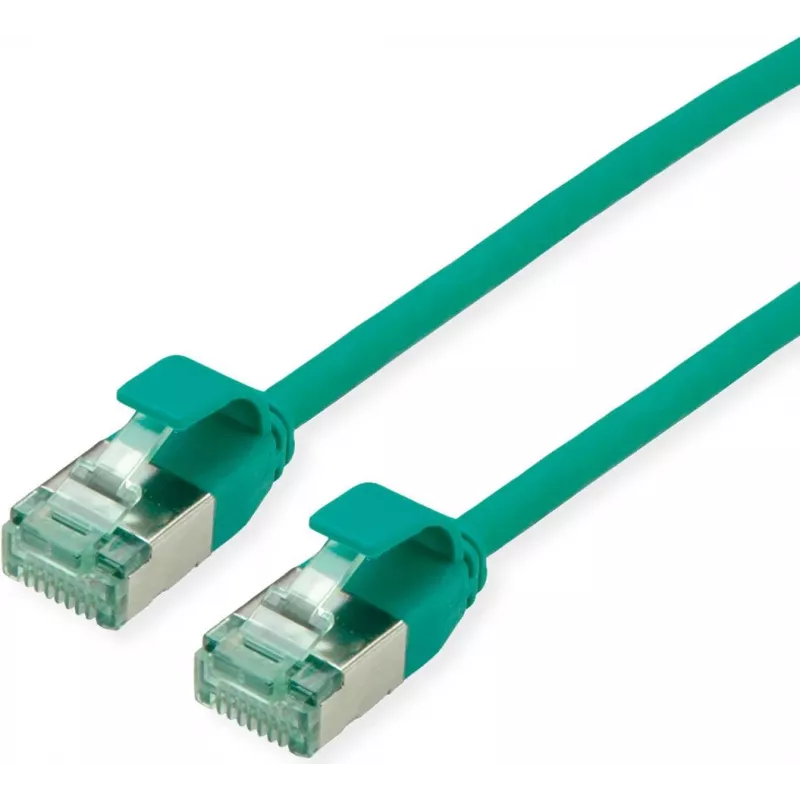

ROLINE RM Cavo patch U/FTP Cat.6A/Class EA SLIM verde 3m - FTP (21.45.3336)

Experience 10 Gigabit Ethernet performance with this slim Cat.6A patch cable, engineered for high-density network environments.

Overview

The ROLINE RM U/FTP Patch Cable delivers reliable 10GBASE-T connectivity in a compact, low-profile design. With a length of 3 meters, it is ideal for connecting servers, switches, and patch panels in data centers or office networks. The green LSZH jacket ensures safety in case of fire while maintaining flexibility for easy routing.

What stands out

• Supports 10 Gigabit Ethernet (10GBASE-T) for high-speed data transfer
• Slimline design with an outer diameter of approximately 4.5 mm, saving space in dense installations
• U/FTP shielding with gold-plated RJ45 connectors for superior signal integrity
• Halogen-free LSZH jacket for enhanced fire safety
• Stranded copper conductors (28 AWG) provide flexibility and durability

Technical details

• Category: Cat.6A (Class EA)
• Shielding: U/FTP (overall foil shield)
• Length: 3 m
• Colour: Green
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated contacts
• Cable construction: Stranded
• Conductor material: Copper
• Jacket material: LSZH (Low Smoke Zero Halogen)
• AWG: 28 AWG
• Outer diameter: 4.5 mm
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA 568-B
• Compliance: RoHS, REACH

Our verdict

A high-performance, space-saving patch cable that meets the demands of modern 10G networks while prioritizing safety and environmental compliance.
