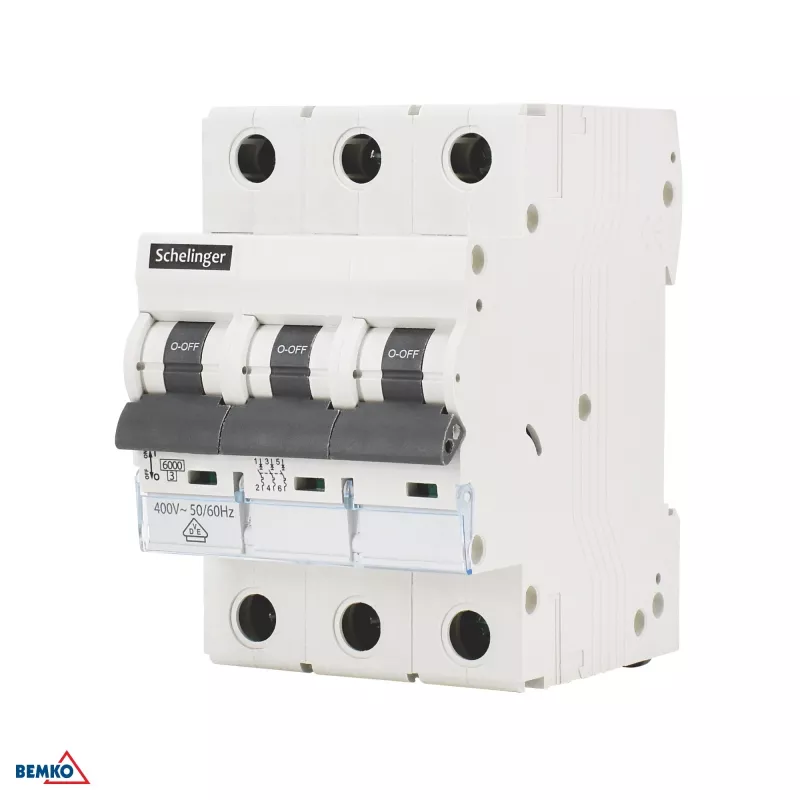

SCHELINGER Interruttore automatico 6kA 3P B 40A VDE

SCHELINGER Interruttore automatico 6kA 3P B 40A VDE
SCHELINGER Interruttore automatico 6kA 3P B 40A VDE
10,03 €
PDF
PDF
Stock 2 Codice 3101115 Modello A02-G8-3P-B40 Garanzia 2 anni

Spedizioni e resi

Consegna stimata martedì 1 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

The SCHELINGER A02-G8-3P-B40 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 3-pole configuration, rated current of 40A, and type B tripping curve, it ensures safe operation for residential and commercial applications. Compliant with VDE and IEC/EN 60898-1 standards, this MCB offers a breaking capacity of 6kA and is suitable for DIN rail mounting.

Advantages

This MCB provides robust protection against overloads and short circuits, with a compact 3-module width (54mm) for space-saving installation. Its screw terminals accommodate conductors up to 25mm² and busbars up to 16mm², ensuring secure connections. With an electrical life of 10,000 operations and mechanical life of 20,000 operations, it delivers long-lasting performance.

Suitable for

  • Residential electrical panels
  • Commercial distribution boards
  • Industrial control systems
  • Lighting and socket circuits

Key specifications

  • Product Type: Miniature Circuit Breaker (MCB)
  • Number of Poles: 3P (3-pole)
  • Rated Current: 40A
  • Tripping Curve: Type B
  • Rated Breaking Capacity: 6kA
  • Rated Voltage (AC): 230/400V AC
  • Frequency: 50/60Hz
  • Mounting Type: DIN Rail
  • Standard Compliance: VDE, IEC/EN 60898-1
  • Protection Degree: IP20
  • Terminal Capacity (Conductor): Up to 25mm²
  • Terminal Capacity (Busbar): Up to 16mm²
  • Electrical Life: 10,000 operations
  • Mechanical Life: 20,000 operations
  • Energy Limiting Class: 3
  • Operating Temperature Range: -25°C to +55°C
  • Connection Type: Screw Terminals
  • Module Width: 3 Modules (54mm)

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and used within its rated specifications. Regular testing is recommended to maintain safety.

Specifiche

Specifiche
Alimentatore incluso
No
Categoria
Interruttore magnetotermico miniaturizzato (MCB)
Certificati di conformità
VDE, IEC/EN 60898-1
Certificazione
VDE, IEC/EN 60898-1
Compatibilità
Sistemi a guida DIN
Contenuto della confezione
1 x MCB, 1 x manuale
Corrente in ingresso
40 A
EAN
5900280970916
Interruttore on/off
No
Marca
SCHELINGER
Modello
A02-G8-3P-B40
MPN
A02-G8-3P-B40
Periodo di garanzia
2 anni
Peso
0.33 kg
Plug and Play
Sì
Quantità per confezione
1
