SCHELINGER Interruttore automatico 6kA 3P B 63A VDE

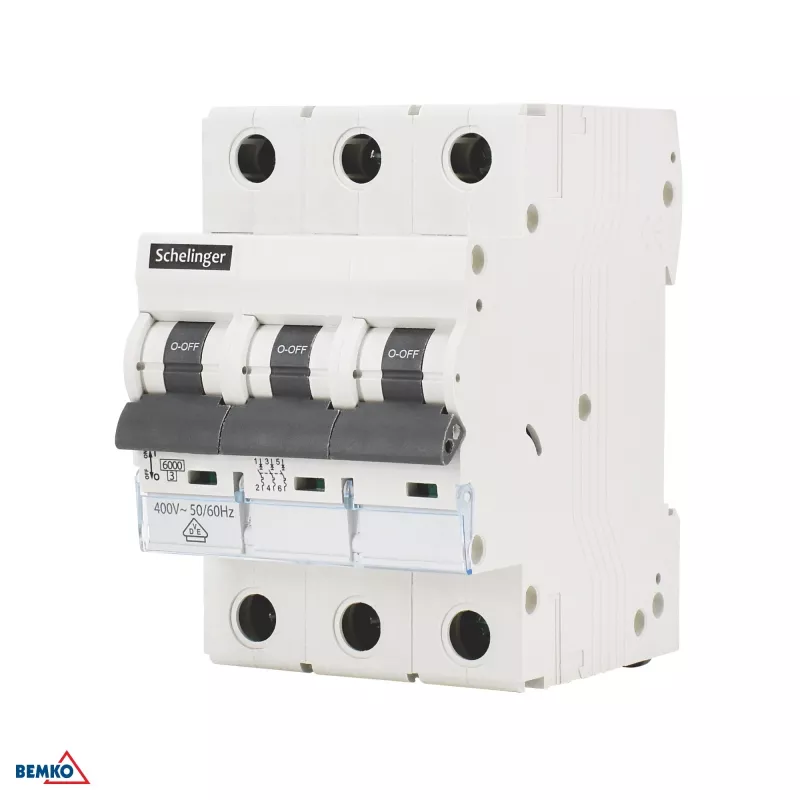

The SCHELINGER A02-G8-3P-B63 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 6kA short-circuit breaking capacity and Type B tripping curve, it ensures safety and performance for residential and commercial applications.

Advantages

This MCB offers robust protection against overloads and short circuits, complying with IEC/EN 60898-1 standards. Its compact 3-pole design saves space on DIN rails, while the clear ON/OFF and trip indicators provide easy status monitoring. VDE and CE certifications guarantee quality and safety.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Lighting and general power circuits

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (Three-Pole)
• Rated Current (In): 63 A
• Tripping Curve: Type B
• Short-circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail (EN 60715)
• Standard Compliance: IEC/EN 60898-1
• Certification: VDE, CE
• Terminal Capacity: 1-35 mm² (flexible/rigid conductor)
• Protection Degree: IP20 (terminals), IP40 (enclosure, with cover)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Operating Temperature Range: -25°C to +50°C
• Energy Limiting Class: 3
• Connection Type: Screw terminals
• Indicator: ON/OFF position indicator, Trip indicator
• Width per Pole: 18 mm
• Total Width: 54 mm

Recommendations

For optimal protection, ensure proper installation by a qualified electrician. This MCB is ideal for circuits with high inrush currents, such as motors or transformers, where Type B characteristic is required.
