SCHELINGER Interruttore automatico 6kA 3P C 10A VDE

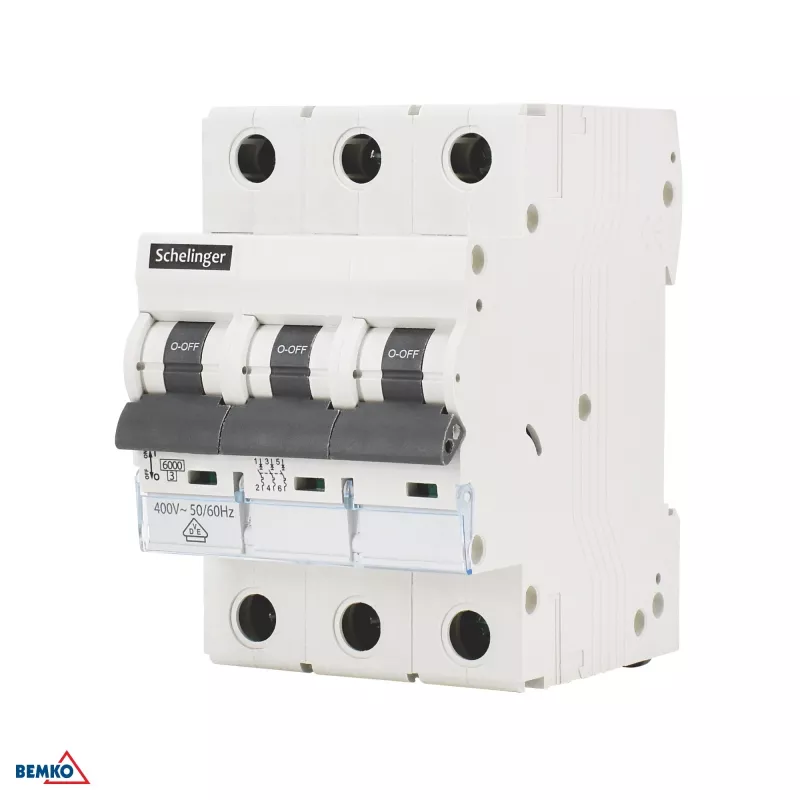

The SCHELINGER A02-G8-3P-C10 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a 3-pole configuration, C-curve tripping characteristic, and a breaking capacity of 6 kA, this MCB is ideal for protecting circuits with inductive loads or high inrush currents. It complies with EN 60898-1 and VDE standards, ensuring safety and performance.

Advantages

This MCB offers robust protection with a rated current of 10 A and a rated voltage of 400 V AC. Its DIN rail mounting (35 mm) simplifies installation in distribution boards. The screw terminals accommodate conductors up to 25 mm², providing secure connections. With an electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles, it ensures long-lasting operation. The IP20 protection class safeguards against finger contact.

Suitable for

• Residential and commercial electrical panels
• Protection of lighting, heating, and motor circuits
• Applications requiring C-curve tripping (e.g., transformers, fluorescent lighting)

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3-Pole (3P)
• Rated Current: 10 A
• Tripping Characteristic: C-curve
• Short-circuit Breaking Capacity: 6 kA
• Rated Voltage: 400 V AC
• Mounting Type: DIN Rail (35 mm)
• Standard Compliance: EN 60898-1, VDE
• Frequency: 50/60 Hz
• Protection Class: IP20 (Terminals)
• Terminal Capacity: Up to 25 mm² (Conductor)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Operating Temperature Range: -25°C to +55°C
• Energy Limiting Class: Class 3
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Rated Insulation Voltage (Ui): 500 V
• Connection Type: Screw Terminals

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and used within its specified ratings. Regularly test the breaker to confirm proper operation.
