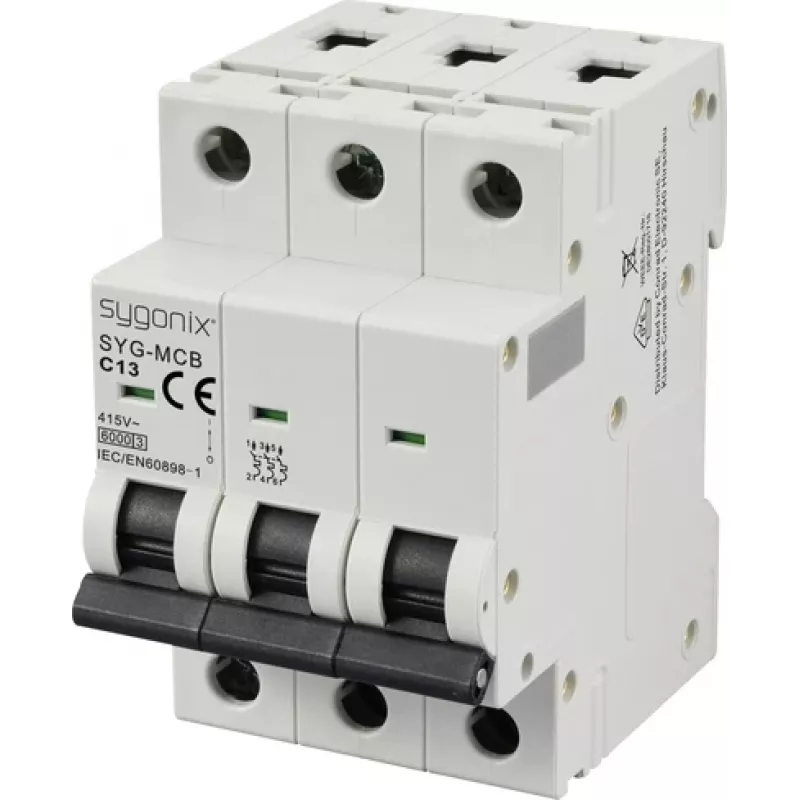

Sygonix SY-6441082 interruttore automatico 3 poli, curva C, 13 A, 415 V AC, 6 kA

3-pole miniature circuit breaker (MCB) with C-curve tripping characteristic, rated at 13 A and 415 V AC, providing short-circuit breaking capacity of 6 kA for reliable protection of electrical circuits.

Advantages

Compact DIN rail mounting with screw terminals accepts solid conductors up to 25 mm² and flexible conductors up to 16 mm². The C-curve ensures dependable tripping on moderate inrush currents, making it suitable for general lighting and socket circuits.

Suitable for

• Distribution boards in residential and commercial installations
• Protection of three-phase circuits with moderate inductive loads
• Applications requiring 13 A rated current and 6 kA breaking capacity

Key specifications

• Number of poles: 3
• Tripping characteristic: C
• Rated current: 13 A
• Rated voltage: 415 V AC
• Short-circuit breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: screw terminals
• Terminal capacity (solid): 1 - 25 mm²
• Terminal capacity (flexible): 1 - 16 mm²
• Protection class (terminals): IP20
• Protection class (housing): IP40
• Operating temperature range: -25 to +55 °C
• Standards compliance: IEC/EN 60898-1

Recommendations

Verify that the breaker's rated current and breaking capacity match your circuit requirements before installation. Ensure proper torque on screw terminals to maintain reliable connections.
