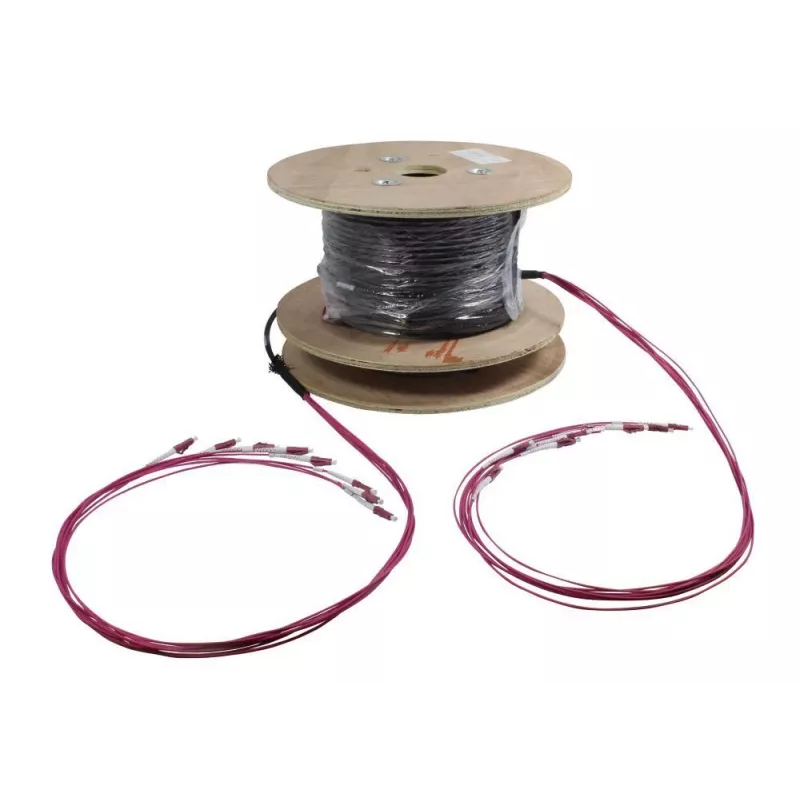

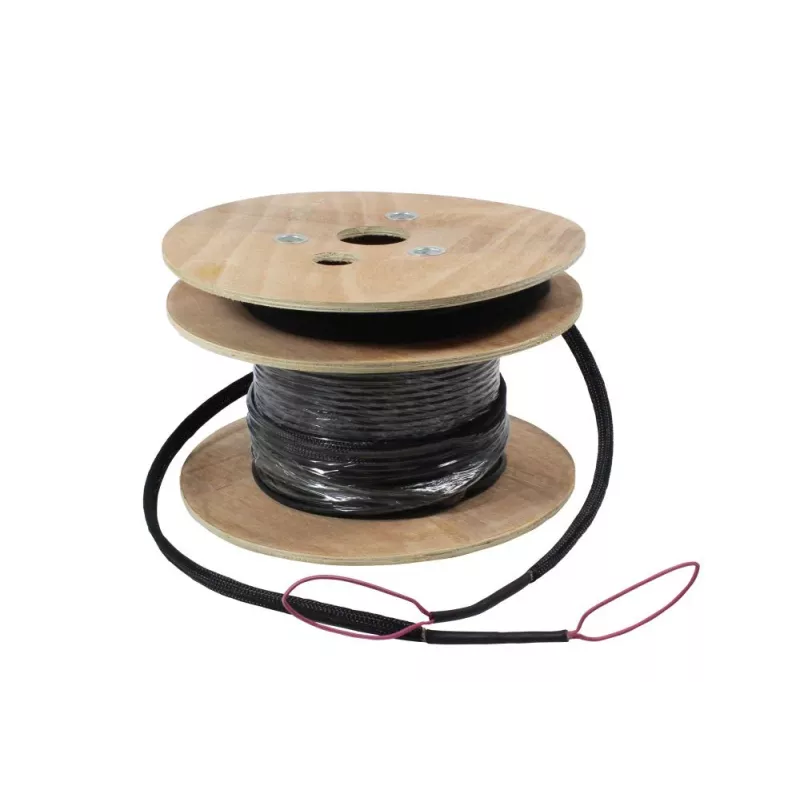

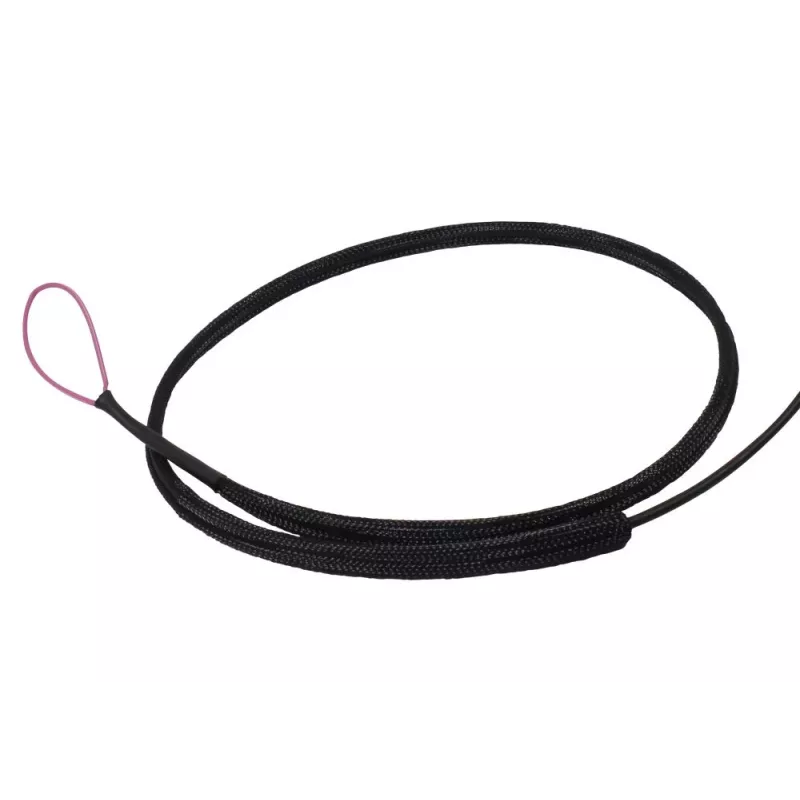

SYNERGY21 S217084V2 OM4 Cavo trunk 8 fibre LC/LC 150m, halogen-free, interno/esterno

Fiber optic trunk cable with 8 multimode OM4 fibers, pre-terminated with LC connectors on both ends, delivering high-performance 50/125 µm core for data-intensive applications over 150 meters. Its U-DQ(ZN)BH construction ensures halogen-free, flame-retardant safety for universal indoor/outdoor use.

Advantages

OM4 grade supports 4700 MHz*km modal bandwidth at 850 nm, enabling 10G, 40G, and 100G Ethernet links. The halogen-free sheath reduces toxic smoke in fire events, while the rugged design withstands diverse installation environments. Pre-terminated LC connectors save field termination time and ensure consistent quality.

Suitable for

• Data centers and server rooms
• Enterprise backbone cabling
• Indoor and outdoor campus networks
• High-speed parallel optics (40G/100G SR4)

Key specifications

• Fiber type: OM4 multimode 50/125 µm
• Fiber count: 8
• Connectors: LC to LC
• Length: 150 m
• Construction: U-DQ(ZN)BH, halogen-free, flame-retardant
• Modal bandwidth: 4700 MHz*km @ 850 nm, 500 MHz*km @ 1300 nm

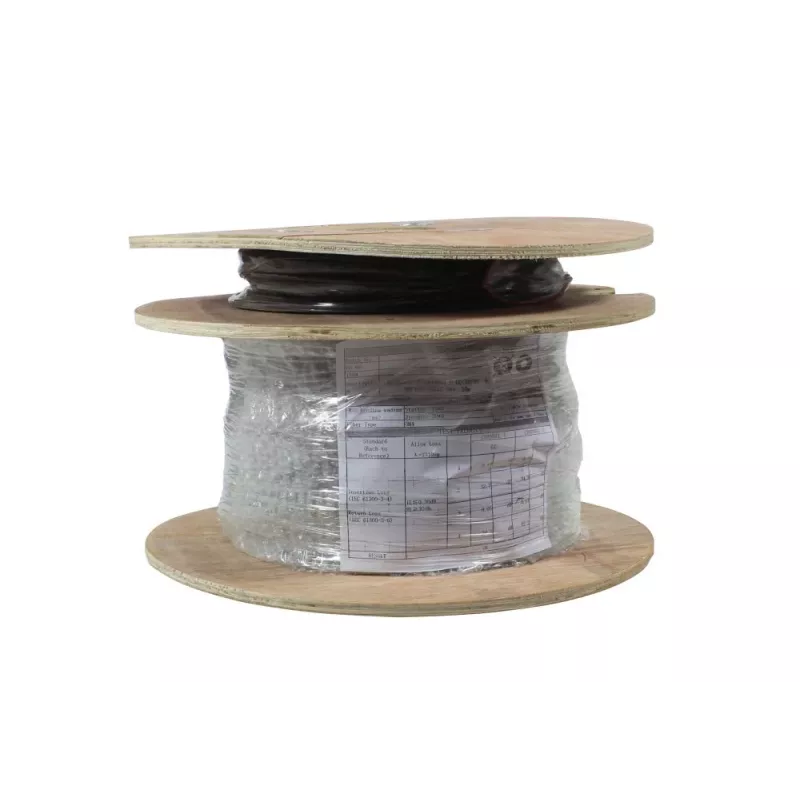

• Packaging: Cable drum

Recommendations

For optimal performance, pair with OM4-compatible transceivers and maintain proper bend radius during installation. Verify connector cleanliness before mating to avoid signal loss.
