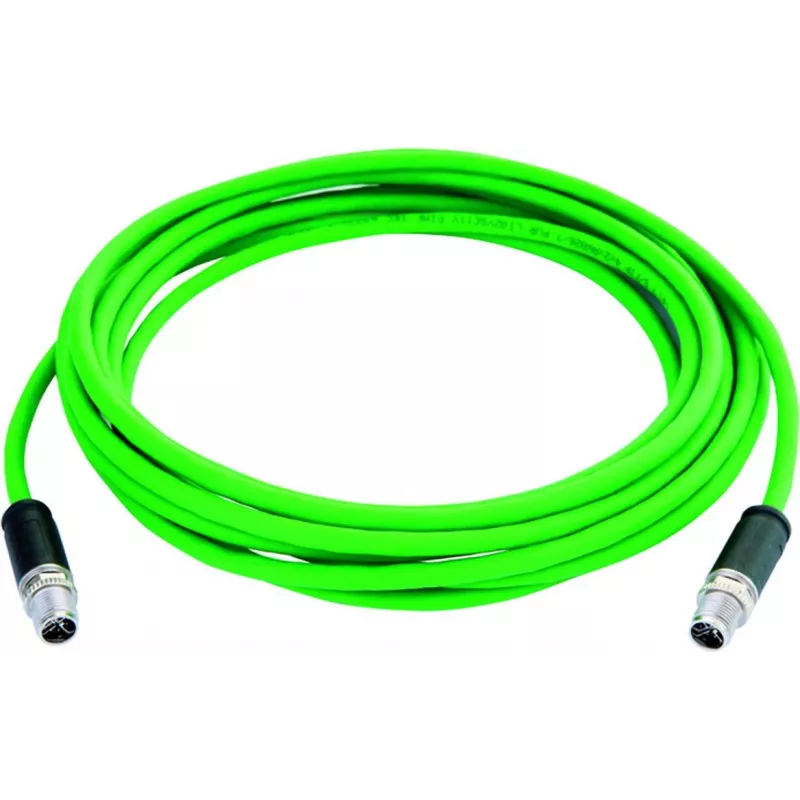

TELEGÄRTNER M12 X-coded Cat.6A cavo patch Ethernet industriale, 3 m, PUR, verde

Industrial Ethernet connections in harsh environments demand robust cabling that maintains signal integrity under vibration, moisture, and electromagnetic interference. This TELEGÄRTNER connection line addresses those challenges with a Cat.6A design and M12 X-coded connectors, delivering reliable 10 Gigabit performance over a 3-meter length.

Who is it for

Automation engineers, system integrators, and maintenance teams working with PROFINET, robotics, machine vision, or other high-speed industrial networks will find this cable essential. It is built for environments where standard RJ45 patch cables would fail due to mechanical stress or ingress of dust and liquids.

Main features

• M12 X-coded 8-pin male connectors on both ends for secure, IP67-rated mating
• Cat.6A performance supporting 10 Gbps Ethernet up to 500 MHz
• S/FTP shielding: individual pair foil plus overall braid for superior noise immunity
• PUR jacket resistant to oil, abrasion, and harsh chemicals; green colour for high visibility
• Operating temperature range from -20°C to +80°C for fixed installations

Tips

For best results, ensure connectors are fully seated and hand-tightened to maintain the IP67 seal. Avoid sharp bends near the connector; the minimum bend radius should follow the cable outer diameter of 6.5 mm. This cable is intended for fixed installation; for continuous flexing applications, consider a different cable construction.
