Weidmüller 1040480000 - 16 mm² - 50,5 mm - 66 mm - 500 V - blu - collegamento a vite - morsetto per guida DIN

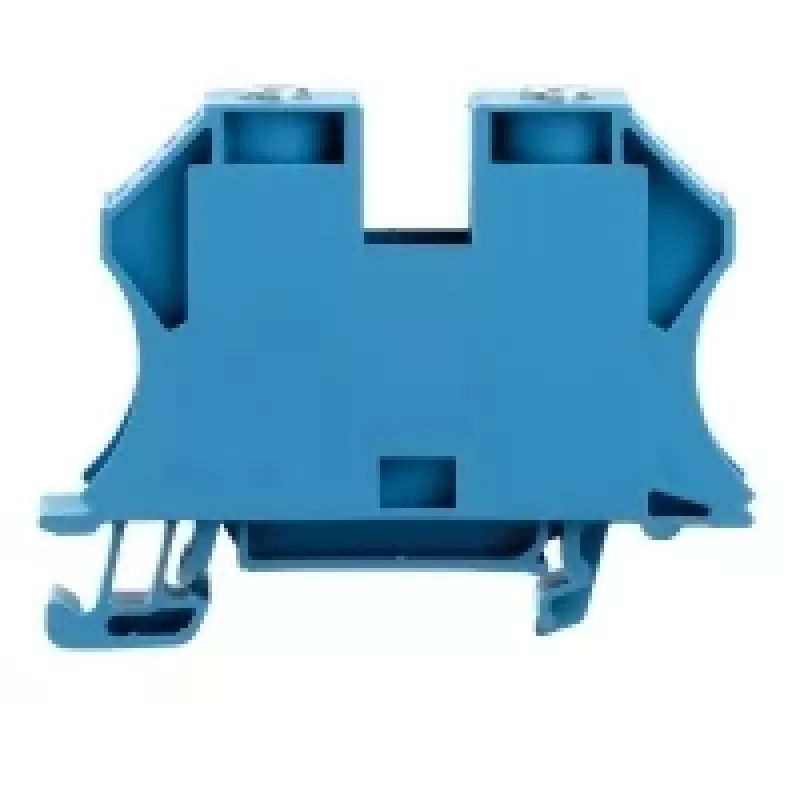

The Weidmüller 1040480000 is a high-quality DIN rail terminal block designed for reliable and secure electrical connections. With a rated cross-section of 16 mm² and a rated voltage of 1000 V (IEC), this terminal block is suitable for a wide range of industrial applications. The screw connection ensures a robust and vibration-resistant connection for solid and stranded conductors.

Advantages

This terminal block offers easy and fast installation on TS 35 DIN rails. The Wemid insulation material provides excellent thermal and mechanical properties, while the V-0 flammability rating ensures high safety standards. The blue colour coding helps in easy identification of neutral or specific circuits.

Suitable for

• Industrial control panels
• Distribution boards
• Machine building
• Automation systems

Key specifications

• Connection Type: Screw Connection
• Number of Connections: 2
• Number of Potentials: 1
• Rated Cross-Section (IEC): 16 mm²
• Conductor Cross-Section, Solid: 0.5 mm² - 25 mm²
• Conductor Cross-Section, Stranded: 0.5 mm² - 16 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 76 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Overvoltage Category: III
• Insulation Material: Wemid
• Colour: Blue
• Mounting Type: DIN Rail TS 35
• Stripping Length: 16 mm
• Screwdriver Size: PZ2 (or 6.0 x 1.0 mm flat blade)
• Tightening Torque: 1.2 Nm - 2 Nm
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating (UL 94): V-0

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper tightening torque. Suitable for use in environments with pollution degree 3 and overvoltage category III.
