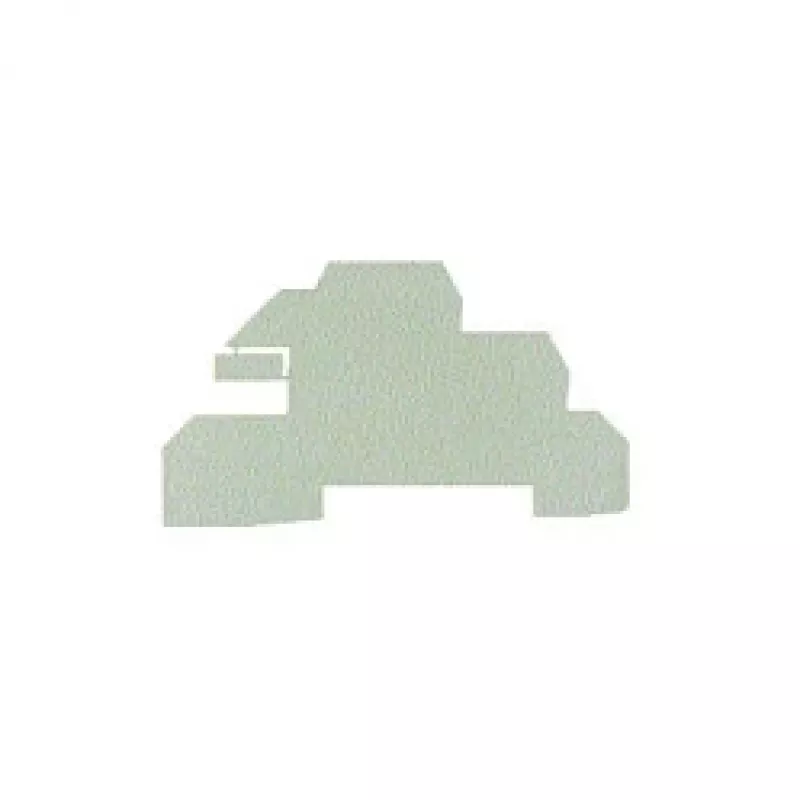

Weidmüller WAP WDL2.5/S piastra terminale - grigio - 1,5 mm - 20 pz.

The Weidmüller WAP WDL2.5/S is a high-quality end plate designed for use with Weidmüller WDL 2.5 series terminal blocks. It provides reliable insulation and mechanical protection at the end of a terminal block assembly. Made from Wemid thermoset material, this end plate offers excellent thermal and electrical properties, with a flammability rating of UL 94 V-0 and an operating temperature range of -50 °C to 120 °C. The grey color ensures easy identification and a professional appearance. Each pack contains 20 pieces, making it ideal for both small and large projects.

Advantages

• Ensures safe and secure termination of terminal block assemblies
• High-quality Wemid material provides durability and long service life
• UL 94 V-0 flammability rating for enhanced safety
• Wide operating temperature range suitable for various environments
• Easy side mounting for quick installation

Suitable for

• Industrial control panels
• Electrical distribution systems
• Automation and process control
• Building infrastructure wiring

Key specifications

• Product Type: End Plate
• Series Compatibility: Weidmüller WDL 2.5 Terminal Blocks
• Material: Wemid (Thermoset)
• Color: Grey
• Thickness: 1.5 mm
• Operating Temperature: -50 to 120 °C
• Flammability Rating: UL 94 V-0
• Mounting Type: Side mounting
• Quantity per Pack: 20 pieces
• Length (Depth): 60 mm
• Height: 60 mm
• Weight per Piece: 2.5 g
• Pollution Degree: 3
• Standards: IEC 60947-7-1
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommendations

For optimal performance, use this end plate with Weidmüller WDL 2.5 series terminal blocks. Ensure proper installation according to manufacturer guidelines. Suitable for use in environments requiring high reliability and safety standards.
