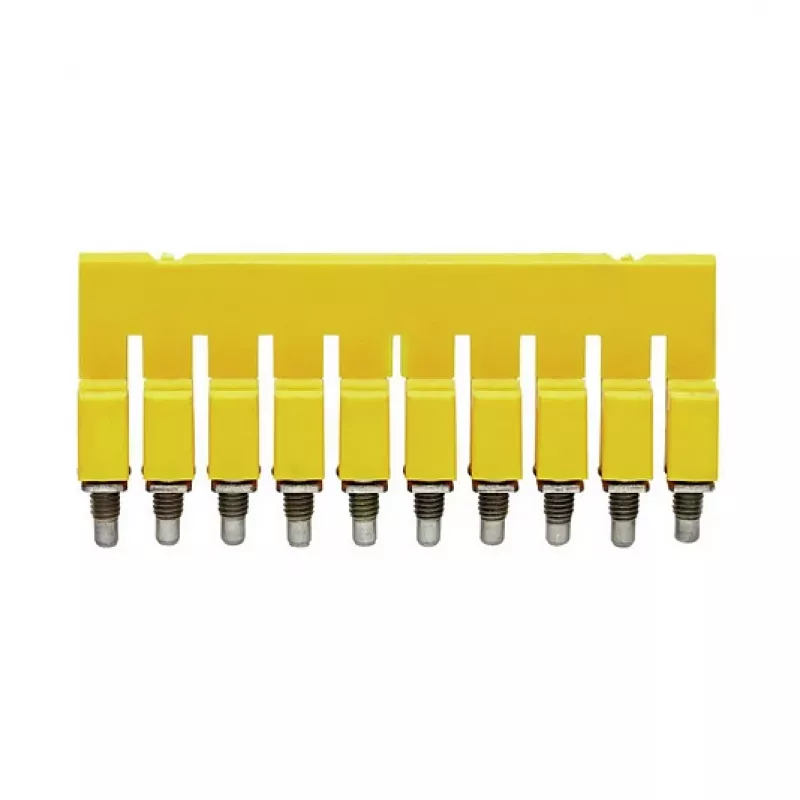

Weidmüller WQV 2.5/10 connettore trasversale, a 10 poli, 2,5 mm², giallo, poliammide, 20 pz.

The Weidmüller WQV 2.5/10 is a high-quality cross-connector designed for bridging multiple terminal blocks in industrial control and distribution systems. This 10-pole connector is part of the WQV series and is compatible with WDU 2.5, ZDU 2.5, WPE 2.5, and ZPE 2.5 terminal blocks. It is manufactured from durable polyamide (PA) with a yellow color and features a UL 94 V-0 flammability rating, ensuring safety and reliability in demanding environments.

Advantages

• Simplifies wiring by creating a common potential across multiple terminals
• Compact design saves space on the DIN rail
• High temperature resistance from -60°C to 130°C
• Easy plug-in mounting without tools
• RoHS and REACH compliant for environmental safety

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution units
• Machine and plant engineering

Key specifications

• Product Type: Cross-connector
• Number of Poles: 10
• Rated Voltage: 800 V
• Rated Current: 24 A
• Nominal Conductor Cross-Section: 2.5 mm²
• Material: Polyamide (PA)
• Color: Yellow
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -60 to 130 °C
• Mounting Type: Plug-in
• Packaging Quantity: 20 pieces
• Series: WQV
• Connection Type: Cross-connection

Recommendations

For optimal performance, use with Weidmüller WDU 2.5 or ZDU 2.5 terminal blocks. Ensure proper installation according to manufacturer guidelines.
