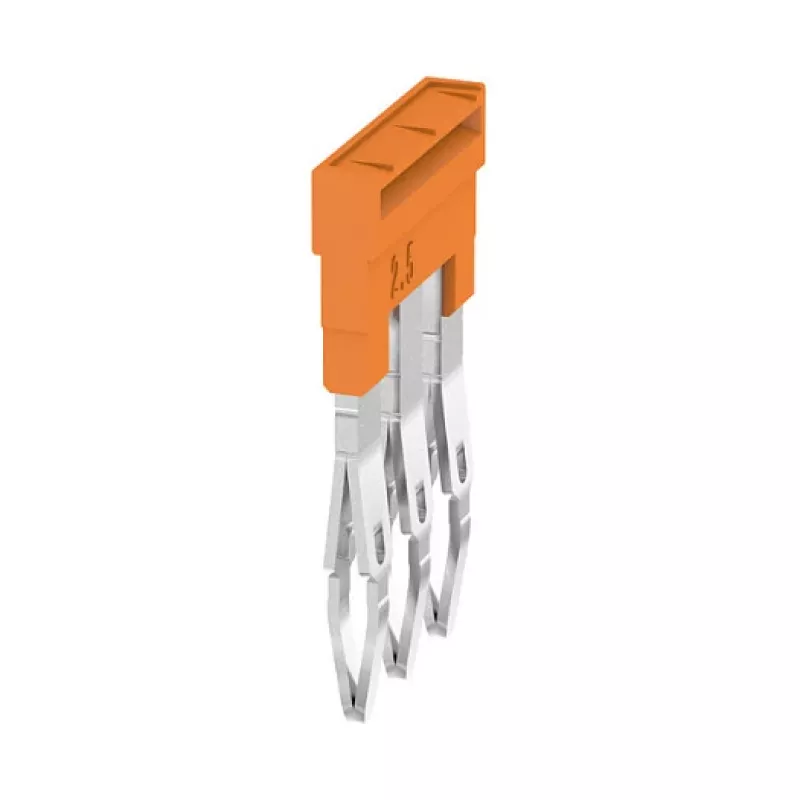

Weidmüller ZQV 2.5N 3 Connettore trasversale, serie A, 2,5 mm², 3 poli, arancione

The Weidmüller ZQV 2.5N 3 is a high-quality cross-connector (jumper) designed for use with Weidmüller A-Series terminal blocks. It enables efficient and reliable electrical connections between adjacent terminals, simplifying wiring and reducing installation time. With a nominal cross-section of 2.5 mm² and 3 poles, this jumper is ideal for distributing power or signals in control cabinets and industrial applications.

Advantages

• Simplifies wiring by connecting multiple terminals in one step
• Saves space and reduces wiring errors
• High reliability with rated voltage up to 800 V and rated current up to 24 A
• Robust insulation material (WEMID) with UL 94 V-0 flammability rating
• Wide operating temperature range from -50 °C to +120 °C

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Power distribution and signal wiring
• Applications requiring cULus, IECEx, ATEX, or EAC approvals

Key specifications

• Product Type: Cross-Connector / Jumper
• Number of Poles: 3
• Nominal Cross-Section: 2.5 mm²
• Series: A-Series
• Pitch / Grid Dimension: 5.1 mm
• Rated Voltage (IEC): 800 V
• Rated Impulse Voltage (IEC): 8 kV
• Rated Current (IEC): 24 A
• Insulation Material: WEMID
• Colour: Orange
• Operating Temperature Range: -50 °C to +120 °C
• Flammability Rating: UL 94 V-0
• Mounting Type: Plug-in
• Connection Type: Direct Plug-in
• Approvals: cULus, IECEx, ATEX, EAC
• Environmental Compliance: RoHS, REACH

Recommendations

For optimal performance, use this cross-connector with Weidmüller A-Series terminal blocks (e.g., WDU 2.5N, WSI 2.5N). Ensure proper installation by inserting the jumper fully into the terminal block slots until it clicks into place. Always verify compatibility with your specific terminal block model.
