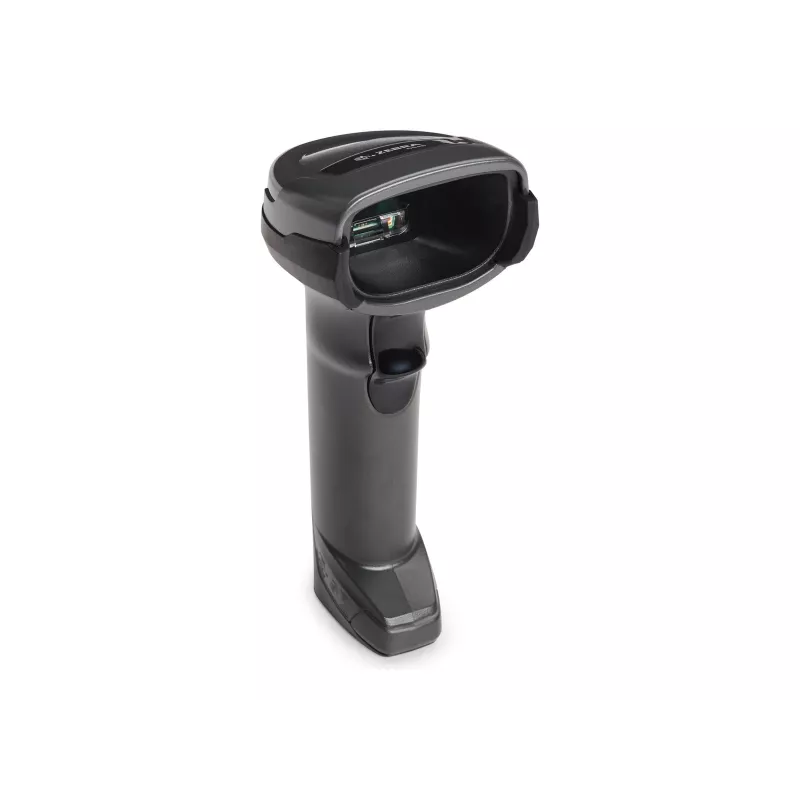

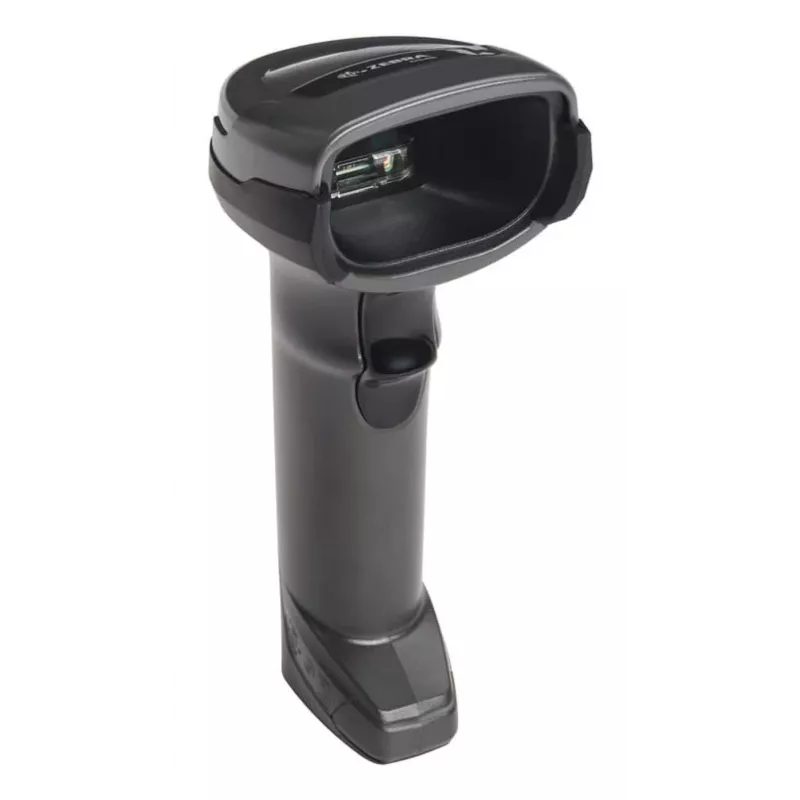

Zebra DS4678-SR Black Presentation Cradle USB KIT DS4678-SR00007ZZWW Scanner - lettore di codici a barre

Scanning barcodes in retail, warehouse, or healthcare environments often means choosing between mobility and reliable data capture. The Zebra DS4678-SR eliminates that compromise with a cordless 2D imager that pairs seamlessly with its presentation cradle, delivering fast, accurate reads whether you're scanning items at a counter or moving through the aisle. This kit includes the scanner, cradle, and USB cable, so you can start scanning right out of the box.

Who is it for

This scanner is built for businesses that need flexible, high-performance barcode capture without being tethered to a workstation. It's ideal for retail point-of-sale, inventory management, light warehouse picking, and healthcare patient identification. If your team handles 1D, 2D, or PDF417 barcodes and needs the freedom to scan up to 300 feet away from the cradle, the DS4678-SR is a practical choice.

Main features

• Cordless convenience with Bluetooth 4.0 connectivity to the cradle, giving you up to 300 ft / 100 m line-of-sight range.
• Presentation cradle enables hands-free scanning when docked, automatically switching to handheld mode when lifted.
• High-performance 2D area imager captures 1D, 2D, and PDF417 barcodes, including those on mobile screens.
• Standard range (SR) optics provide a wide field of view (48° horizontal, 30.6° vertical) for easy aiming.
• Rugged design with IP52 sealing and 5 ft / 1.5 m drop resistance to concrete, built for daily use.
• Long-lasting 2500 mAh lithium-ion battery delivers up to 70,000 scans per charge, minimizing downtime.
• USB connection from cradle to host for simple plug-and-play setup with most systems.

Specifications

• Scanner type: Cordless 2D area imager
• Scan capability: 1D, 2D, PDF417
• Connectivity: Bluetooth 4.0 (scanner to cradle), USB (cradle to host)
• Colour: Black
• Durability: IP52, 5 ft / 1.5 m drop to concrete
• Battery: Rechargeable lithium-ion, 2500 mAh
• Scans per charge: Up to 70,000
• Wireless range: Up to 300 ft / 100 m line of sight
• Aiming pattern: Circular 617nm amber LED
• Illumination: 660nm red LED
• Field of view: 48° horizontal, 30.6° vertical
• Motion tolerance: 30 in / 76.2 cm per second
• Minimum print contrast: 15%
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Included components: DS4678-SR scanner, presentation cradle, USB cable

Tips

To maximize battery life, dock the scanner in the cradle when not in use—it charges automatically. For scanning barcodes on glossy or curved surfaces, adjust the angle slightly to reduce glare. The cradle can be positioned for hands-free scanning; ensure the scanner is firmly seated to maintain a stable connection.
