BlueOptics Ubiquiti UACC-OFC-MA-MPMP-1M cavo patch MPO-MPO multimodale OM4 1 metro

With a bandwidth of 4700 MHz·km at 850 nm and support for up to 100 Gbps, this MPO-MPO OM4 patch cable is built for high-density data center links where every milliwatt counts.

Overview

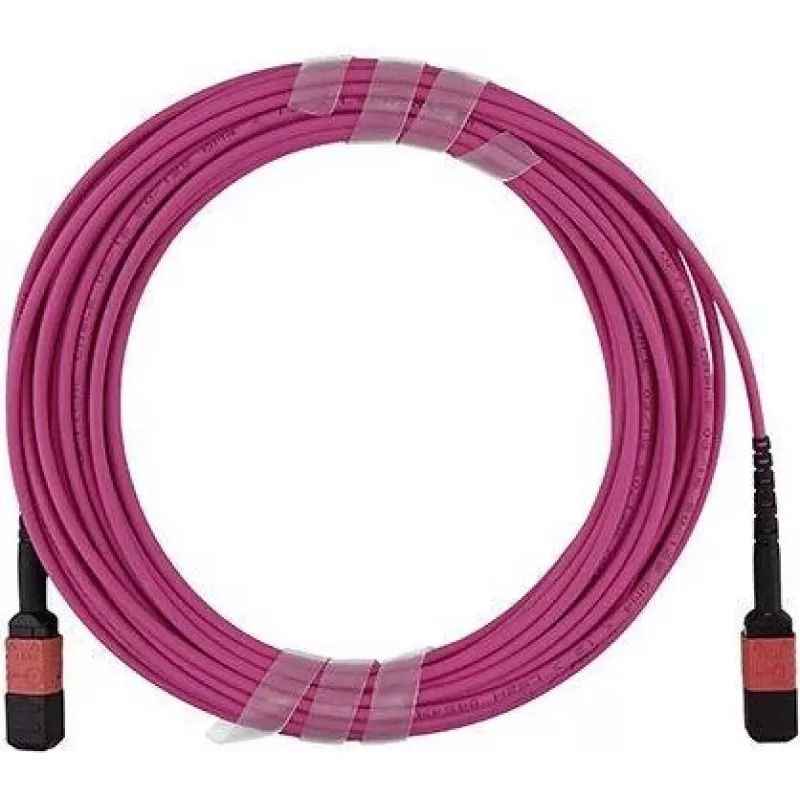

The BlueOptics UACC-OFC-MA-MPMP-1M is a 1-meter multi-mode fiber optic patch cable featuring MPO connectors on both ends. It is engineered for 12-fiber parallel optics applications such as 100GBASE-SR4, making it an ideal choice for backbone connections in data centers, SANs, and high-performance LANs. The cable uses 50/125 µm OM4 fiber with a low insertion loss of less than 0.35 dB per connector, ensuring reliable signal integrity over short distances.

What stands out

• MPO to MPO connectivity for 12-fiber parallel transmission
• OM4 multi-mode fiber supports 100 Gbps up to 100 meters
• Ceramic ferrule connectors for durability and precision
• Aqua jacket for easy identification in high-density environments
• Compatible with Ubiquiti UACC-OFC-MA series equipment

Technical details

• Cable type: Fiber optic patch cable
• Fiber type: Multi-mode OM4
• Connector A: MPO (Multi-fiber Push-on)
• Connector B: MPO (Multi-fiber Push-on)
• Cable length: 1 meter
• Fiber count: 12 fibers
• Core/cladding diameter: 50/125 µm
• Jacket color: Aqua
• Maximum bandwidth: 4700 MHz·km @ 850 nm
• Supported data rates: Up to 100 Gbps (e.g., 100GBASE-SR4)
• Typical insertion loss: < 0.35 dB per connector
• Typical return loss: > 20 dB
• Connector ferrule material: Ceramic
• Operating temperature: -20°C to 70°C

Our verdict

A dependable, high-performance MPO-MPO cable that delivers the bandwidth and low loss required for modern 40G and 100G parallel optic links, all in a compact 1-meter length.
