Cavo di rete PATCHBOX C36STPXC6AXX1G verde 0,8 m Cat6a U/FTP (STP)

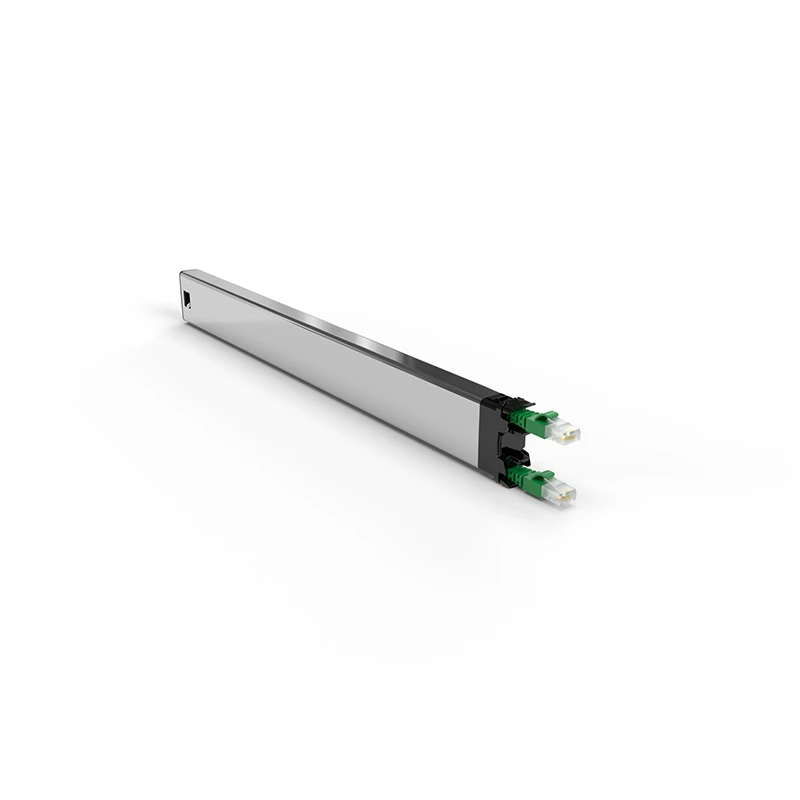

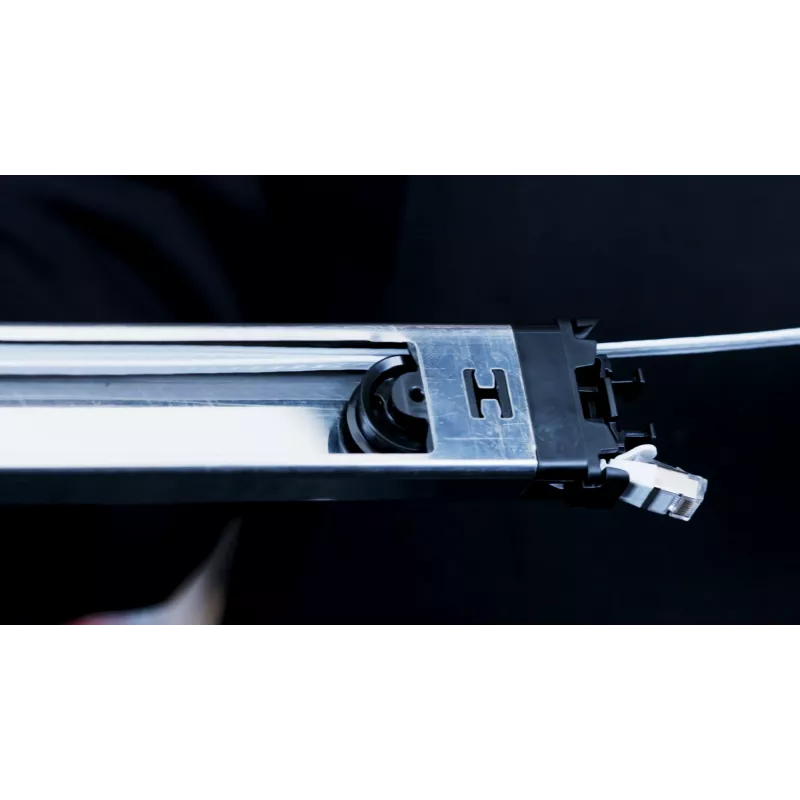

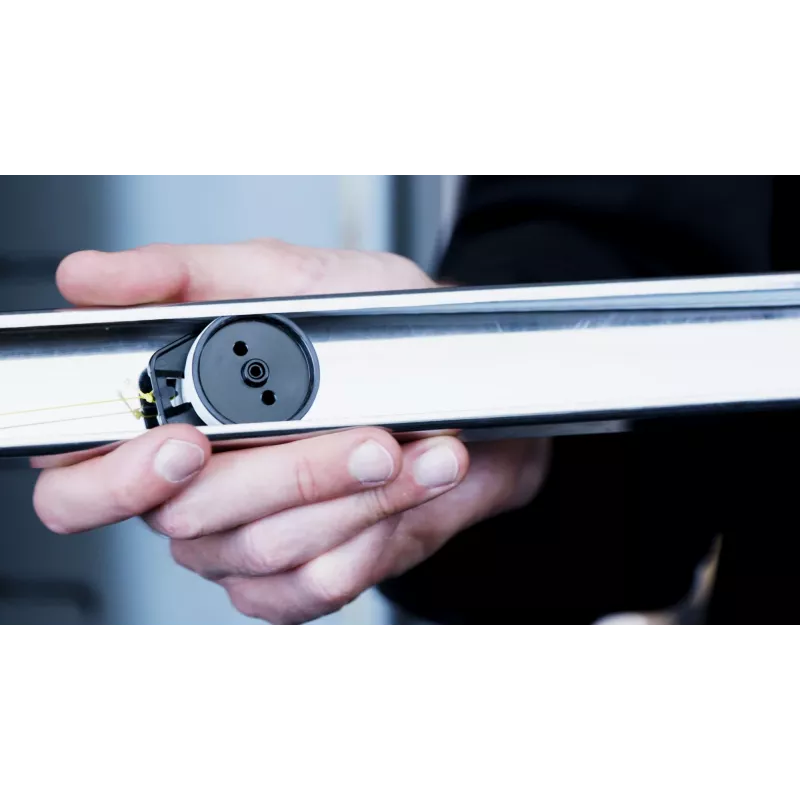

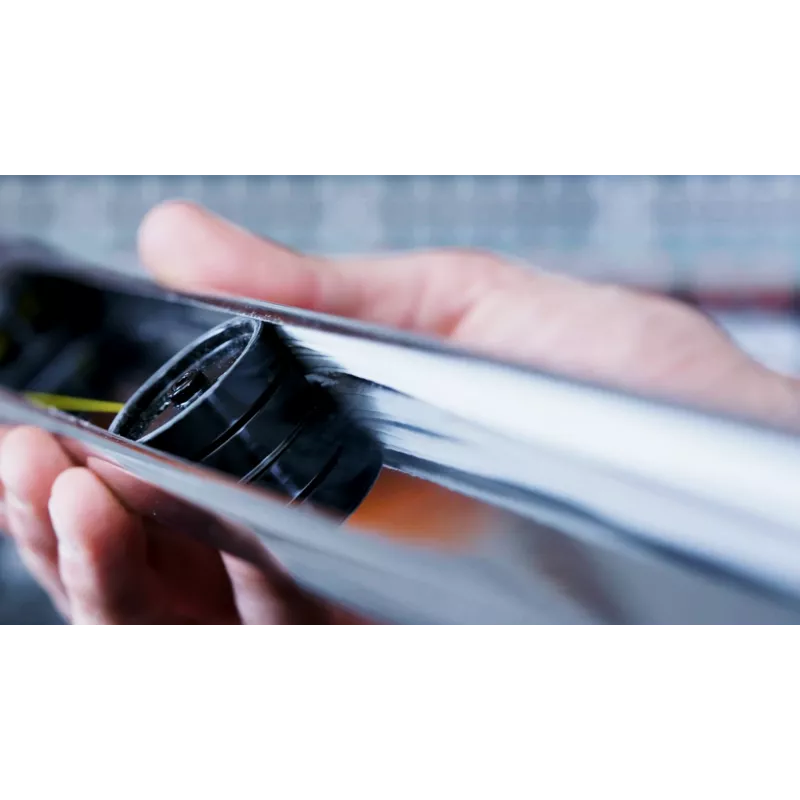

The PATCHBOX C36STPXC6AXX1G is a 0.8 m Cat6a networking cable designed for high-speed data transfer up to 10000 Mbit/s. It features U/FTP shielding to reduce electromagnetic interference, gold-plated RJ-45 connectors for improved conductivity and corrosion resistance, and a flat twisted-pair design compatible with PATCHBOX® Cassettes and Frames. The cable is part of the PATCHBOX® modular cassette system and is available in vibrant green to help identify connections in network cabinets.

Advantages

This Cat6a cable is tested to ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and PoE capable. The U/FTP shielding provides enhanced protection against crosstalk and external noise, while gold-plated RJ-45 connectors ensure reliable signal transmission. The flat twisted-pair design eases routing inside racks and cassettes, and the cable is compatible with PATCHBOX® cassettes and frames for a modular, organized installation.

Suitable for

• High-speed Ethernet connections up to 10 Gbit/s in data centers and server rooms
• Patch panels and PATCHBOX® modular cassette installations
• Environments requiring reduced electromagnetic interference (shielded links)
• PoE applications (STP: PoE; UTP: PoE++ where applicable within PATCHBOX system)

Key specifications

• Length: 0.8 m
• Category: Cat6a (10GBASE-T)
• Shielding: U/FTP
• Connector: RJ-45 with gold-plated contacts
• Data rate: up to 10000 Mbit/s
• Standards: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel tested
• Compliance: RoHS
• Color: Green (PATCHBOX® color option)

How to use

Connect the gold-plated RJ-45 plugs to corresponding network ports on switches, patch panels or devices. Route the flat cable through PATCHBOX® cassettes and frames for secure and tidy cable management; ensure the cable follows the cassette's guidance to maintain bend radius and minimize strain. Confirm that the shield is properly terminated when used in shielded installations to maintain U/FTP effectiveness.

Recommendations

Use this PATCHBOX Cat6a cable within the PATCHBOX® modular system and pair it with compatible PATCHBOX® Frames (Plus+ or 365) and cassettes. For shielded installations, verify correct grounding and shield termination. Avoid sharp bends and keep cable runs within recommended lengths for optimal 10 Gbit/s performance.
