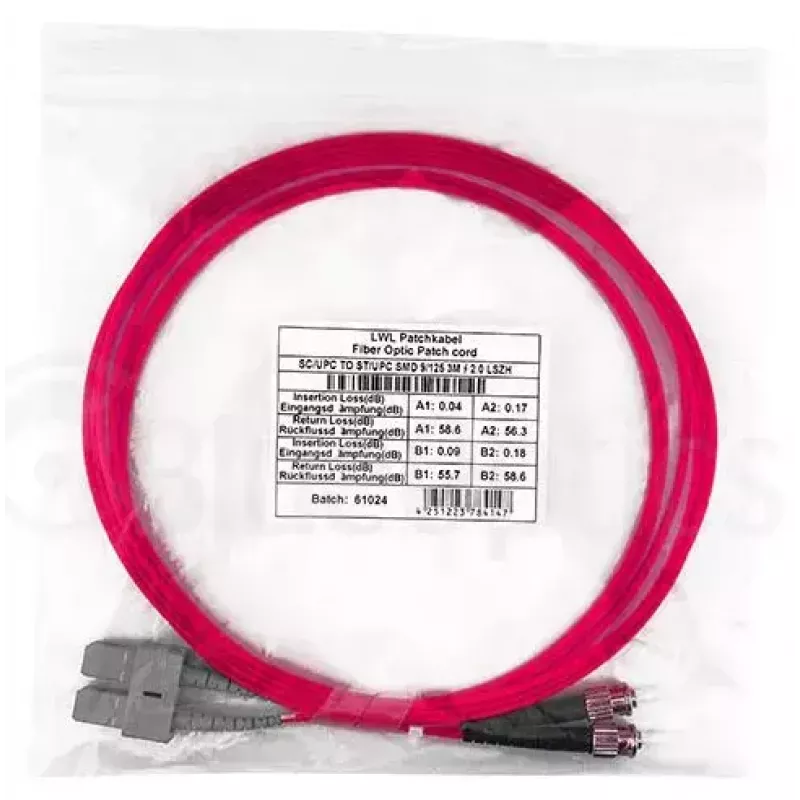

Cavo in fibra ottica InfiniBand BlueOptics SFP3233FU1MK 1 m SC ST OM4

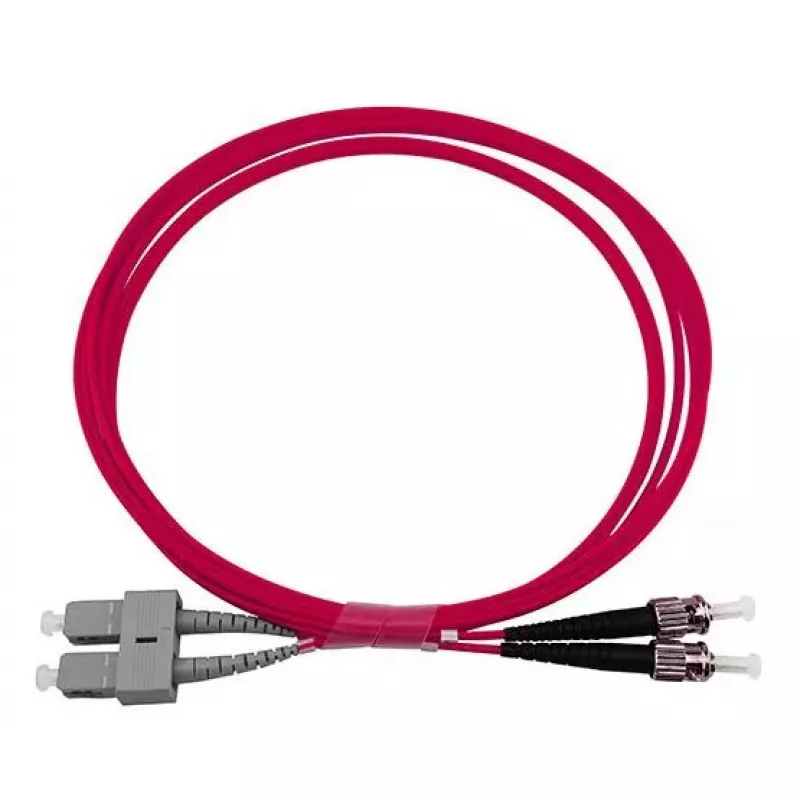

The BlueOptics SFP3233FU1MK InfiniBand fibre optic cable is a 1 m duplex patch cord with SC/UPC on one end and ST/PC on the other, designed for multimode OM4 fibre (50 µm core). Magenta-coloured and optimized for 850 nm operation, this cable provides a standard solution for short-reach, high-bandwidth connections between patch panels, transceivers and active networking equipment. The cable uses a flame-retardant LSZH jacket and is intended for environments where low smoke and halogen-free performance is required.

Advantages

The OM4 multimode fibre provides improved bandwidth and lower attenuation compared with lower-grade multimode fibres, supporting high-speed InfiniBand data transmission. SC and ST connectors with zirconia ceramic ferrules ensure stable optical alignment and durability, with connector lifetimes rated up to typical industry mating cycle counts. Production testing with interferometer and OTDR confirms low insertion loss and high return loss, and each cable ships with measured loss values.

Suitable for

Key specifications

How to use

Inspect connector endfaces before installation and keep protective caps in place until connection. Plug the SC connector into compatible SC ports and the ST connector into ST ports or transceivers, ensuring correct orientation and secure latching. Route the cable without tight bends and avoid stress at connector boots; maintain the manufacturer’s minimum bend radius for multimode OM4 fibre. After installation, verify link integrity with appropriate optical test equipment and consult the supplied measurement protocol for insertion and return loss values.

Recommendations

For reliable performance, use this 1 m OM4 patch cord in short-reach, high-bandwidth multimode links operating at 850 nm. Store and handle connectors using dust caps, avoid kinks and excessive pulling forces, and perform periodic inspection and cleaning of endfaces to maintain low insertion loss and return loss.
