Connettore coassiale DeLOCK 89774

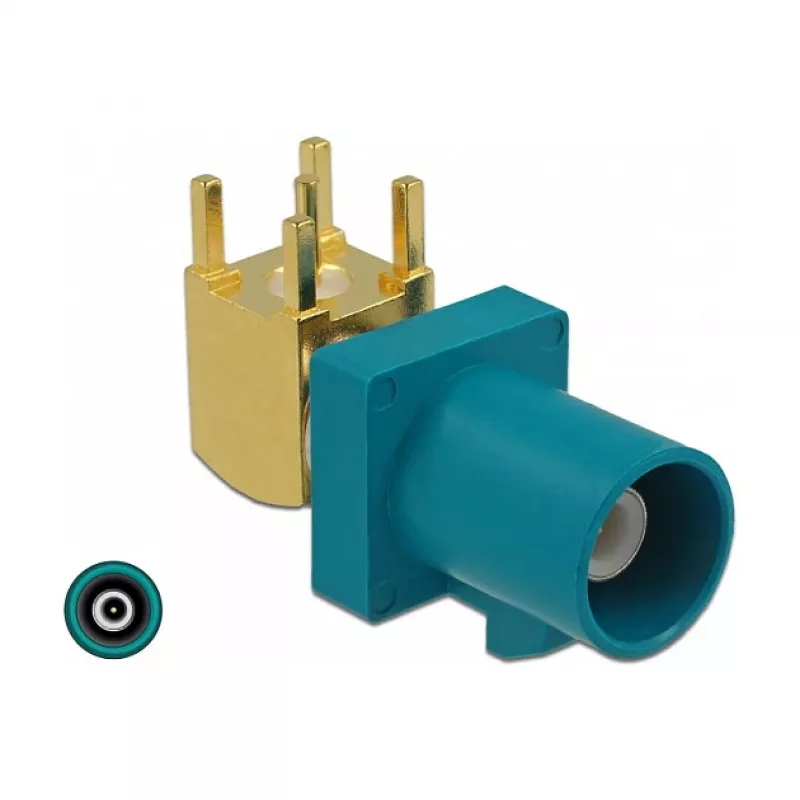

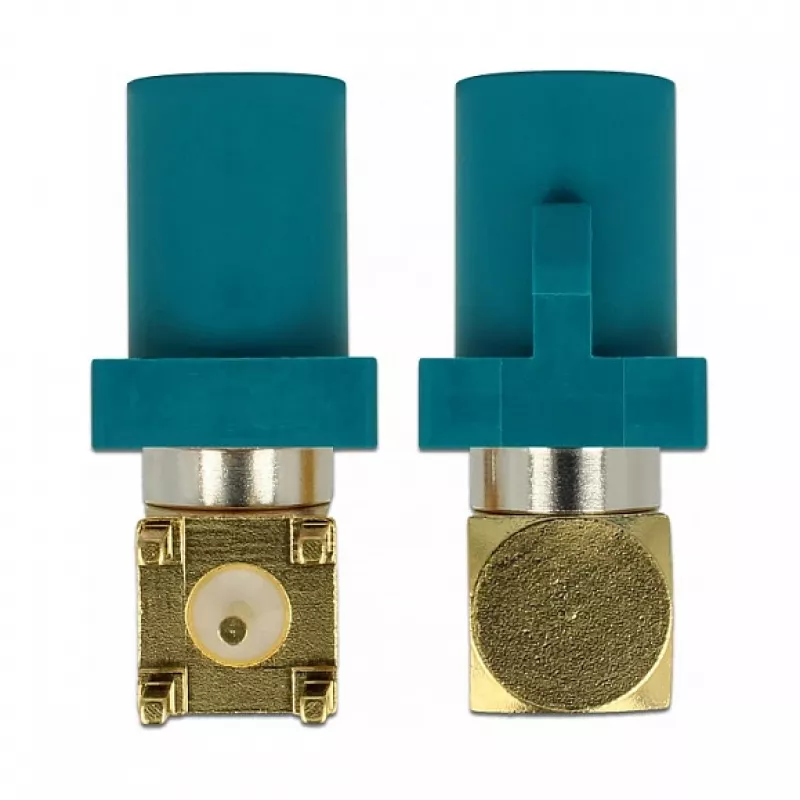

The DeLOCK 89774 coaxial connector is a FAKRA C male connector angled at 90°, designed for reliable connections in radio frequency systems. It measures 11.5 mm in width and 21.3 mm in depth and is supplied individually in a polybag.

Advantages

This coaxial connector provides a standardized FAKRA C male interface for secure RF component connections. The 90° angle helps when space is limited or when cable routing requires a right-angle termination. Compact dimensions and single-unit packaging make it suitable for repair, replacement or custom installations.

Suitable for

Key specifications

How to use

Align the FAKRA C male connector with the corresponding female socket and insert until it engages. Use the 90° orientation to route the cable as required and ensure the connection is secure before powering the system. Handle the connector by its body to avoid stress on the cable and verify correct mating with the matching FAKRA C female component.

Recommendations

For reliable performance, use the connector with compatible FAKRA C female counterparts and avoid excessive bending near the termination. Inspect mating parts for damage or contamination before installation and store unused units in their polybag to protect contacts.
