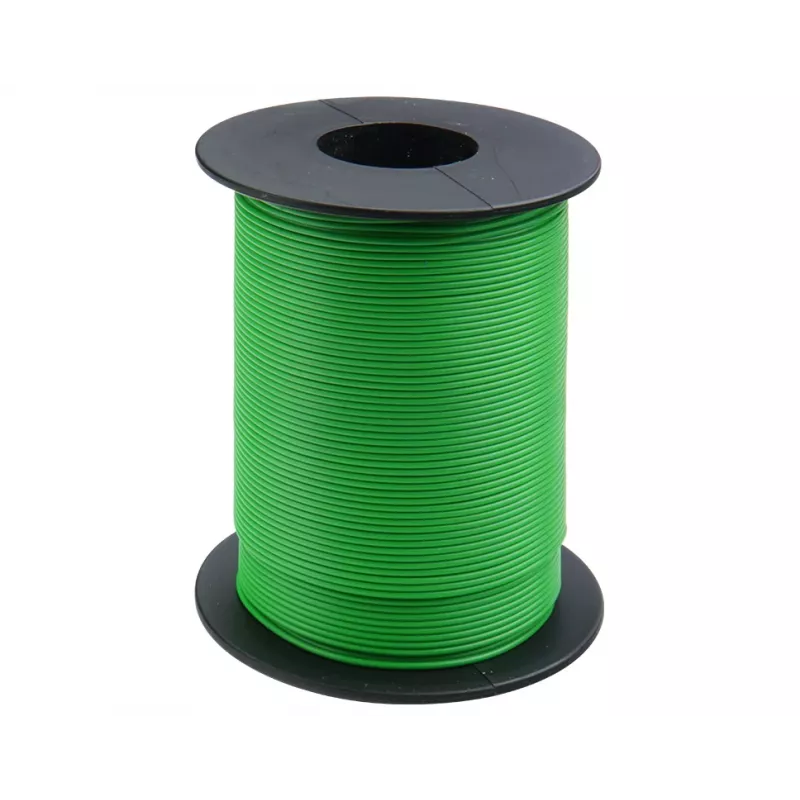

Donau Elektronik 119-14 filo flessibile 1 x 0,14 mm² verde 100 m

With a conductor cross-section of 0.14 mm² and a length of 100 m, this stranded wire is suited for general-purpose wiring and signal applications. The green PVC insulation provides clear identification in low-voltage circuits.

Overview

The Donau Elektronik 119-14 is a single-core stranded wire with a copper conductor and PVC insulation. It is supplied on a reel for convenient dispensing.

What stands out

• Stranded copper conductor for flexibility
• Green insulation for easy circuit identification
• 100 m reel length for extended use

Technical details

• Conductor cross-section: 0.14 mm²
• Number of cores: 1
• Conductor material: Copper
• Insulation material: PVC
• Insulation colour: Green
• Length: 100 m
• Nominal voltage: 300 V
• Operating temperature range: -20 °C to +70 °C
• Outer diameter: 1.2 mm
• Conductor construction: 18 x 0.1 mm
• Max. current rating: 1.5 A
• Conductor resistance: 135 Ohm/km
• Wire gauge (AWG equivalent): 26 AWG
• Packaging: Reel

Our verdict

A reliable stranded wire for low-voltage signal and wiring tasks, offered in a practical 100 m reel.
