EFB Elektronik MPO-PLUS (F) su LC cavo trunk, OM4, 12 fibre, tipo B, LSZH, viola erica, 1 m MPOF12LCOM4-1

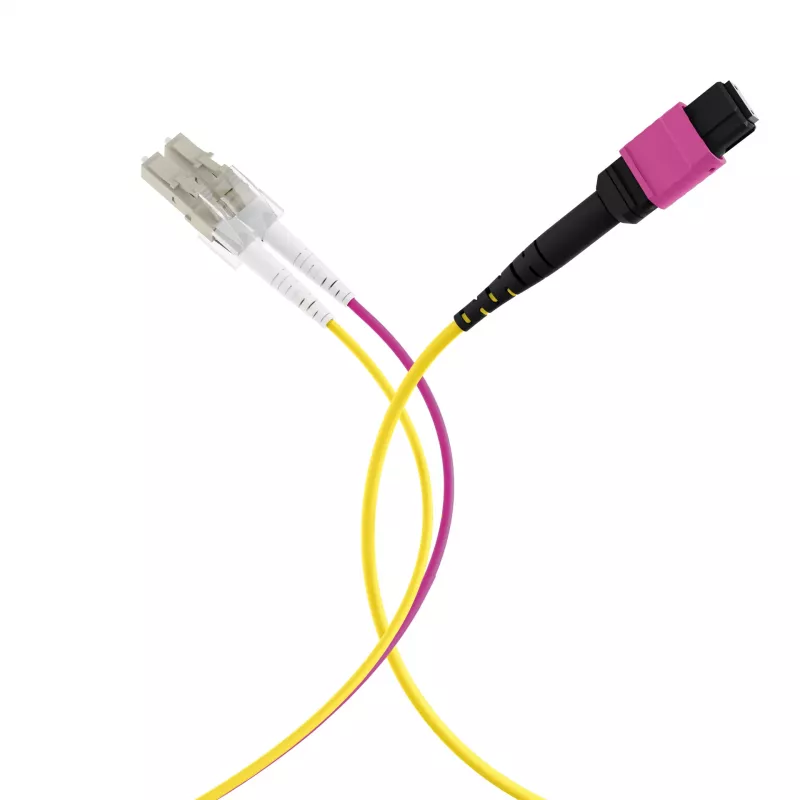

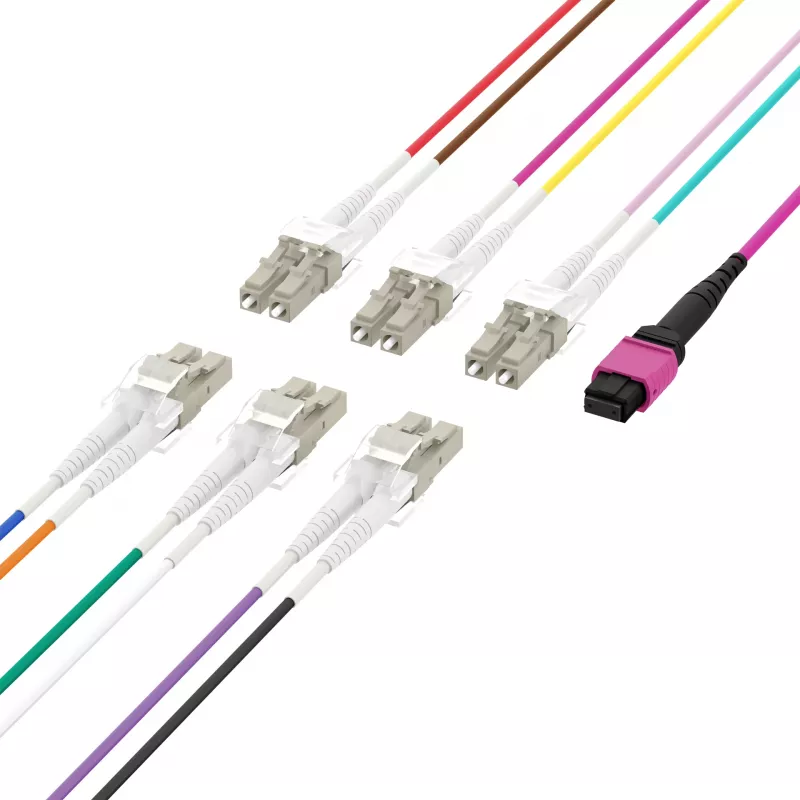

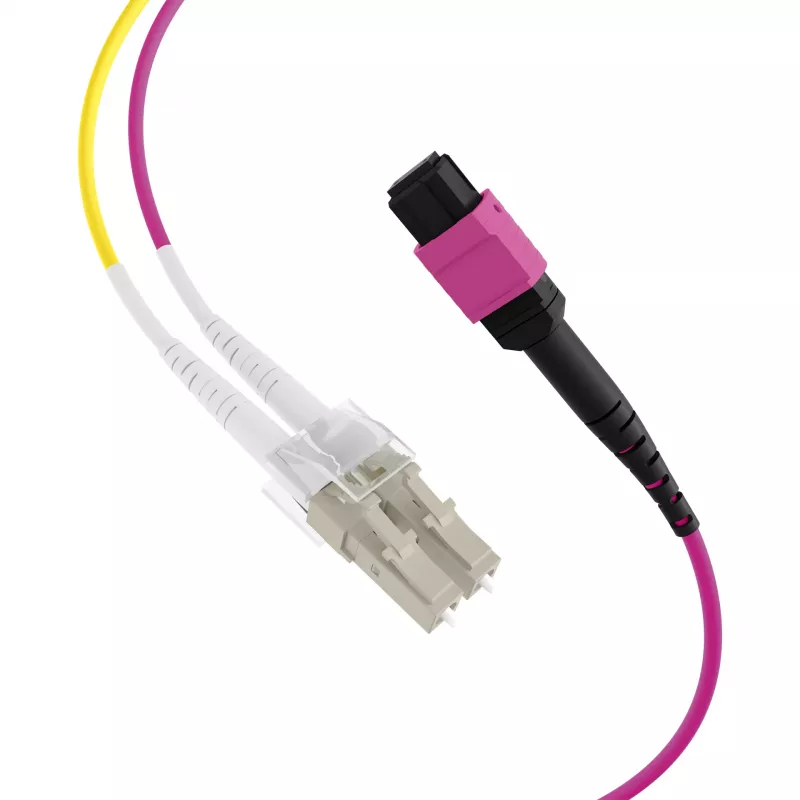

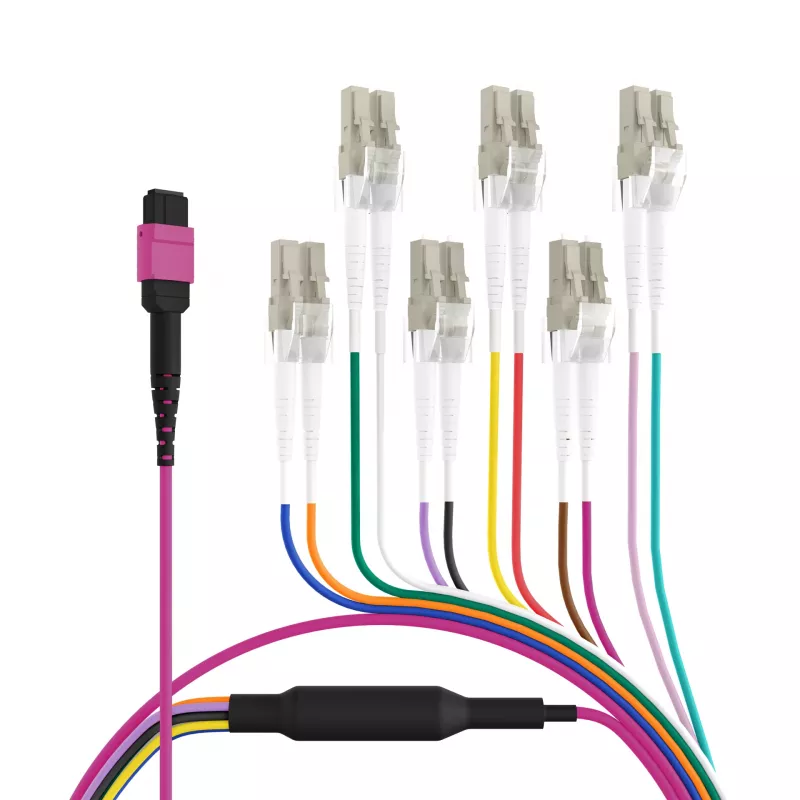

This EFB Elektronik trunk cable stands out with its MPO-PLUS female connector on one end and six LC duplex connectors on the other, enabling a clean breakout from high-density MPO ports to individual LC interfaces. The 12-fiber OM4 multimode construction supports parallel optic transmission for 40G, 100G, 200G, and 400G Ethernet applications, while the Type B polarity method ensures correct signal routing in crossover configurations. The low-smoke zero-halogen (LSZH) jacket in Erika Violet provides fire safety and easy identification in indoor installations.

Highlights

• MPO-PLUS female to 6x LC duplex breakout
• 12 OM4 multimode fibers (50/125 µm)
• Type B polarity for crossover connectivity
• LSZH jacket in Erika Violet for safety and visibility
• Supports 40G/100G/200G/400G Ethernet

In daily use

This trunk cable simplifies high-density fiber patching in data centers and enterprise networks. The MPO-PLUS connector offers enhanced performance and reliability compared to standard MPO, while the breakout to LC duplex allows direct connection to transceivers or patch panels. The 1-meter length is ideal for short links within racks or between adjacent cabinets.

Full specifications

• Fiber type: OM4 multimode
• Fiber count: 12
• Connector A: MPO-PLUS female
• Connector B: 6x LC duplex
• Polarity: Type B
• Cable length: 1 m
• Jacket material: LSZH
• Jacket color: Erika Violet
• Core/cladding diameter: 50/125 µm
• Supported wavelengths: 850 nm, 1300 nm
• Application: Indoor

Final note

Engineered for high-performance multimode fiber systems, this EFB Elektronik trunk cable delivers reliable connectivity for modern data center architectures.
