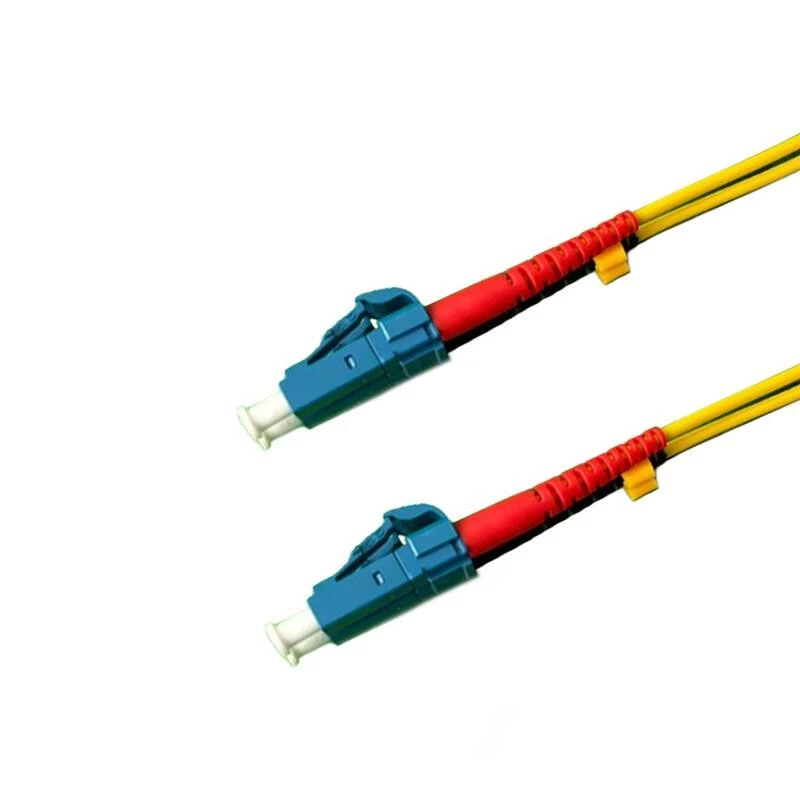

Grafenthal Cavo in fibra ottica OS2 LC/UPC-LC/UPC LSZH 1,00m giallo

The Grafenthal Optical Fibre Cable OS2 is a high-performance single-mode duplex patch cable designed for reliable data transmission in demanding network environments. With LC/UPC connectors on both ends and a 1.00-meter length, this cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, LAN, SAN, and FTTx applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety by emitting minimal smoke and no toxic halogen in case of fire, while the yellow color facilitates easy identification.

Advantages

This fibre optic cable offers superior signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The OS2 single-mode fibre (G.652.D) supports wavelengths of 1310nm and 1550nm, ensuring long-distance transmission with low attenuation. The duplex design (2 fibres) enables bidirectional communication, and the LSZH jacket meets stringent safety standards for use in confined spaces.

Suitable for

• Data center cabling infrastructure
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx (Fiber to the x) deployments

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Single-mode
• Fibre Type: OS2 (G.652.D)
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Connector Polish: UPC
• Cable Length: 1.00 m
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Core/Cladding Diameter: 9/125 µm
• Fibre Count: Duplex (2 Fibres)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with standard LC/UPC interfaces.
