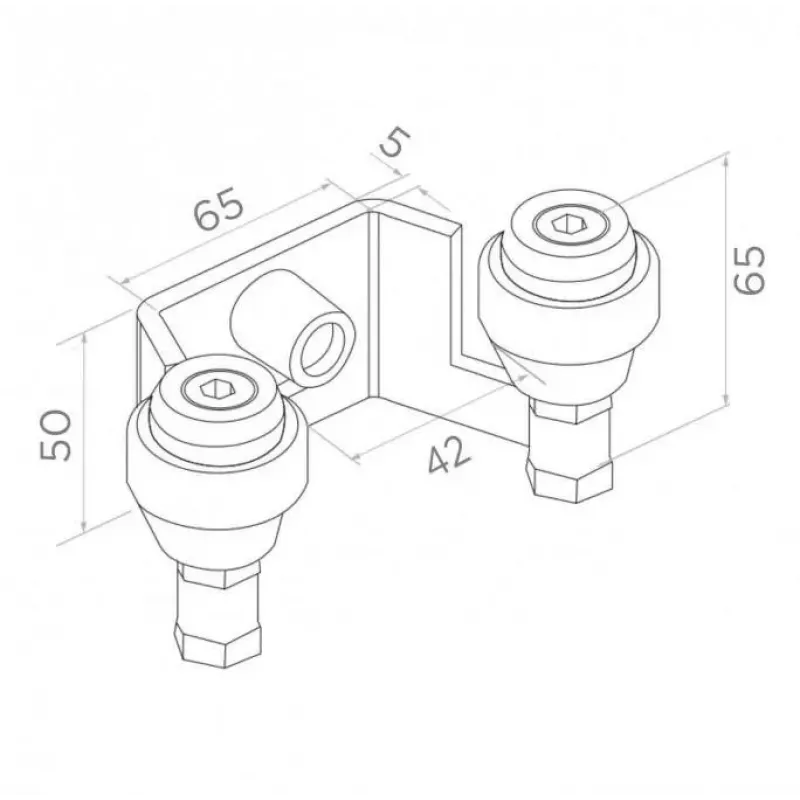

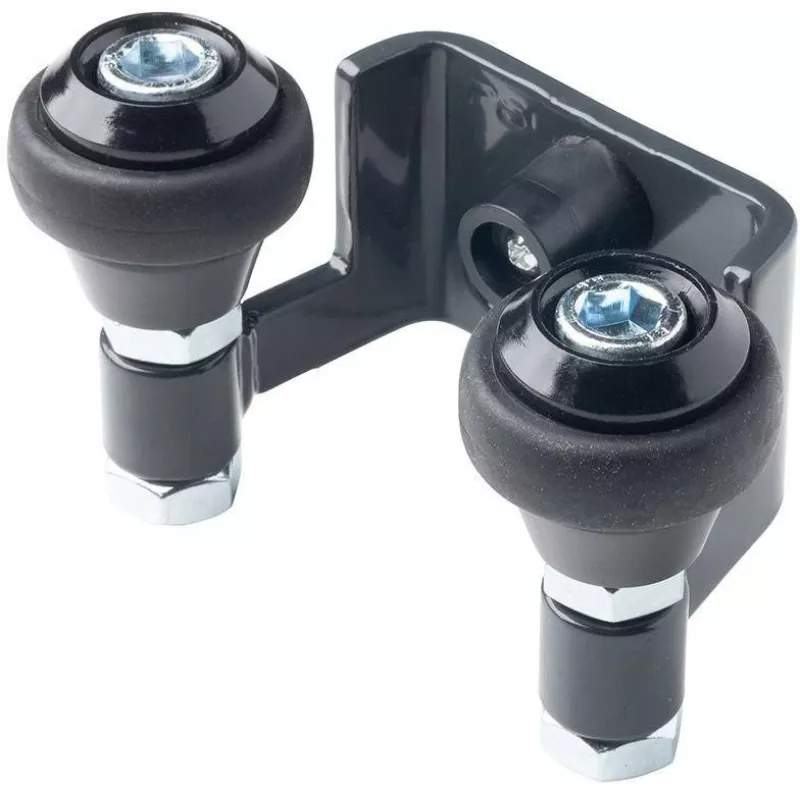

PSG 60.022.7016 staffa superiore di guida per porte scorrevoli, rulli 42 mm, grigio antracite RAL7016

Upper gate guide bracket engineered to prevent tilting and ensure smooth, quiet operation for sliding gates. This PSG 60.022.7016 bracket features two 42mm polyamide rollers that glide along the gate track, providing lateral stability and reducing wear on the gate structure. The anthracite grey powder-coated steel body (RAL7016) offers high corrosion resistance, making it suitable for outdoor use in all weather conditions. Installation is straightforward with bolt-on mounting, and the bracket is designed for top mounting on sliding gate systems.

Advantages

Two 42mm rollers distribute load evenly, minimizing friction and noise. The polyamide rollers are wear-resistant and operate smoothly without lubrication. The steel body with powder coating resists rust and UV damage, ensuring long service life. The anthracite grey finish blends with modern gate designs and matches RAL7016 colour standards.

Suitable for

• Sliding gates in residential and commercial properties
• Gates requiring upper guidance to prevent swaying
• Outdoor installations exposed to rain, snow, and sunlight
• Retrofit or new gate constructions with 42mm roller compatibility

Key specifications

• Product type: Gate guide bracket
• Mounting position: Upper / top mount
• Number of rollers: 2
• Roller diameter: 42 mm
• Colour: Anthracite grey (RAL 7016)
• Main body material: Steel
• Roller material: Polyamide (PA)
• Finish: Powder coated
• Corrosion resistance: Yes
• Function: Prevents gate tilting, ensures smooth operation
• Installation method: Bolt-on
• Weather resistance: High

Recommendations

For optimal performance, ensure the bracket is mounted level and the rollers align with the gate track. Periodically inspect rollers for debris and clean if necessary to maintain smooth operation.
