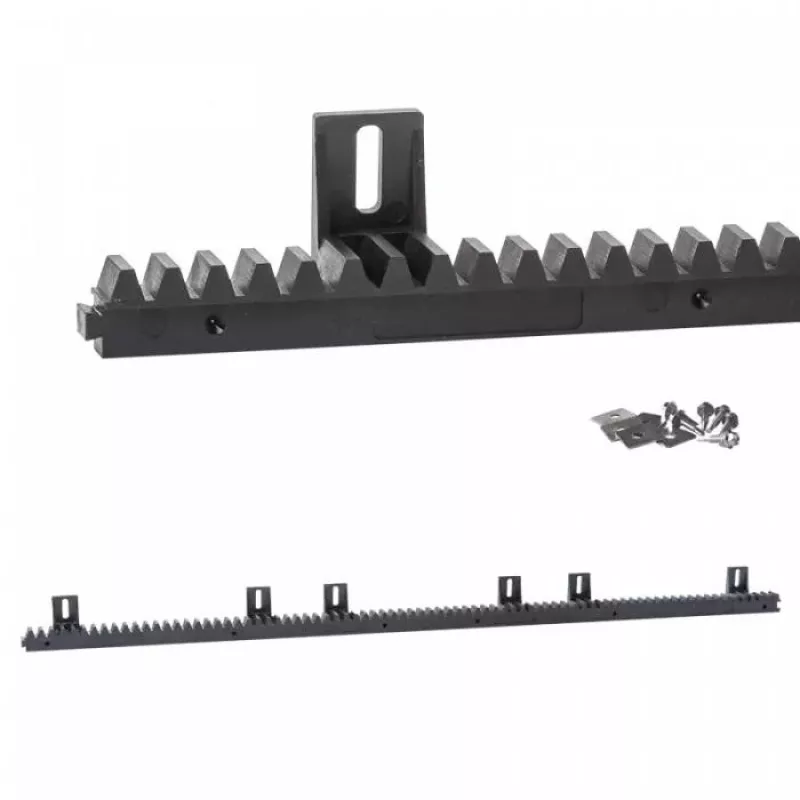

PSG Premium Gear Rack 60.056.01 per 800 kg - 20/1000 mm - nylon

The PSG Premium Gear Rack 60.056.01 is a high-quality nylon (polyamide) rack designed for sliding gate automation systems. With a maximum gate weight capacity of 800 kg and a length of 1000 mm, this gear rack ensures reliable and smooth operation for heavy-duty gates. Its M4 tooth module and straight tooth profile provide excellent compatibility with standard pinion gears.

Advantages

This gear rack offers low-noise operation, high impact resistance, and excellent weather and UV resistance, making it ideal for outdoor installations. The bolt-on mounting with integrated spacers simplifies installation and ensures a secure fit.

Suitable for

• Sliding gate automation systems
• Heavy-duty gates up to 800 kg
• Outdoor and indoor applications

Key specifications

• Product Type: Gear Rack
• Material: Nylon (Polyamide)
• Maximum Gate Weight Capacity: 800 kg
• Length: 1000 mm
• Tooth Module: M4
• Tooth Profile: Straight
• Mounting Method: Bolt-on with integrated spacers
• Color: Black
• UV Resistance: Yes
• Weather Resistance: Yes
• Noise Reduction: Low-noise operation
• Durability: High impact resistance, corrosion-resistant
• Cross-Section Dimensions: 20mm (Height) x 20mm (Width)
• Compatibility: Universal with M4 pinion gears
• Quality Grade: Premium
• Operating Temperature Range: -20°C to +60°C

Recommendations

For optimal performance, ensure the gear rack is properly aligned with the pinion gear and securely mounted. Regular inspection and cleaning are recommended to maintain longevity.
