ROLINE RM Cavo patch U/FTP Cat.6A Class EA Slim grigio 2m 21.45.3305

Experience 10 Gigabit Ethernet over a slim, flexible cable. This ROLINE RM U/FTP patch cable delivers Cat.6A performance up to 500 MHz in a space-saving design, ideal for high-density patching in data centres and offices.

Overview

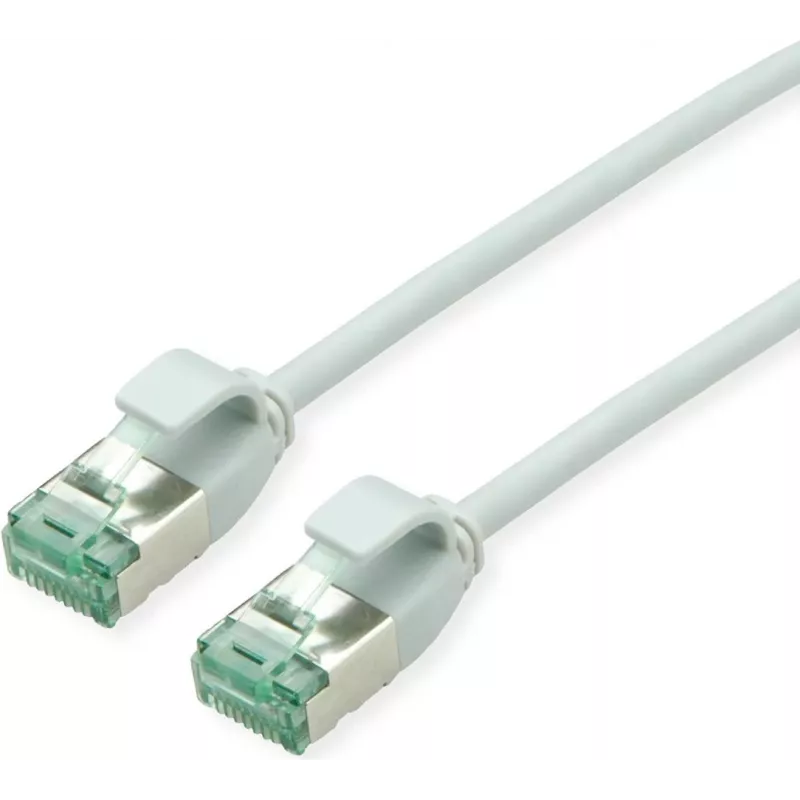

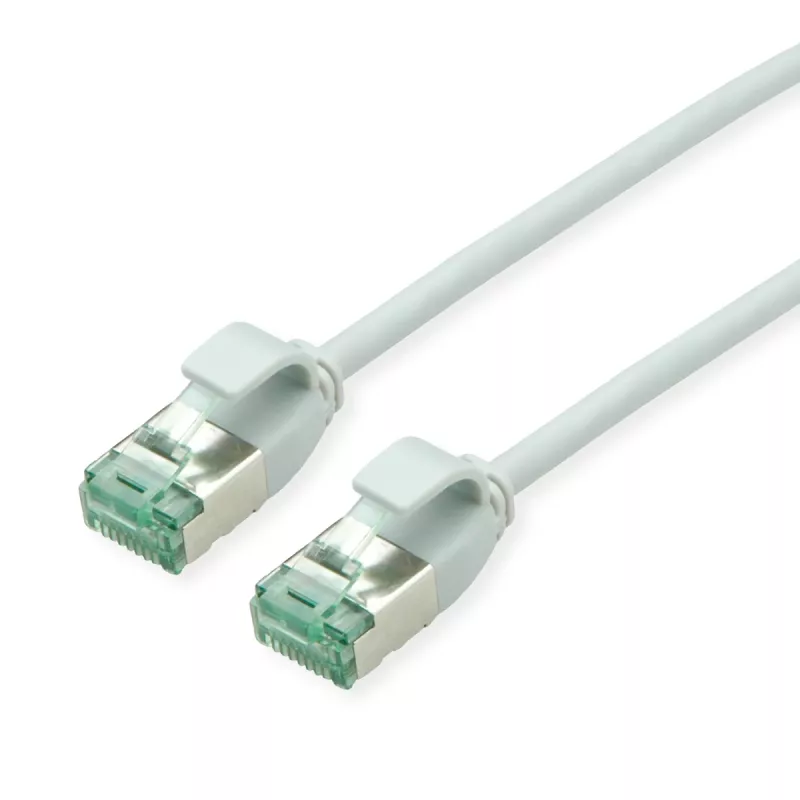

The ROLINE RM U/FTP Patch Cable is a 2-metre grey slim-line cable with RJ45 male connectors on both ends. It is built with 28 AWG copper conductors and an overall foil screen (F/UTP) to protect against electromagnetic interference. The LSZH jacket ensures low smoke and zero halogen emissions in case of fire, making it suitable for enclosed spaces.

What stands out

• Supports 10GBASE-T for high-speed network connections
• Slim cable design reduces clutter and improves airflow in racks
• LSZH jacket for enhanced safety in public and office environments
• Snagless boot protects the locking tab during installation
• RoHS compliant construction

Technical details

• Length: 2 m
• Cable type: U/FTP (F/UTP) – overall foil screen
• Category: Cat.6A, Class EA
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Conductor: Copper, AWG 28
• Impedance: 100 Ohm
• Wiring: TIA/EIA 568B
• Connector: RJ45 male to RJ45 male
• Jacket: LSZH

Our verdict

A reliable, high-performance slim patch cable that combines Cat.6A speed with a compact, halogen-free design for modern network installations.
