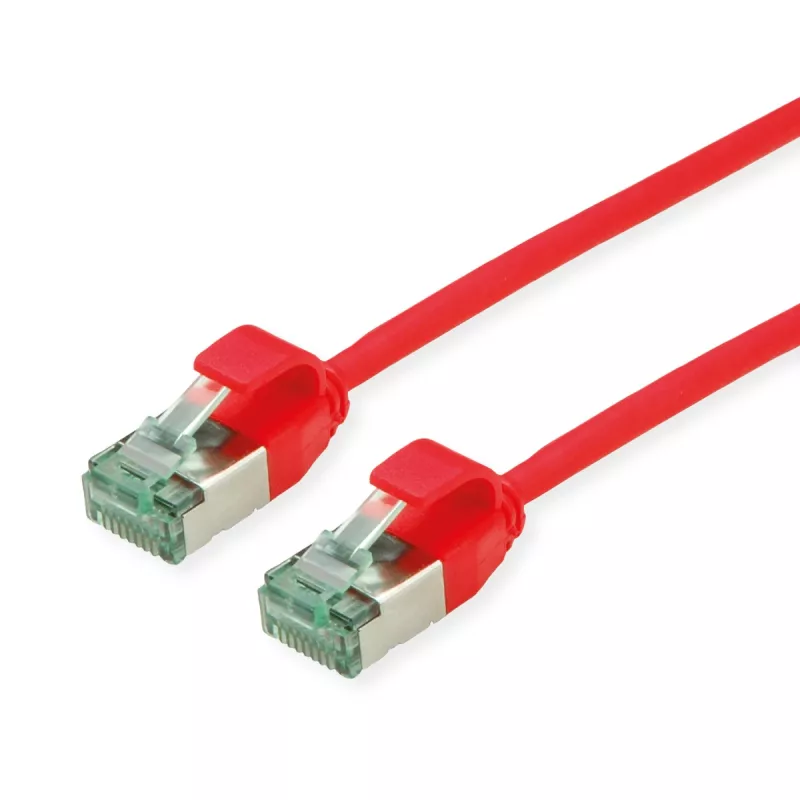

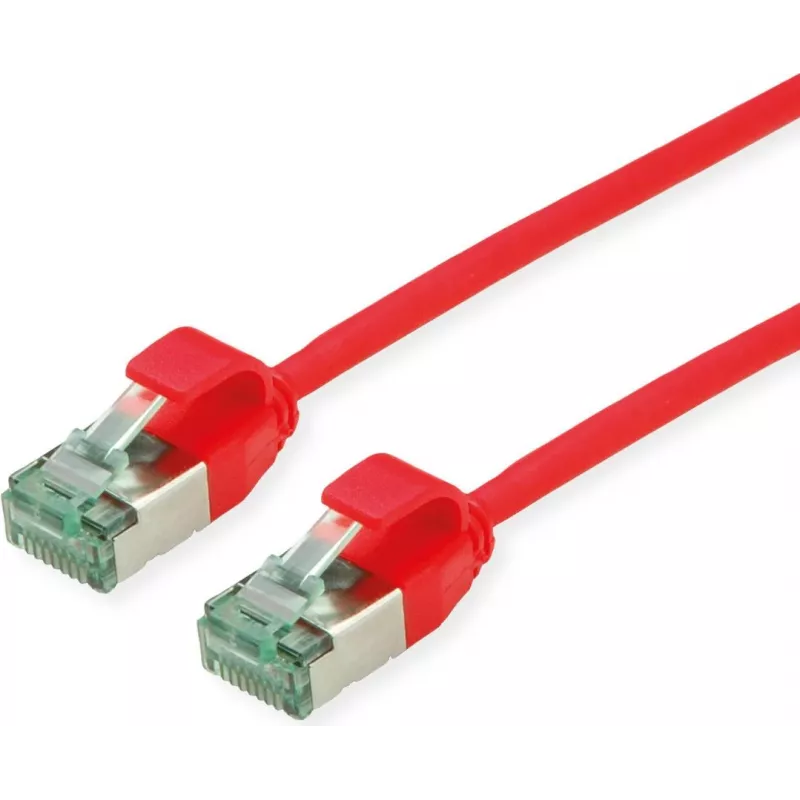

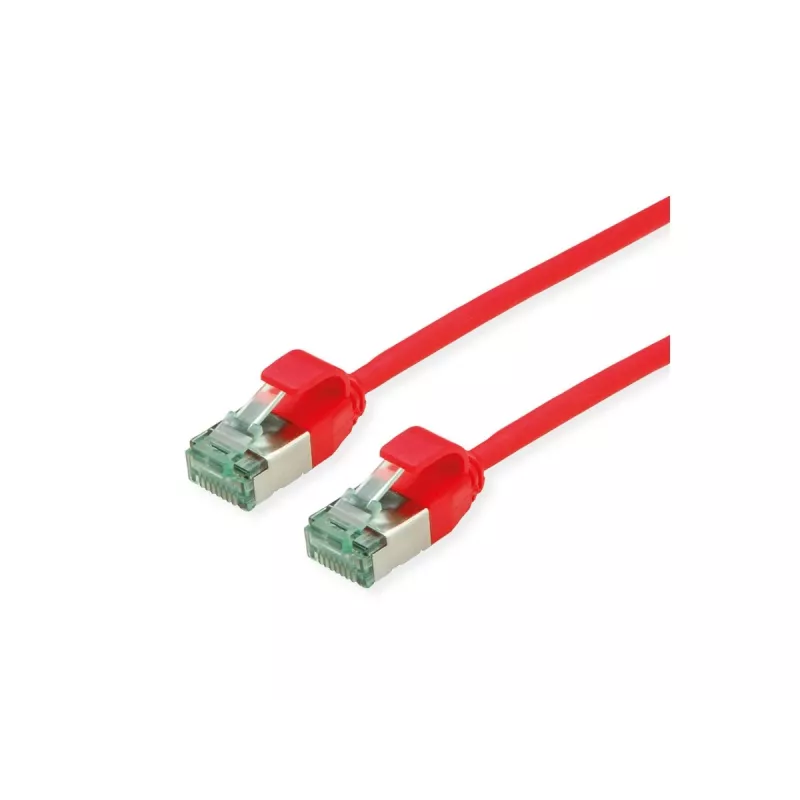

ROLINE RM Cavo patch U/FTP Cat.6A Class EA Slim rosso 2m 21.45.3315

High-density network racks often suffer from cable congestion, making moves and changes difficult. This slim Cat.6A patch cable reduces bulk while maintaining full 10 Gigabit performance, ideal for crowded patch panels and tight cable managers.

Who is it for

Network administrators and installers who need reliable, high-speed connections in space-constrained environments, such as data centers, server rooms, and structured cabling systems.

Main features

• Cat.6A performance with 500 MHz bandwidth for 10GBASE-T
• Slimline design with 28 AWG stranded copper conductors for easy routing
• U/FTP shielding: foil-wrapped twisted pairs (PiMF) reduce alien crosstalk
• LSZH jacket: low smoke and halogen-free for safer indoor use
• Gold-plated RJ45 connectors ensure reliable contact
• Supports PoE, PoE+, and 4PPoE (PoE++) for powered devices

Specifications

• Cable length: 2 m
• Colour: Red
• Cable standard: Cat.6A (Class EA)
• Shielding: U/FTP
• Conductor gauge: AWG 28
• Jacket material: LSZH
• Data transfer rate: 10 Gbps
• PoE support: PoE, PoE+, PoE++

Tips

For best performance, maintain the bend radius and avoid sharp kinks. The slim profile allows higher density in cable managers, but ensure proper strain relief at connectors.
