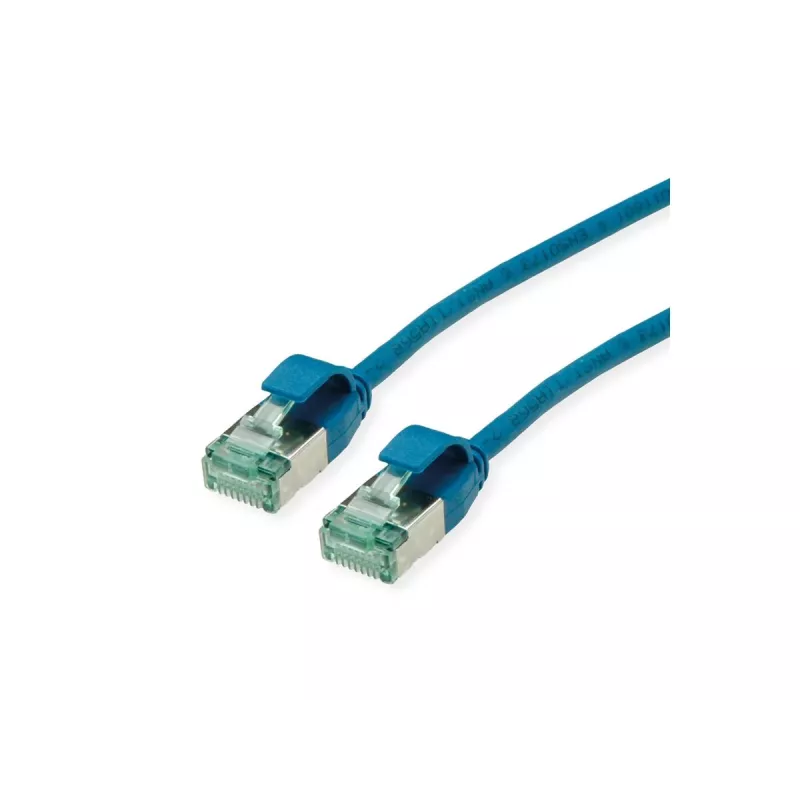

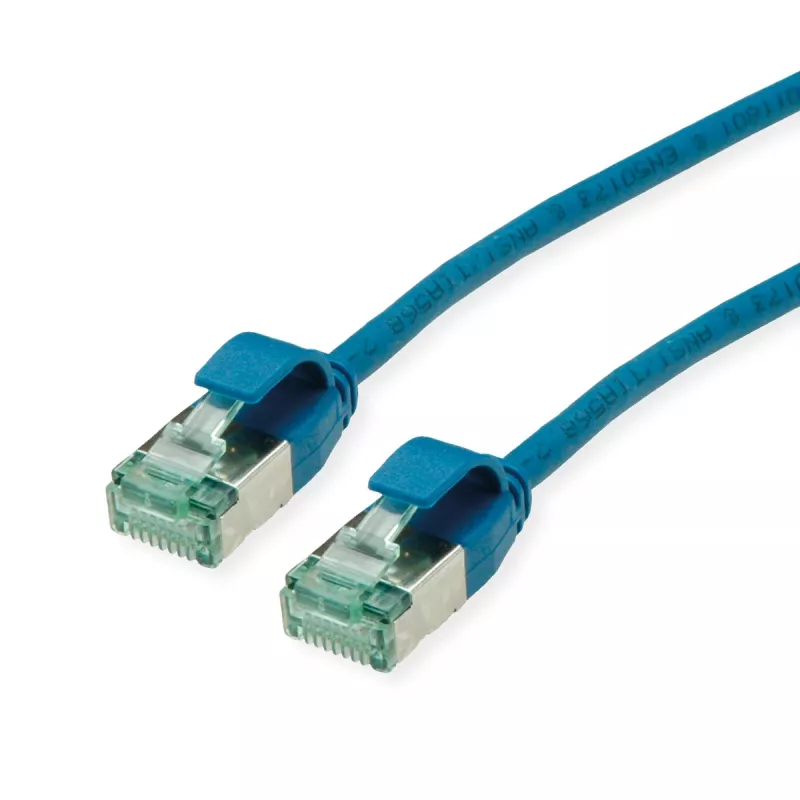

ROLINE RM U/FTP cavo patch Cat.6A/Class EA SLIM blu 5m - FTP (21.45.3347)

Deliver 10 Gigabit Ethernet performance with this slim Cat.6A patch cable, engineered for high-density installations where space is at a premium. The ROLINE RM U/FTP cable features individually foil-shielded pairs (PIMF) to virtually eliminate alien crosstalk, ensuring reliable 500 MHz bandwidth over its 5-meter length.

Overview

This blue patch cable is terminated with snagless, molded RJ45 connectors and uses a 30 AWG copper conductor. The slim design (approx. 3.6 mm outer diameter) reduces clutter and improves airflow in crowded racks. The LSOH jacket is halogen-free, making it suitable for public buildings and areas with strict fire safety requirements.

What stands out

• Cat.6A/Class EA performance with 10GBASE-T support
• U/FTP shielding: each pair wrapped in metal foil (PIMF) for superior noise immunity
• Slim line cable with only 3.6 mm outer diameter for high-density patching
• Halogen-free LSOH jacket for low smoke and zero halogen emission
• Snagless molded boots protect the locking tab during installation

Technical details

• Length: 5 m
• Colour: Blue
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 30
• Shielding: U/FTP (pairs in metal foil)
• Cable design: Slim line
• Jacket material: LSOH (halogen-free)
• Wiring standard: TIA/EIA 568B
• Number of pairs: 4
• Application: Local Area Network (LAN)

Our verdict

A high-performance, space-saving patch cable that delivers Cat.6A speed with excellent shielding and a halogen-free jacket. Ideal for modern data centers and office networks.
