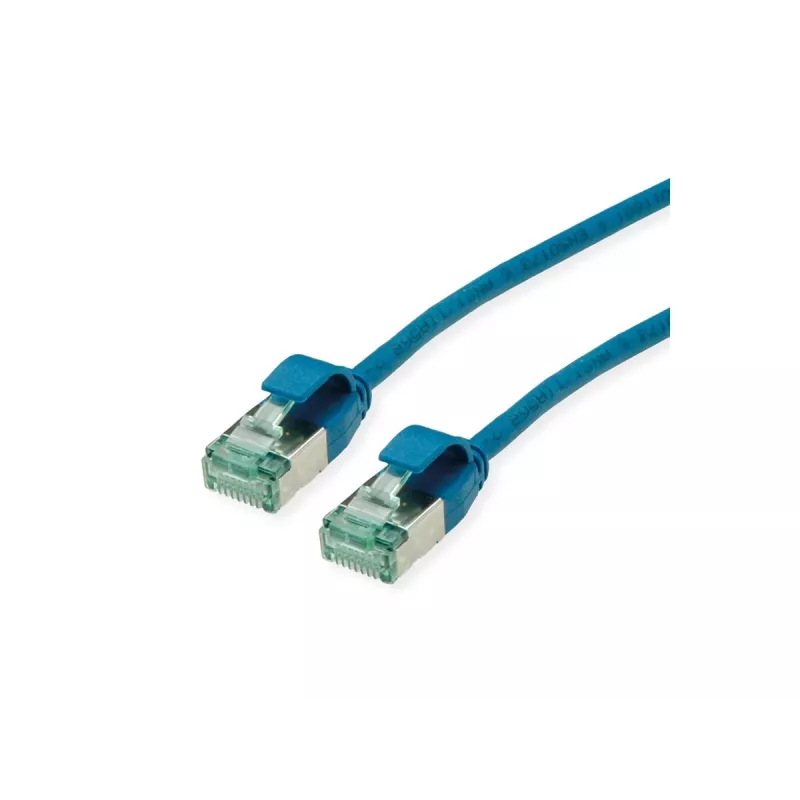

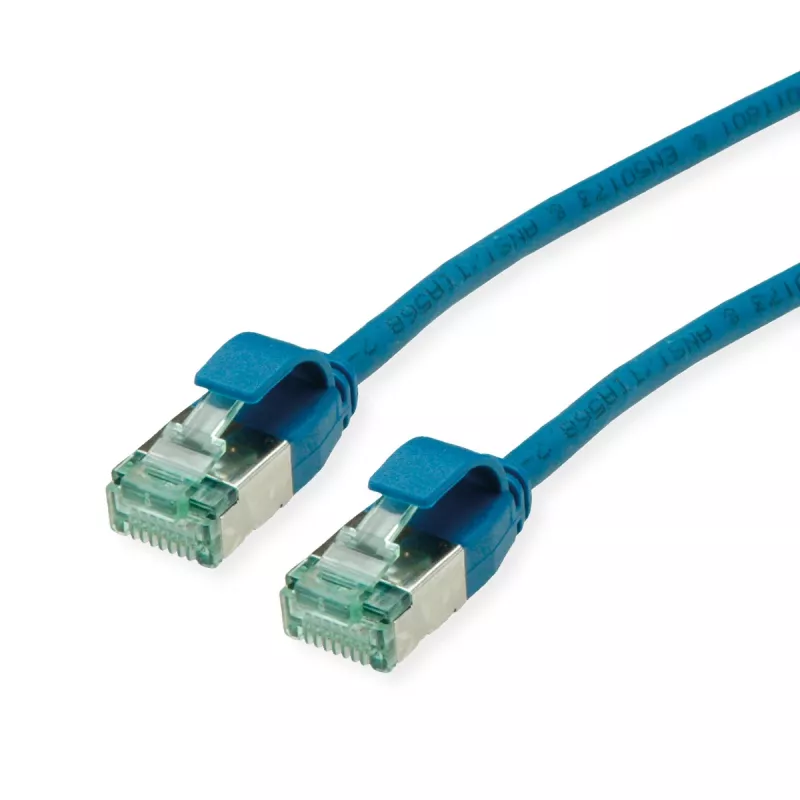

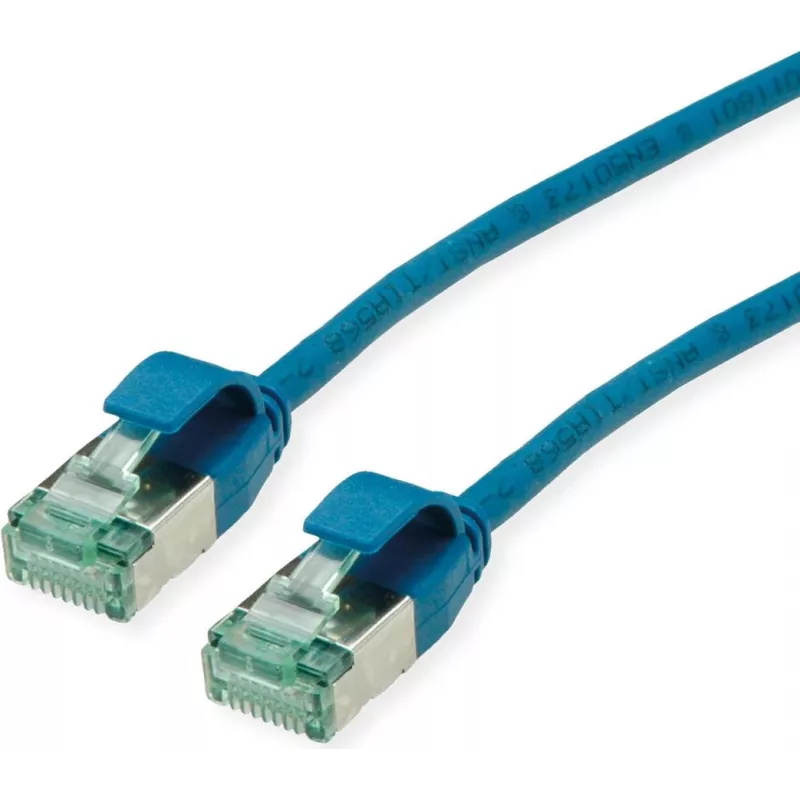

ROLINE RM U/FTP Patchkabel Cat.6A/Class EA SLIM blu 0,15m - FTP (21.45.3340)

In tight patch panels and high-density racks, standard Cat.6A cables are often too thick and stiff, making cable management a struggle. This ROLINE RM U/FTP patch cable solves that with a slim 3.8 mm outer diameter, allowing clean routing in confined spaces while still delivering 10 Gigabit performance.

Who is it for

Network technicians and data center operators who need reliable, high-speed connections in space-constrained environments. Ideal for patching between switches, servers, and patch panels where cable bulk is a concern.

Main features

• Cat.6A / Class EA performance with up to 10 Gbps data transfer rate and 500 MHz bandwidth.
• U/FTP shielding: each twisted pair is individually foiled, protecting against alien crosstalk and EMI.
• Slim Line design with only 3.8 mm outer diameter for easy cable management.
• Snagless boot protects the locking tab during installation and removal.
• Gold-plated contacts ensure reliable, corrosion-resistant connections.
• LSZH jacket is halogen-free, low smoke, and flame retardant for safer indoor use.
• Supports Power over Ethernet (PoE, PoE+, PoE++) for powering devices over the same cable.

Specifications

• Cable length: 0.15 m
• Colour: Blue
• Connector type: RJ45 male to RJ45 male
• Conductor material: Stranded copper
• Conductor gauge: AWG 28
• Wiring standard: TIA/EIA-568B
• Outer diameter: 3.8 mm

Tips

For best performance, avoid bending the cable beyond its minimum bend radius and keep it away from sources of strong electromagnetic interference. The short 0.15 m length is perfect for neat, direct connections between adjacent ports.
