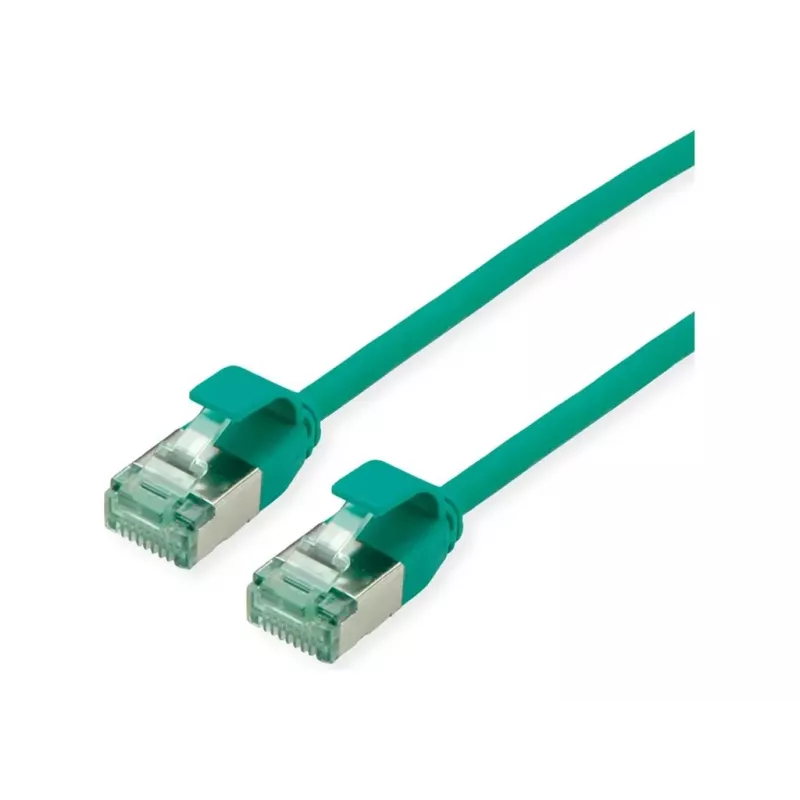

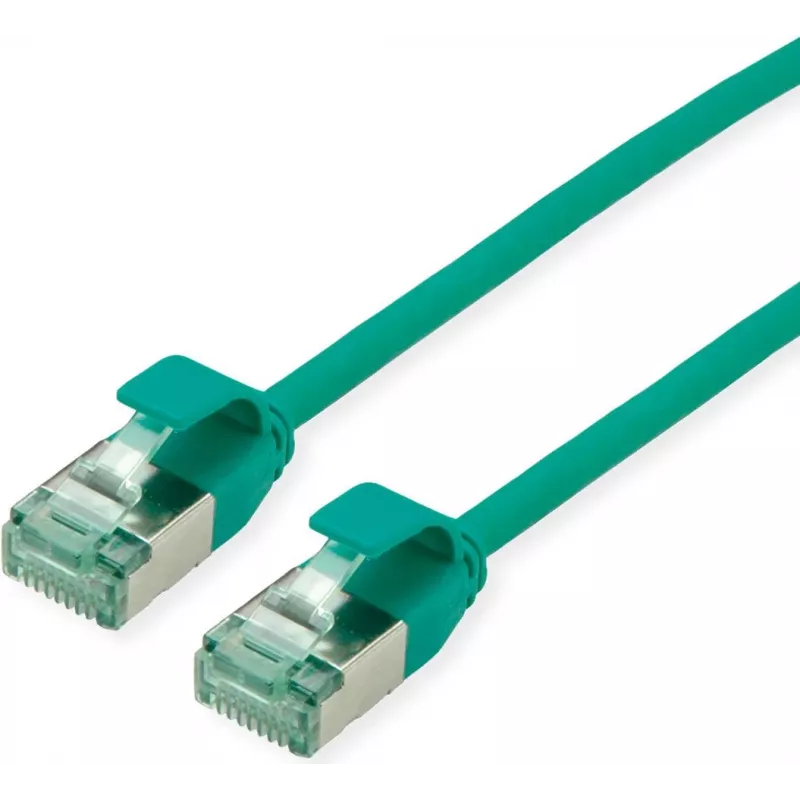

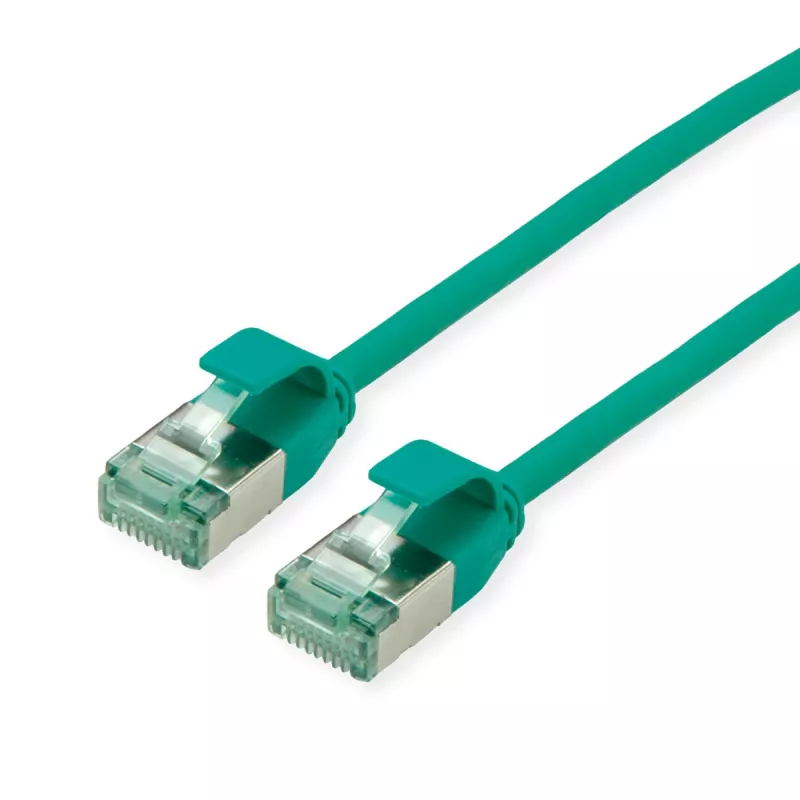

ROLINE RM U/FTP Patchkabel Cat.6A/Class EA Slim verde 1,5m - FTP 21.45.3334

Connect high-density network equipment in data centers and server rooms with this slim Cat.6A patch cable. Its reduced outer diameter saves space in crowded patch panels and cable managers, while full 10 Gigabit Ethernet support ensures reliable performance for bandwidth-intensive applications.

Key specifications

• Cable type: U/FTP Patch Cable
• Category: Cat.6A / Class EA
• Length: 1.5 m
• Colour: Green
• Shielding: Overall Foil Shield (U/FTP)
• Connector type: RJ45 Male to RJ45 Male
• Connector plating: Gold-plated (50µm)
• Conductor material: Copper
• Conductor gauge: AWG 28
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Max bandwidth: 500 MHz
• Max data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Wiring standard: 1:1 according to EIA/TIA 568B
• PoE support: Yes (PoE, PoE+, 4PPoE up to 60W)
• Outer diameter: Approx. 3.6 mm
• Design feature: Slimline, Space-saving
• Standards compliance: ISO/IEC 11801 Class EA, EN 50173-1, TIA/EIA-568-C.2

Why choose it

The slim design reduces cable bulk, improving airflow and making cable management easier in dense installations. LSZH jacket material ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces.

Ideal use cases

• Data centers and server rooms
• High-density patch panels
• 10GBASE-T network connections
• PoE-powered devices up to 60W

Good to know

This cable meets Cat.6A/Class EA standards, supporting frequencies up to 500 MHz and data rates up to 10 Gbps. The U/FTP shielding provides excellent protection against alien crosstalk, ensuring stable performance in noisy environments.
