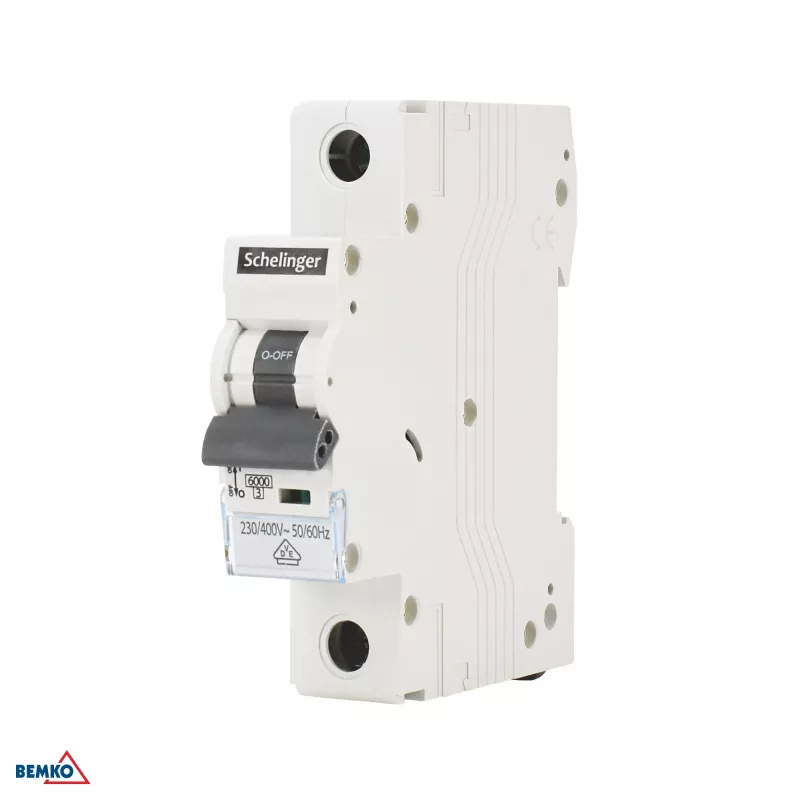

Schelinger A02-G8-1P-C06 interruttore automatico 6kA 1P C 6A

Electricians and panel builders rely on the Schelinger A02-G8-1P-C06 to safeguard lighting and socket circuits in residential and commercial installations. This single-pole MCB trips instantly on short circuits and provides reliable overload protection for 6-amp loads, keeping wiring and connected devices safe.

Key specifications

• Rated current: 6 A
• Tripping curve: C
• Breaking capacity: 6 kA
• Number of poles: 1
• Rated voltage: 230 V AC
• Module width: 1 (18 mm)
• Standards: IEC/EN 60898-1, VDE

Why choose it

The C-curve characteristic handles moderate inrush currents from small motors or lighting banks without nuisance tripping, while still providing fast fault clearance. Its compact 18 mm width saves space on the DIN rail, and screw terminals accept conductors up to 25 mm² for flexible installation. With a mechanical endurance of 20,000 operations, this breaker is built for long service life.

Ideal use cases

• Protection of lighting circuits in homes and offices
• Control circuits with small transformers or contactors
• Distribution boards requiring VDE-certified components
• Retrofit projects where a 6 A C-curve MCB is specified

Good to know

The device features a clear ON/OFF indicator for quick status checks. It is rated for operation from -25°C to +50°C and offers IP20 protection at terminals (IP40 when installed in an enclosure). Each unit is individually packed and ready for immediate installation.
