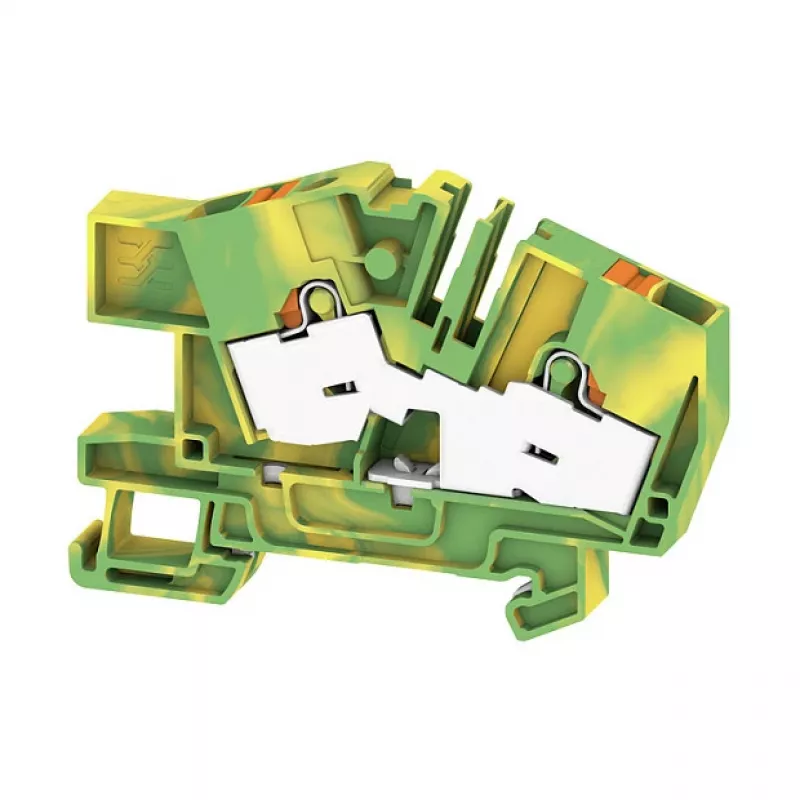

Weidmüller AITB 6 BB 2C PE morsetto di terra per guida DIN, PUSH IN, 6 mm², 41 A, 800 V, verde/giallo

The Weidmüller AITB 6 BB 2C PE is a high-quality protective earth (PE) terminal block designed for reliable grounding and earthing applications. With PUSH IN connection technology, it ensures fast, tool-free wiring and a secure, vibration-resistant connection. Rated for 6 mm² cross-section, 41 A current, and 800 V voltage, this terminal block is ideal for industrial control panels, distribution boards, and machinery where safety and efficiency are paramount.

Advantages

PUSH IN technology reduces installation time by up to 50% compared to screw connections. The compact design saves space on DIN rails, while the green/yellow colour coding clearly identifies the PE function. The Wemid insulation material offers excellent thermal and mechanical properties, ensuring long-term reliability even in harsh environments.

Suitable for

• Protective earth (PE) connections in electrical installations
• Industrial control cabinets and switchgear
• Building automation and power distribution systems
• Machinery and equipment requiring safe grounding

Key specifications

• Connection Technology: PUSH IN
• Function: Protective Earth (PE) Terminal Block
• Number of Levels: 1
• Number of Connections: 3
• Rated Cross-Section (IEC): 6 mm²
• Rated Current (IEC): 41 A
• Rated Voltage (IEC): 800 V
• Wire Size (Solid): 0.5 - 10 mm²
• Wire Size (Flexible): 0.5 - 6 mm²
• Stripping Length: 12 mm
• Insulation Material: Wemid
• Colour: Green/Yellow
• Mounting Type: TS 35 DIN Rail
• Operating Temperature: -60 °C to 130 °C
• Pollution Degree: 3
• Flammability Rating: V-0 (UL94)
• Approvals: cULus, EAC, IECEx, ATEX

Recommendations

For optimal performance, use with Weidmüller marking systems and accessories. Ensure proper stripping length (12 mm) for reliable PUSH IN connection. Suitable for use in Ex e and Ex i applications when combined with appropriate components.
