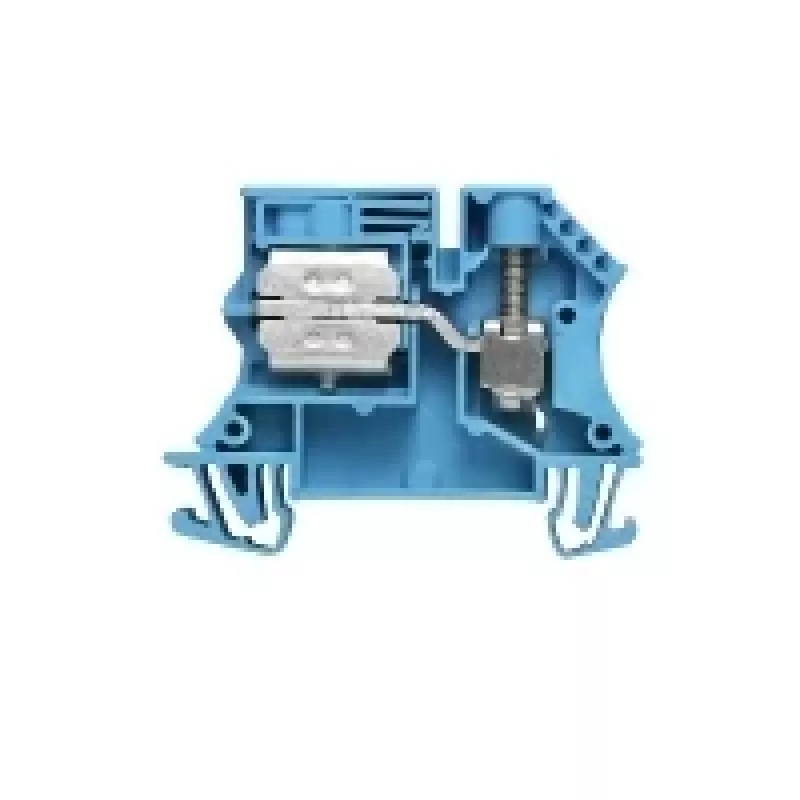

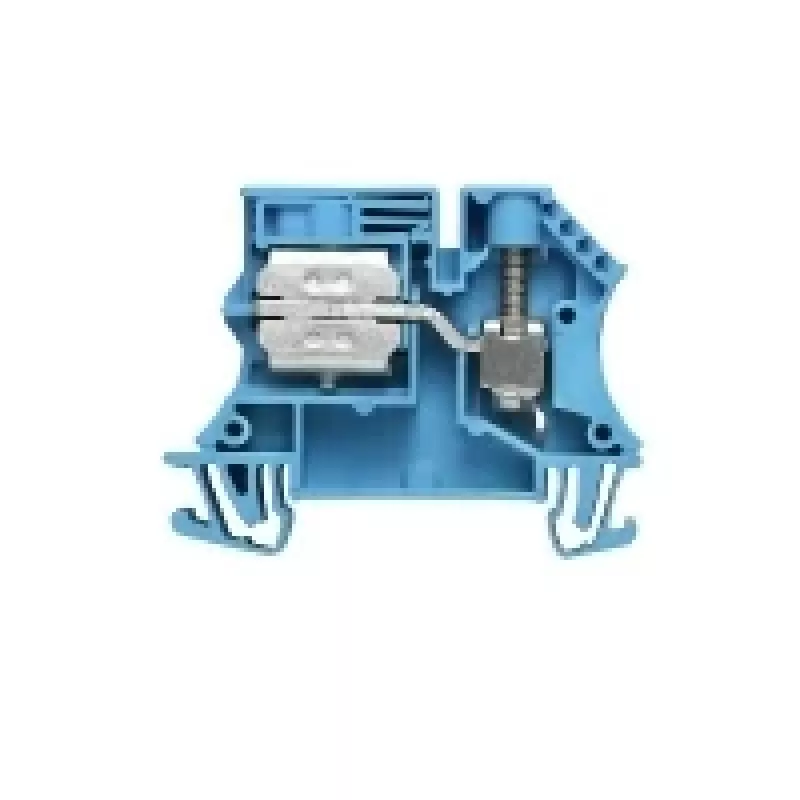

Weidmüller morsetto passante, collegamento a vite, 2,5 mm², 500 V, 24 A, beige scuro, guida DIN

The Weidmüller 1010980000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections in industrial applications. With a rated cross-section of 2.5 mm² and a rated voltage of 500 V, this terminal block is suitable for a wide range of wiring tasks. Its screw connection technology ensures a stable and durable connection, while the dark beige Wemid insulating material provides excellent thermal and mechanical resistance.

Advantages

This terminal block offers easy installation on DIN rail (TS 35) and features a compact design with dimensions of 9.9 mm width, 46.5 mm depth, and 60 mm height. It supports a clamping range from 0.5 mm² to 4 mm² and requires a stripping length of 8 mm. The tightening torque range of 0.4 - 0.8 Nm ensures secure connections without over-tightening.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution units
• Machine wiring

Key specifications

• Terminal Block Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Number of Potentials: 1
• Number of Connections: 4
• Rated Cross-Section: 2.5 mm²
• Rated Voltage: 500 V
• Rated Current: 24 A
• Mounting Type: DIN Rail (TS 35)
• Insulating Material: Wemid
• Colour: Dark Beige
• Flammability Class: UL 94 V-0
• Operating Temperature: -50 °C to 120 °C
• Stripping Length: 8 mm
• Clamping Range (min): 0.5 mm²
• Clamping Range (max): 4 mm²
• Tightening Torque: 0.4 - 0.8 Nm

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. This terminal block is approved by VDE, CSA, cURus, DNV GL, EAC, KEMA, LR, and RINA, guaranteeing compliance with international standards.
