Weidmüller morsetto passante per guida DIN, connessione a vite, 2,5 mm², 800 V, 24 A, beige, 50 pz.

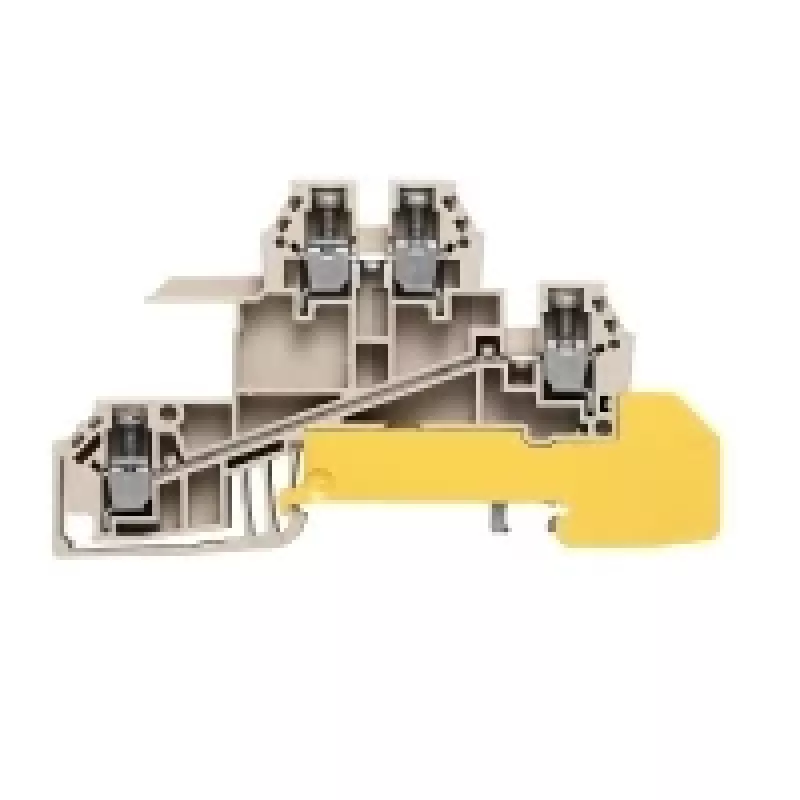

The Weidmüller 1031100000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections. With a rated cross-section of 2.5 mm² and a rated voltage of 800 V, it is suitable for a wide range of industrial applications. The beige insulation body is made from Wemid, a material known for its excellent thermal and mechanical properties.

Advantages

This terminal block offers easy and safe wiring thanks to its screw connection technology. The compact design saves space on the DIN rail, and the wide operating temperature range from -50 °C to 120 °C ensures performance in harsh environments. The UL 94 V-0 flammability rating guarantees high fire safety.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine building

Key specifications

• Type: Feed-Through Terminal Block
• Connection: Screw Connection
• Rated Cross-Section: 2.5 mm² (AWG 12)
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Number of Connections: 2
• Number of Potentials: 1
• Mounting: DIN Rail TS 35
• Insulation Material: Wemid
• Operating Temperature: -50 °C to 120 °C
• Flammability Rating: UL 94 V-0
• Stripping Length: 10 mm
• Tightening Torque: 0.4 - 0.8 Nm
• Pollution Degree: 3
• Approvals: CE, cURus
• Packaging Quantity: 50 Pieces
• Width: 5.1 mm
• Height: 47 mm

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque. Always follow local electrical codes and regulations.
