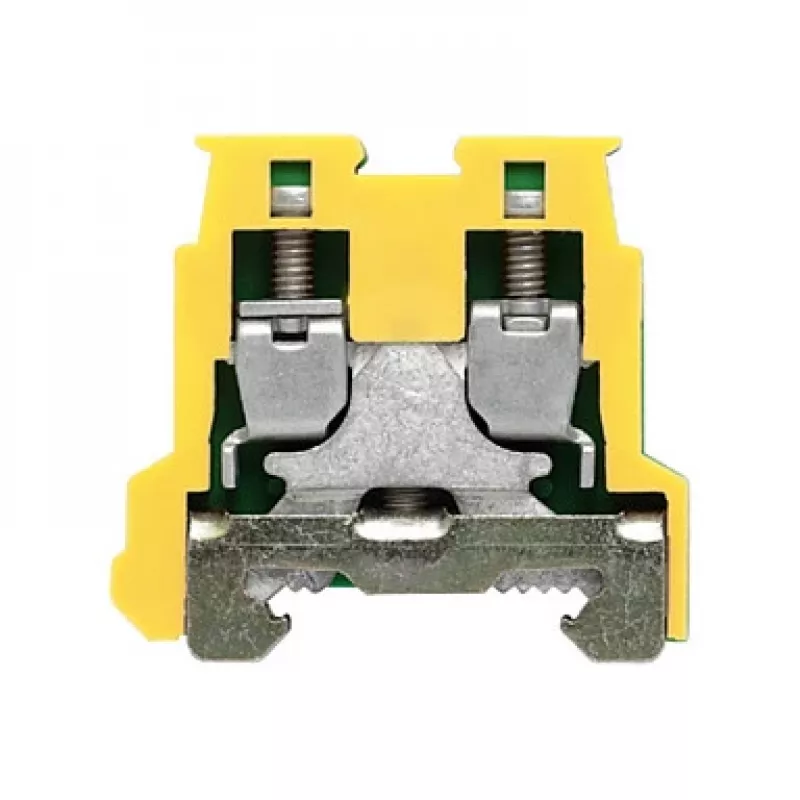

Weidmüller morsetto per conduttore di protezione AKE 2.5, verde/giallo, 2,5 mm², connessione a vite

The Weidmüller AKE 2.5 protective earth (PE) terminal block is a high-quality component designed for reliable grounding and earthing connections in industrial electrical installations. With a nominal cross-section of 2.5 mm² and screw connection technology, it ensures secure and durable wire termination. The green/yellow color coding clearly identifies it as a protective earth terminal, enhancing safety and compliance.

Advantages

This terminal block offers robust construction with a Wemid (PA 66) insulation material, providing excellent thermal and mechanical resistance. It supports a wide operating temperature range from -50 °C to +120 °C, making it suitable for demanding environments. The screw connection allows for easy and reliable wiring, with a tightening torque range of 0.4 - 0.8 Nm. Its compact design saves space on DIN rail TS 35, and the two connections enable straightforward daisy-chaining or multiple conductor termination.

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Power distribution and earthing applications
• Machine and plant engineering

Key specifications

• Terminal block type: Protective Earth (PE)
• Connection technology: Screw connection
• Nominal cross-section: 2.5 mm²
• Wire size solid: 0.5 - 4 mm² (AWG 20 - 12)
• Wire size flexible: 0.5 - 2.5 mm² (AWG 20 - 14)
• Mounting type: DIN Rail TS 35
• Color: Green/Yellow
• Number of connections: 2
• Insulation material: Wemid (PA 66)
• Operating temperature: -50 °C to +120 °C
• Stripping length: 10 mm
• Screwdriver size: 0.6 x 3.5 mm
• Tightening torque: 0.4 - 0.8 Nm
• Rated impulse withstand voltage (Uimp): 6 kV
• Pollution degree: 3
• Approvals: cULus, VDE, EAC, KEMA-KEUR
• Number of potentials: 1 (Earth)
• Height on TS 35x7.5 DIN rail: 47 mm

Recommendations

For optimal performance, use with a suitable screwdriver (0.6 x 3.5 mm) and ensure proper tightening torque. This terminal block is ideal for creating a reliable earth connection in your electrical system. Always follow local electrical codes and standards.
